Specifications
1. Visible Spectrophotometer Optical Spectrum Analyzer Machine2.MIQ:1Pc
3.1year Warranty
4.Standard Export Package
A & E Lab.

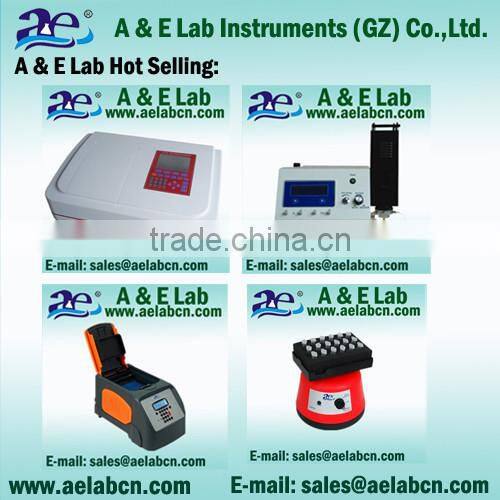

Main Products:
Section 1 --Optical Spectrophotometer :
-Atomic Absorption Spectrometer (AAS),
-Fluorescence Spectrophotometer,
-UV Vis Spectrophotometer,
-Visible Spectrophotometer,
-Flame Photometer,
Section 2--Electrochemical Instruments:
-Whiteness Meter,
-Turbidity Meter,
-Colorimeter,
-Gloss Meter
Section 3--Physical-optical Instruments:
-Tintometer,
-Automatic Polarimeter,
-Auto Melting Point Apparatus,
-Automatic / Abbe Refractometer,
-PH/DDS/TDS Meter
Section 4--Laboratory Facilities :
-shaker,
-Hotplate,
-Mixer,
-Rocker,
-PCR,
Section 5--Constant Temp Instruments
-Thermostatic/ Vacuum Dry Oven.
- Incubator.
-Drug Stability Test Chamber.
.etc.

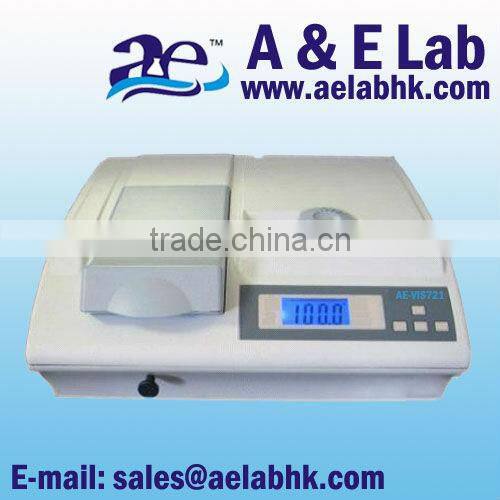

Visible Spectrophotometer Optical Spectrum Analyzer Machine
Model:AE-VIS722N
Characteristics:
1. Adoption of new single-chip microcomputer system, completely functions.
2. 4 Digital LCD display, widely measurement range, higher accuracy.
3. Thin-film-style keyboard, dust-proof & waterproof skin and easy to clean.
4. To be avoid energy plummeting after reflector was burnt, it has adopt lens to gathering light.
5. With a professional lamb holder so that can not be replaced the optical circuit of halogen tungsten lamb.
6. Automatic calibration 0%T, 100%T & absorbency 0A.
Technical Specifications:
Model |
AE-VIS721 |
AE-VIS722N |
Optical System |
Single beam 1200 diffraction grating |
|
Wavelength Range |
340nm-1000nm |
|
Wavelength Accuracy |
±1nm |
|
Wavelength Repeatability |
0.5nm |
|
Spectrum Bandwidth |
4nm |
|
Photometric Range |
0-100%T, 0-3.000A |
|
Transmittance Accuracy |
±0.5%T |
|
Transmittance Repeatability |
0.2%T |
|
Reading Range |
0-9999 |
|
Stray Light |
≤0.2%T (360nm, JB400) |
|
Light Source |
Halogen Tungsten Lamp (20W/12V) |
|
Power Supply |
AC90-264V |
|
Output |
--- --- |
RS232 interface. |
Packing Size & Weight |
510×490×280mm & 6.5kg |
|
