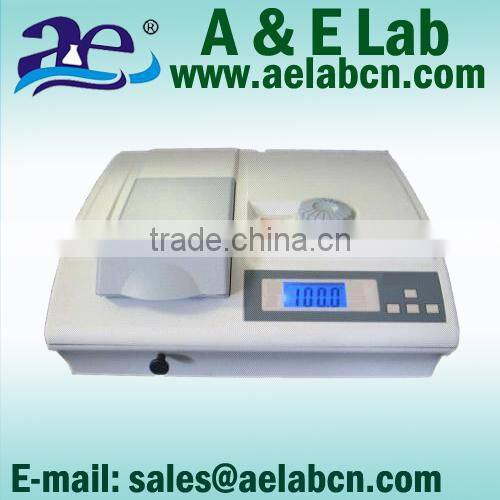

722 Visible Spectrophotometer,RS232 Interface

A & E Lab Instruments (Guangzhou) Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

AE-VIS722N

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/Shanghai/Beijing China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name A

Model Number AE-VIS722N

Size 510*490*280mm

Weight 6.5kg

Wavelength Range 340nm-1000nm

Measurement Range 340nm-1000nm

UV VIS Spectrophotometer

A & E Lab

A & E Lab Hot Selling includes: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer,

PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,

See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!

Introduction:

VIS721/722 are basic laboratory instruments which based on the principle of spectrophotometery.

It can be measured the transmittance, absorbency, concentration factor & concentration direct reading of samples within 340-1000nm wavelength ranges.

Meanwhile, it can be easily connected printer or PC software. It can be widely applied to clinical sanitation,

biochemistry.

Characteristics:

v Adoption of new single-chip microcomputer system, completely functions.

v 4 Digital LCD display, widely measurement range, higher accuracy.

v Thin-film-style keyboard, dust-proof & waterproof skin and easy to clean.

v To be avoid energy plummeting after reflector was burnt, it has adopt lens to gathering light.

v With a professional lamb holder so that can not be replaced the optical circuit of halogen tungsten lamb.

v Automatic calibration 0%T, 100%T & absorbency 0A.

Technical Specifications:

Model	721	722N
Optical System	Single beam 1200 diffraction grating
Wavelength Range	340nm-1000nm
Wavelength Accuracy	±1nm
Wavelength Repeatability	0.5nm
Spectrum Bandwidth	4nm
Photometric Range	0-100%T, 0-3.000A
Transmittance Accuracy	±0.5%T
Transmittance Repeatability	0.2%T
Reading Range	0-9999
Stray Light	≤0.2%T (360nm, JB400)
Light Source	Halogen Tungsten Lamp (20W/12V)
Power Supply	AC90-264V
Output	--- ---	RS232 interface.
Packing Size & Weight	510×490×280mm & 6.5kg
