Home > Products > Optical Spectrum Instruments > Wavelength Range:200~850nm NANO Drop Spectrophotometer

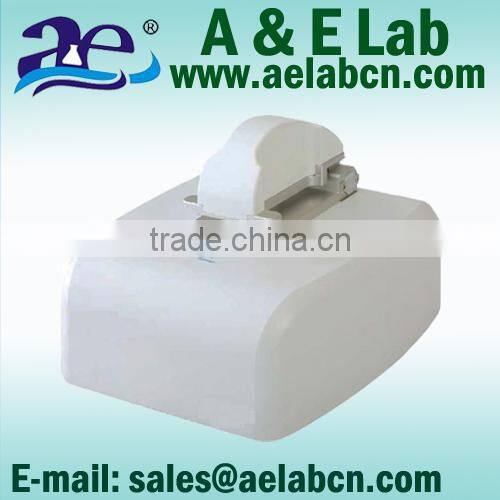

Wavelength Range:200~850nm NANO Drop Spectrophotometer
- Guangzhou Shanghai Beijing Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | A & E Lab | Model Number | AE-Nano100 | |
| Size | 200*262*154nm | Weight | 2.5kg | |
| Wavelength Range | 200~850nm | Measurement Range | 200~850nm |
Product Description
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater,Shaker Incubator,Melting Point Device, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, etc.
Welcome to inquire us!
nano drop spectrophotometer
AE-NANO100 is a Micro-volume UV Vis Spectrophotometer designed for nucleic acid measurements.
It can accurately measure nucleic acid samples, and is no need to dilute high-concentration samples.
Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, AE-NANO100 can
automatically complete the measurement within 5 seconds.
Features:
*Direct, easy measurements in less than 5 seconds: just pipette & wipe.
*Full spectral output.
*Measures DNA, RNA (A260) and Protein (A280),concentrations and sample purity (260/280ratio).
*Large concentration range without dilutions.
*User-friendly software that includes Custom Methods and data export capabilities.
*Low-cost operation--no plates or other consumables
Detailed Product Description:
1. Wavelength range: 200~850nm;
2.Delivery Time:Within 10 days after received the payment;
3.With English User's Manual,English Control Panel;
4.Warranty:1 year.
Technical Specifications:
Model | AE-Nano100 |
Wavelength Range | 200~850 nm |
Minimum Sample Size | 0.5~2.0ul |
Path Length | 0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
Light Source | Xenon flash lamp |
Detector Type | 3864-element linear silicon CCD array |
Wavelength Accuracy | 1nm |
Spectral Resolution | ≤ 3 nm (FWHM at Hg 546 nm) |
Absorbance Precision | 0.003 Abs |
Absorbance Accuracy | 1% (at 0.76 at 350 nm) |
Absorbance Range | 0.02 - 75 (10 mm equivalent) |
Measurement Time | < 5s |
Dimensions (W x D x H)mm | 200 x 262 x 154 |
Weight | 2.5kg |
Sample Pedestal Material | Aluminum alloy and Quartz fiber |
Operating Voltage | 12V DC |
Operating Power Consumption | 12 - 18 W |
Standby Power Consumption | 5W |
Software Compatibility | Windows 7, Windows XP |
Packing List
AE-Nano100 Packing List | |
Description | Quantity |
Micro-Spectrophotometer | 1Unit |
Setup CD | 1PC |
Adapter | 1PC |
USB cable | 1PC |
Operations manual | 1PC |
Certification | 1PC |
