Specifications
1. Micro-Spectrometer (Nano spectrophotometer Nanodrop)2.Warranty:1 year.
3.Certificate: ISO.
4.MOQ: 1 pc
A & E Lab.
Main Products:
Atomic Absorption Spectrometer (AAS), Fluorescence Spectrophotometer,
UV Vis Spectrophotometer, Visible Spectrophotometer, Flame Photometer,
Whiteness Meter, Turbidity Meter,Colorimeter, Gloss Meter, Tintometer, Automatic Polarimeter,
Auto Melting Point Apparatus, Automatic Refractometer, Abbe Refractometer,
PH/DDS/TDS Meter, Incubator, shaker, Hotplate, Mixer, PCR, Oven, etc.

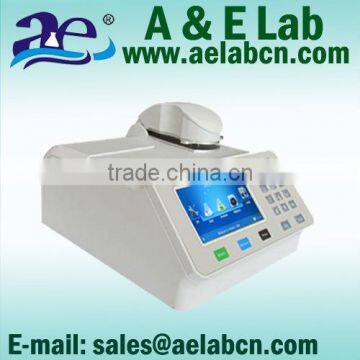

Micro-Spectrometer (Nano spectrophotometer Nanodrop )
Model:AE-Nano 200
Introduction:
Nano200 is a Nucleic Acid Analyzer designed for analyzing the concentration and pure of Nucleic Acid (DNA/RNA).
Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm,
Nano-200 can automatically complete the measurement within 5 seconds.
Features:
² Direct, easy measurements in less than 5 seconds.
² Require only 0.5~2ul samples.
² No cells or cuvettes and no warm up.
² Optional data output via built-in printer, SD-RAM Card, USB memory.
² Touch screen and panel operation, without computer.
² No dilutions for samples.
Technical Specifications:
Model |
NANO-200 |
Wavelength Range |
230nm, 260nm, 280nm |
Minimum Sample Size |
0.5~2.0ul |
Path Length |
0.2mm (For high concentration measurement) 1.0mm (For ordinary) |
Light Source |
Xenon flash lamp |
Absorbance Precision |
0.003 Abs |
Absorbance Range |
0.02 - 80 (10 mm equivalent) |
Detects Nucleic acid up to |
10~5000ng/ul (dsDNA) |
Detects Protein up to |
0.1mg/ml~100mg/ml |
Measurement Time |
< 5s |
Dimensions (W x D x H)mm |
210 x 280 x 166 |
Sample Pedestal Material |
Aluminum alloy and Quartz fiber |
Operating Voltage |
12V DC |
Operating Power Consumption |
12 - 18 W |
