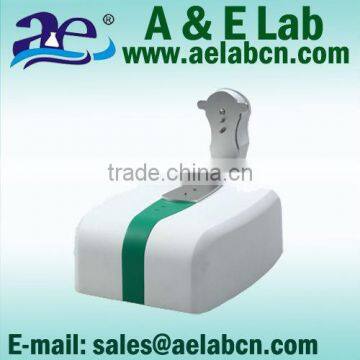

Micro-Spectrophotometer
Introduction:
Nano-100 is a Micro-Spectrophotometer designed for nucleic acid measurements. It can accurately measure nucleic acid samples, and is no need to dilute high-concentration samples. Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, Nano-100 can automatically complete the measurement within 5 seconds.
Features:
² Direct, easy measurements in less than 5 seconds:
just pipette & wipe.
² Full spectral output.
² Measures DNA, RNA (A260) and Protein (A280),
concentrations and sample purity (260/280ratio).
² Large concentration range without dilutions.
² User-friendly software that includes Custom Methods and data export capabilities.
² Low-cost operation--no plates or other consumables
Technical Specifications:
Model |
NANO-100 |
Wavelength Range |
200~850 nm |
Minimum Sample Size |
0.5~2.0ul |
Path Length |
0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
Light Source |
Xenon flash lamp |
Detector Type |
3864-element linear silicon CCD array |
Wavelength Accuracy |
1nm |
Spectral Resolution |
≤ 3 nm (FWHM at Hg 546 nm) |
Absorbance Precision |
0.003 Abs |
Absorbance Accuracy |
1% (at 0.76 at 350 nm) |
Absorbance Range |
0.02 - 75 (10 mm equivalent) |
Measurement Time |
< 5s |
Dimensions (W x D x H)mm |
200 x 262 x 154 |
Weight |
2.5kg |
Sample Pedestal Material |
Aluminum alloy and Quartz fiber |
Operating Voltage |
12V DC |
Operating Power Consumption |
12 - 18 W |
Standby Power Consumption |
5W |
Software Compatibility |
Windows 7, Windows XP |
