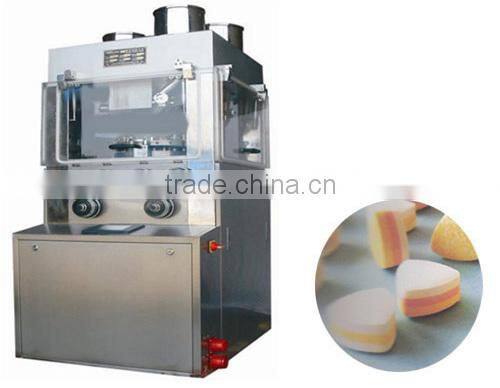

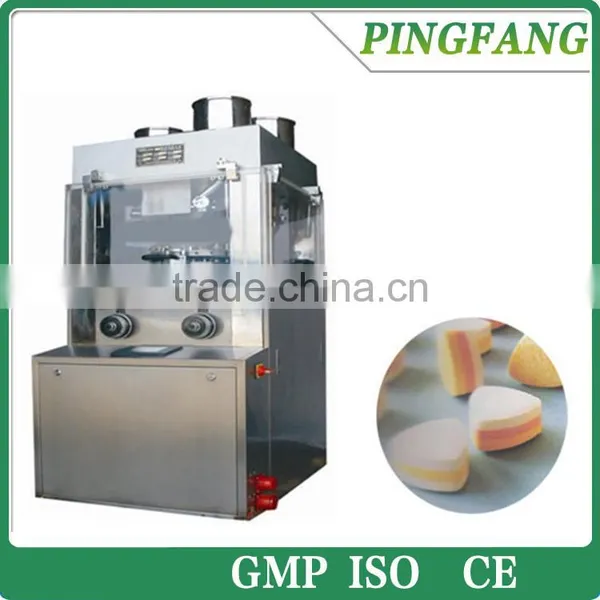

Help CenterZPW Series Triple-layers and Multifunctional Rotary Tablet Press Machinery for Pill and Candy
Related Products
-
Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression MachineNegotiableMOQ: 1 Unit -
ZPY120 High Output Rotary Type Tablet Machine, Press Tablet EquipmentNegotiableMOQ: 1 Unit
-
High Performance ZP-5A 7A 9A Mini Rotary Tablet Press Machine for Making Sugar (Enhanced)NegotiableMOQ: 1 Unit
-
Factory Supply ZP-17B Fully Automatic Rotary Salt Tablet Press Machine Price for SaleNegotiableMOQ: 1 Unit
-
High Performance ZPW-23 Rotary Pill Press Machinery for Big TabletNegotiableMOQ: 1 Unit
Factory Supplier ZPSH37A Two Colors Rotary Tablet Press for Annular Candy
Application
ZPW Multi-functional Rotary Tablet Press has a wide scope of application. It is applicable not only to the pharmaceutical and foodstuff industry but also the chemical, ceramic, electronic and battery industry for pressing the various kinds of granular materials into tablets.
The functions of the machine are complete. Besides producing the round shape tablets, it can also produce irregular, ring shaped or double engraved tablets. It can not only produce single layer tablets but also double layers or even triple-layers tablets to satisfy the different demands of the customers.
Summary
The machine is compatible to the GMP requirements, with the separation of the tablet -pressing compartment from the driving mechanisms, to prevent the contamination of the pharmaceutical. All the parts that will be in contact with the pharmaceutical materials are made of stainless steel or zinc plated in the surface, nontoxic and abrasion and corrosion resistant.
With the main machine and the operational control panel separated, the Model ZPW Multi-functional Rotary Tablet Press is convenient in operation and maintenance.
By adopting PLC programmable controller, the main functions, production data and malfunctions of the tablet pressing are monitored and controlled. By adopting inverter for the speed adjustment, the adjustment of speed is step-less and reliable with a wide range. Meanwhile, motor with frequency inverter has been selected, to ensure the constant power and speed adjustment with consistent torque, meeting the requirement on the torque within the stipulated range for the rotary speed of the press.
Type |
ZPW25 |
ZPW31 |
ZPW37 |
Dies |
25sets |
31sets |
37sets |
Max. Pressure |
80KN |
80KN |
80KN |
Max. Dia. of Tablet |
25mm |
18mm |
13mm |
Max. Depth of Fill |
18mm |
18mm |
18mm |
Max. Turret Speed |
46r/min |
46r/min |
46r/min |
|
Production Capacity: single-layer double-layer |
138000pc/h 65000pc/h |
171000pc/h 80000pc/h |
204000pc/h 100000pc/h |
Motor |
4KW |
4KW |
4KW |
