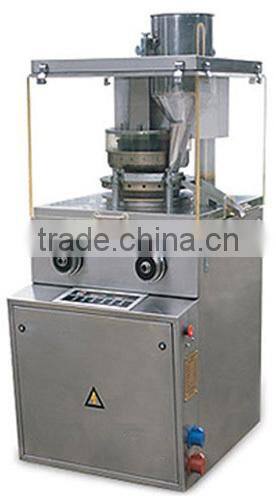

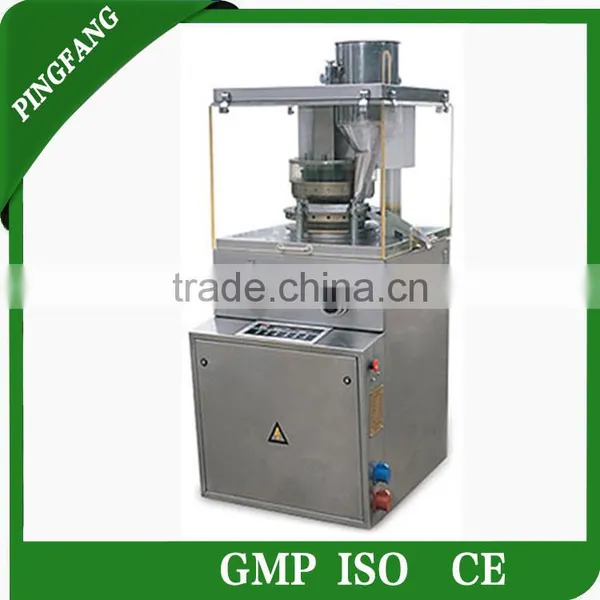

ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment

ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment photo-1
ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment photo-2
ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment photo-3
ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment photo-4
ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment photo-5
ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF Tablet Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name PF Tablet Machine
Model Number ZPY120 Tablet Machine
Type Rotary Tablet Press
Production Capacity 38400pcs/h
Max. Pressure(KN) 80KN
Max. Tablet Thickness(mm) 10mm
Max. Tablet Diameter(mm) 25mm
Voltage 380V
Power(W) 4KW
Weight 1200kg
Dimension(L*W*H) 840*1015*1720
Certification GMP CE
After-sales Service Provided Engineers available to service machinery overseas

ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment

Product Description

Application:

The machine is a single-press type, continuously automatic rotary tablet press for pressing various granular materials into tablets. It is mainly used in pharmaceutical industry of Chinese and western to produce large tablets, simultaneity adapted to chemical, food, and electronic industry.

Summary:

1. The machine is compatible with the GMP requirement.

2.  The mechanism of the machine belongs to single-press type. It has a pre-pressing track and the pressure rollers have bearing so that it has a large the pressure. It is stable in operation.

3.   The punch and dies meet the international IPT standard. It can produce large tablets.

4.   The tablet-pressing room is easy to clean and maintain.

5.   An overload protection unit is including in the system to avoid the damage of the apparatus.

6.   It is used advanced machatronics unit and touch keyboard and screen display, the speed adjustment of the driver is controlled by the frequency conversion device, and it is used the     concentrated lubricating system.

7.   The transmission system is located inside the worm-gear box under the main body, and it is fully lubricated so that the polluted-ness and the abrasion are greatly reduced.

8.   With the appliance of utility model patent, the ways to fix the lower track and lower pressing wheels are especial, so that be remounted conveniently and fast.

Technical parameters



Model

ZPY120

Dies(sets)

20

Die standard

IPT

Max. pressure(Kn)

80

Max. dia. Of tablet (mm)

25

Max. depth of fill(mm)

18

Max. thickness of tablet(mm)

10

Turret speed(r/min)

5-32

Max. production capacity (tablets/hour)

38,400

Motor(kW)

4

Overall size(mm)

840*1015*1720

Net Weight(kg)

1200



Machine Show

                                        ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment

ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment

Samples

ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment

Packaging& Shipping

  ZPY120 High Output Rotary Type Tablet Machine, Press Tablet Equipment
