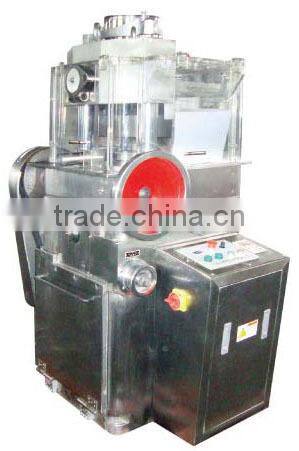

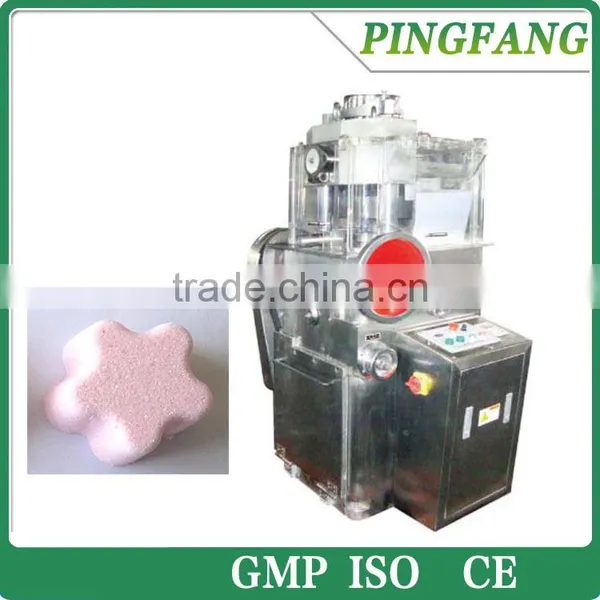

Factory Supply ZP-17B Fully Automatic Rotary Salt Tablet Press Machine Price for Sale
1. Main application

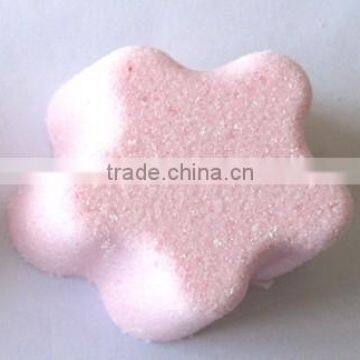

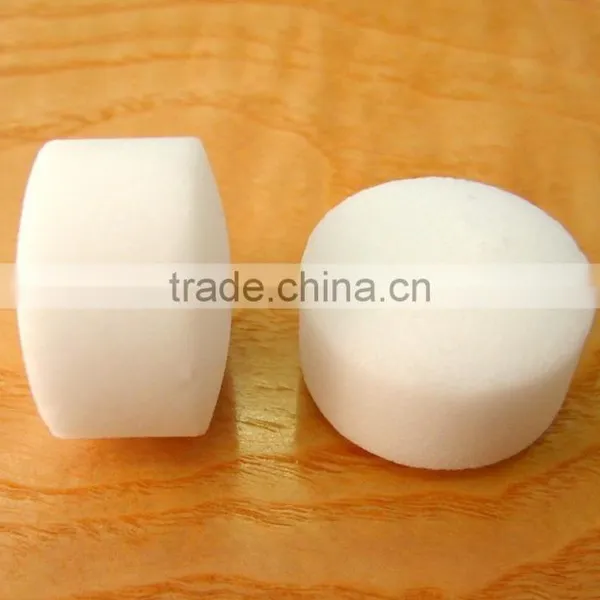

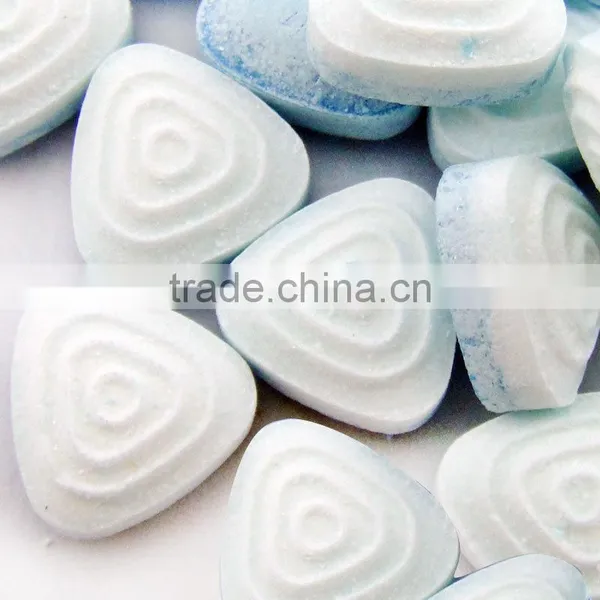

ZP17B tablet press is the latest research and design one machine. The machine is used for making the powder into tablet. This machine could make different shape and size tablet. Such as the round tablet, oval tablet, ring tablet… This machine mainly used in pharmaceutical industry, Food and chemical industry.
2. Features
A. Frequency conversion used in the machine. The speed could be adjusted
B. Machine with big pressure, work stability
C. Transmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding
D. Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be full opened, machine easy to clean and maintenance. All monitors and operating components work well together
E. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
Dies(sets) | 17 |
ure(Kn) | 120 |
Max.Dia.of Tablet(mm) | 36 |
Max.Depth of fill(mm) | 18-30 |
Max.Thickness of largest Tablet(mm) | 8-15 |
Turret speed(r/min) | 10-25 |
Length of up and down punch pole(mm) | 40mm |
Length of up punch pole(mm) | 175mm |
Length of down punch pole(mm) | 180mm |
Diameter of middle mould(mm) | 52mm |
Production capacity(pcs/h) | 25500 |
Motor power(kW) | 7.5kw |
Overall size(mm) | 900*800*1640 |
Weight(kg) | 1500 |
