Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine

Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine photo-1
Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine photo-2
Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine photo-3
Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine photo-4
Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine photo-5
Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF Tablet Compression Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name PF Tablet Compression Machine
Model Number ZPY100 Series Tablet Compression Machine
Type Rotary Tablet Press
Production Capacity 97000-64000pcs/h
Max. Pressure(KN) 80KN
Max. Tablet Thickness(mm) 9mm
Max. Tablet Diameter(mm) 13-22mm
Voltage 380V
Power(W) 4KW
Weight 1400kg
Dimension(L*W*H) 930*950*1800mm
Certification GMP CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Low Cost High Performance ZPY100 Series Rotary Type Tablet Compression Machine

Product Description

Application

    ZPY100 Rotary Tablet Tablet Compression Machine is a serial product widely used for pharmaceutical, food industry to produce all kinds round tablets and irregular tablets.



Summary

1. This series meets the GMP standard. Pressing chamber is utterly separated with gear system. There is no any paint in the chamber. The parts contacting with tablets are made of stainless steel or the surface of those parts are specially handled. The chamber is also sealed with or organic glass to prevent pollution.

2. The gear system, the track and the major function parts are fully lubricated by the continual and concentrated lubrication device of the ZPY100.

3. It is very convenient to observe, operate the pressure, thickness, feeding, speed adjustable hand wheels and all kinds of buttons, indicating lights and indicators are at the same side.

4. The design of ZPY100 series is reasonable. Most of parts are universal in the series. So it’s easy to manage and change the spare. The punches and dies meet the IPT standard.

Technical parameters



Model

ZPY136

ZPY129

ZPY124

Dies

36

29

24

Max. Pressure

80KN

80KN

80KN

Max. Dia. of Tablet

13mm

18mm

22mm

Max. Depth of Fill

18mm

18mm

18mm

Production Capacity

97,000pcs/h

78,000pcs/h

64,000pcs/h

Motor (kw0)

4kw

High (mm)

With Hopper Material 1800

Without Hopper Material 1580

Cover Space (mm)

930*950*1800mm

Net Weight

1400kg

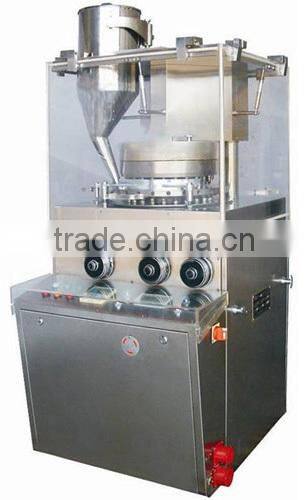

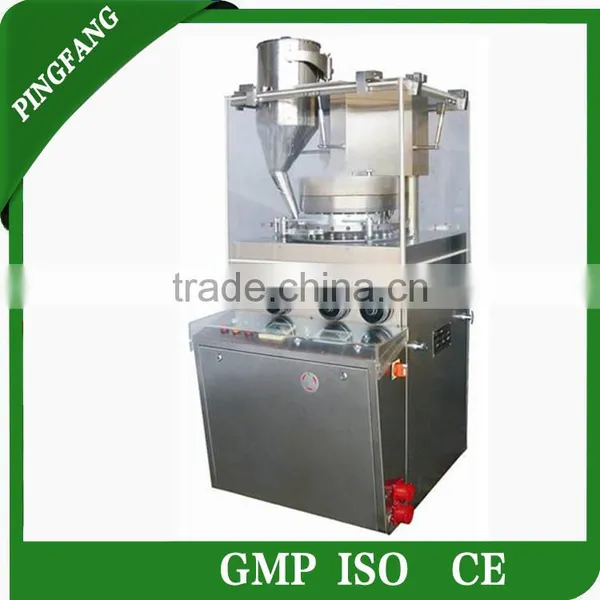

Machine Show
