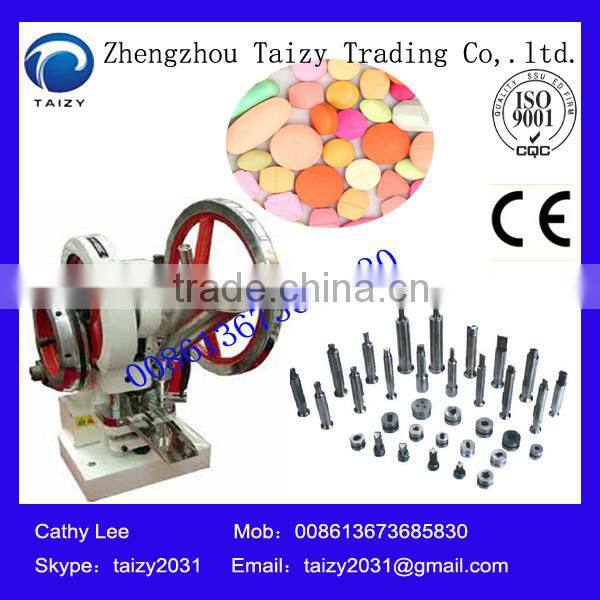

tablet pill press machine
Contact information
Contact:Cathy
Mobile/Whatsapp/Wechat:+86 13673629307
Skype:taizy2031
QQ:2419066501
Tel:0086-371-86660712
Fax:0086-371-86660713
Introduction of tablet pill press machine
This great little machine is designed for pressing tablets from various granular materials for use in pharmaceuticals,various chemicals,food products and a host of other uses.
Typically it can be found in hospitals,science research institutions and is used for trial manufacturing in labs to produce small to medium production amounts of different kinds of tablets. Up to 6000 tablets per hour can be achieved.
It features a small desktop type press, a powerful electric motor and can also be hand operated. The depth of the filling material, tablet pressure and thickness of the tablets is easily adjusted. This machine comes complete with 1 set of punch and die included.
Features of tablet pill press machine
1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP
standard.

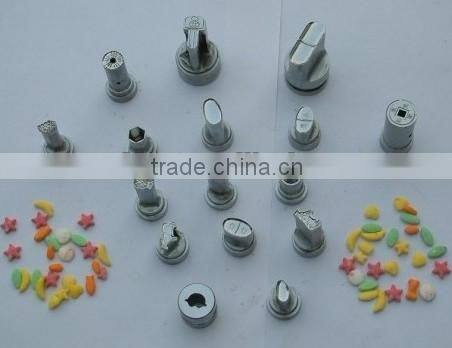

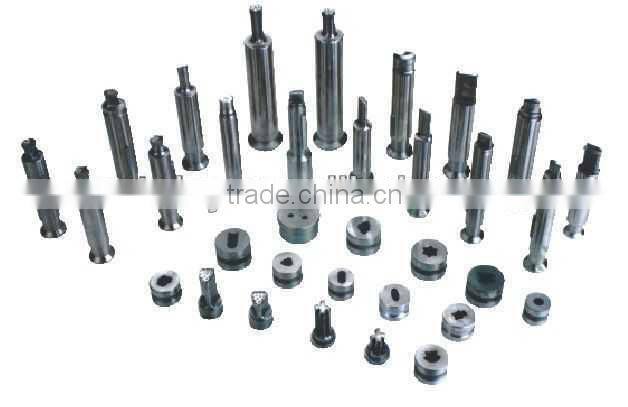

2. Only a pair of punch and die can be erected on this machine, both filling depth
of materials and thickness of tablet are adjustable.
3. Press both round and irregular tablets.
4. Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase
5. High precision of filling, lower consumption of materials.
6. Small volume, light weight, works smoothly and low noise.
Advantage of tablet pill press machine
1.Able to make powder and granular material compressed into a circular shaped tablet
2.Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units
3.Larger Diameter Tablets up to 12mm
4.Presses both Round and Irregular Tablets
5.Larger Motor and Compression Force
6.Adaptable,easy to use,easy maintenance,small size,light weight
7.It will run for hours continuously producing identical tablets time after time
8.Friendly Support and Prompt Services
9.No special forms to fill out
10.Up to 6000 tablets per hour can be achieved,using a maximum presser of 15KN
11.A powerful electric motor and can also be hand operated
How to use ?
1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First, demolition the V-belt,connected to electrical power,starting the motor,observe motor rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another separate cable connection.Then make V-belt installed.
2.Unloading punch dies and adjustment of tablet press. a,Installation punch dies.b,Putting out the adjustment. c,The adjustment of filling the depth(tablet weight adjusted). d,Pressure adjustment. e,die demolition.
Parameters of tablet pill press machine
ITEM |
TZS-3 |
TZS-5 |
TZS-6 |
Max. Pressure (kn) |
30 |
50 |
60Kn |
Max. Dia of Tablet(mm) |
14 |
18mm for round tablet 22mm for irregular tablet |
20mm for round tablet 25mm for irregular tablet |
Max. Depth of Filling(mm) |
11 |
13mm |
15mm |
Max. Thickness of Tablet(mm) |
6 |
7mm |
7.5mm |
Production Capacity (pcs/h) |
3600 |
3600 |
3600 |
Power(w) |
550 |
1100 |
1100 |
Overall Size(LxWxH) |
600x450x680 |
600×500×700mm |
650×600×700mm |
Net Weight(kg) |
90/40kg |
140kg |
150kg |

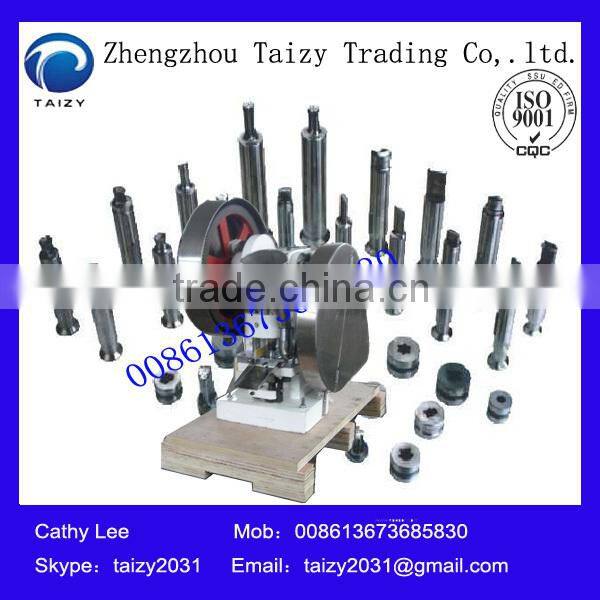

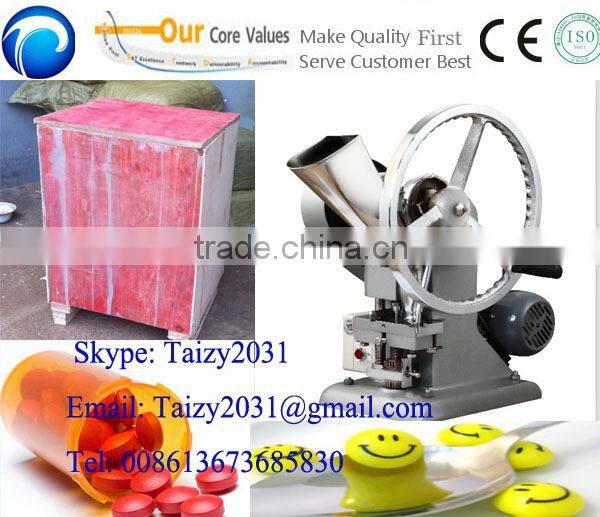

More pictures for you review
