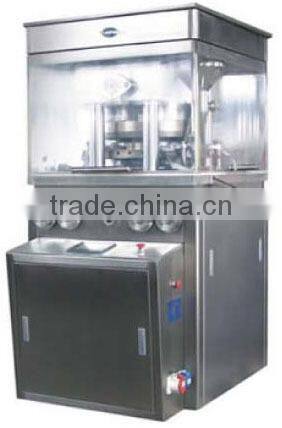

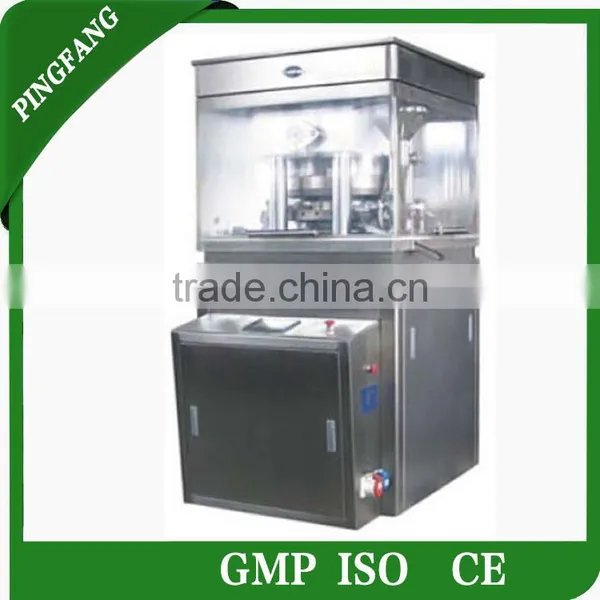

High Performance ZPW-23 Rotary Pill Press Machinery for Big Tablet
1. Main application
The machine was a dual-pressure continuous automatic rotary tablet machine; it can press granular raw materials into tablets. It is primarily in the pharmaceutical industry, tablet production, and also the chemical, food, electronics and other industrial sectors. Required under the order, can suppress the wafer, shaped pieces, double lettering pieces.
2. Features
A. Machine meets GMP and made in stainless steel. The inner tablet press surface already is special treated, which could keep surface luster and prevent from being polluted crossly.
B. Equipped with plexiglass perspective window could help to observe the status of pressing piece. Side black could be fully opened, easy to clean and maintain.
C. All monitors and operating components are in good order.
D. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct. Combining machine with electricity, equipped with to touching key and screen.
E. Transmitting system is sealed in the oil box under the main machine which is a separate component. No pollution and easy to send out heat and resist grinding.
F. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.
G. This pressure big, can adapt to all kinds of large and small pieces and difficult molding tablets, is the ideal equipment for producing the pill.
TYPE |
ZPW-23 |
Dies(sets) |
23 |
ure(Kn) |
100 |
Max.Dia.of Tablet(mm) |
45 |
Max.Thickness of Tablet(mm) |
15 |
Max.Depth of fill(mm) |
30 |
Max.output of one-layer table(r/min) |
69000 |
Rotational diameter(mm) |
445 |
Rotational speed of revolving table(r/min) |
10-25 |
Diameter of middle mould(mm) |
52 |
Highness of middle mould(mm) |
38 |
diameter of upper and lower punch (mm) |
45 |
Length of upper punch (mm) |
175 |
Length of lower punch (mm) |
180 |
Overall dimensions(mm) |
1000*1250*1900 |
Net weight(kg) |
3200 |
Motor model |
YU123M4A |
Motor(kW) |
7.5 |
Voltage(V) |
380 |
