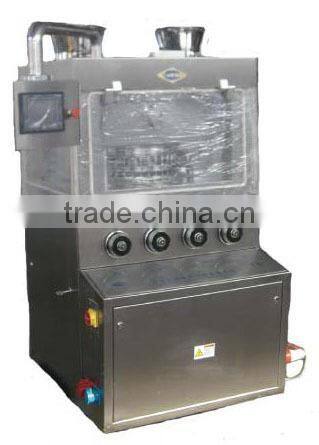

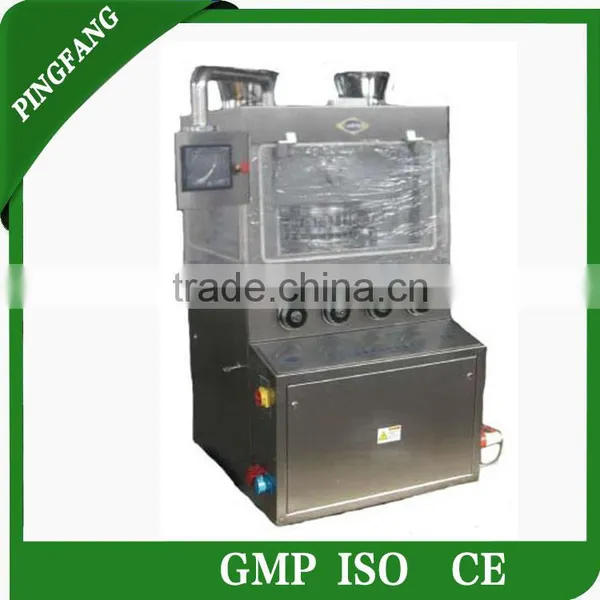

Brand New ZP35A/ZP35B Rotary Camphor Tablet Press Machine Price for Sale
1. Main application
The machine is a double-press and continuous automatically table press for pressing granular raw materials into tablet. It is mainly used in pharmaceutical chemical, food and electronic industries.
2. Features
A .Machine is full-enclosed by stainless steel. The turret face is specially processed. It could prevent the cross pollution. And machine meets the GMP requirements
B. The upper part of the machine encloses one transparent window so that we could observe the machine working situation.
C. Cleaning and maintenance is easy. The lay-out of all the controllers and the operate parts is reasonable. The speed adjustment of the driver is controlled by the frequency conversion device
D. All the driver devices are located inside the machine to keep the machine clean.
E. The hydraulic system can assure the stability of the system.
F.A The protection unit is included in the system to avoid the damage of the punches and apparatus. When overload occurs, the machine stops automatically.
G. ZP35B has pre-compression system.
Model | ZP35A | ZP35B |
Dies(sets) | 35 | 35 |
ure(Kn) | 65 | 65 |
Max.Dia.of Tablet(mm) | 13 | 13 |
Max.Depth of fill(mm) | 15 | 15 |
Thickness of largest tablet(mm) | 6 | 6 |
Turret speed(r/min) | 5-36 | 5-36 |
Production Capacity(pc/h) | 150000 | 150000 |
Motor(kW) | 3 | 3 |
Overall dimensions(mm) | 910 x 1120 x 1550 | 1180 x 1050 x 1700 |
Net weight(kg) | 2300 | 2300 |
