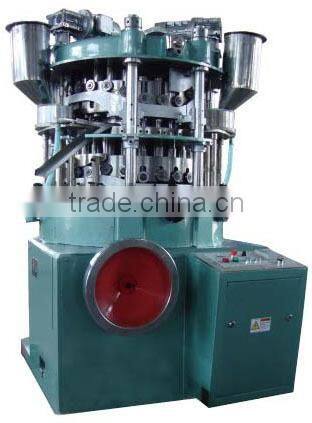

China Factory New Design ZP-25 Effervescent Tablet Press Machine
1. Main application
ZP25 Rotary tablet press is the latest developed a three layer tablet press, the machine press machine also press the granular raw material into tablet. It is mainly used in pharmaceutical industry, chemical industry, food.
2. Features
A. Machine equipped with force feeder
B. Machine speed could be adjusted
C. Each force feeder equip with vacuum device to prevent the different color material cross-contamination.
D. Machine with big pressure, work stability
E. Machine could press the big tablet.
Dies | 25 |
ure(Kn) | 120-150kn |
Max.Dia.of Tablet(mm) | 45mm |
Thickness of largest tablet(mm) | 22mm |
Max.Depth of fill(mm) | 44mm |
Diameter of the upper and lower punch | 55mm |
Length of the upper punch | 255mm |
Length of the lower punch | 228mm |
Thickness of mold | 55mm |
Diameter of mold | 60mm |
Speed range | 0-5.5 |
capacity | 8250 |
Net weight | 7300kg |
Deputy machine weight | 85kg |
Main dimensions(length x width x height) | 1040*1040*2100(mm) |
Vice-machine size(length x width x height) | 654 *505*938(mm) |
power | 7.5KW |
