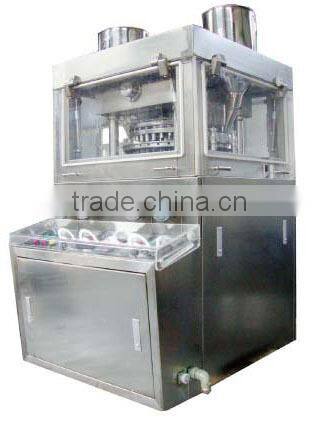

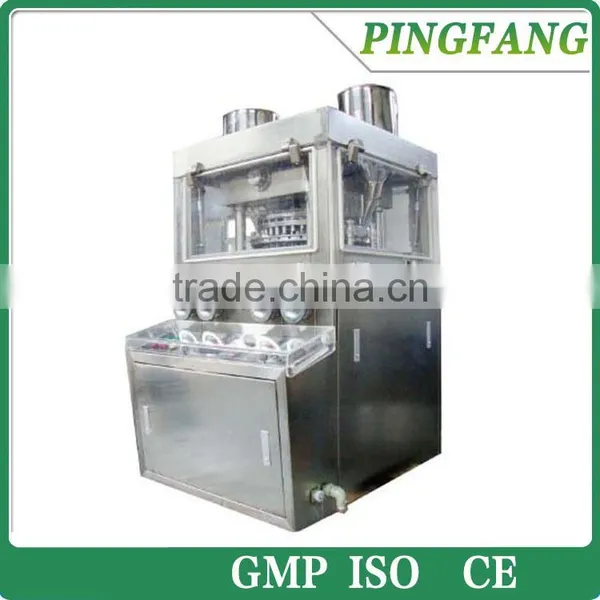

ZP35/37/41D Round and Irregular Shape Candy and Milk Tablet Press Machine, Compression Machine
1. Main application

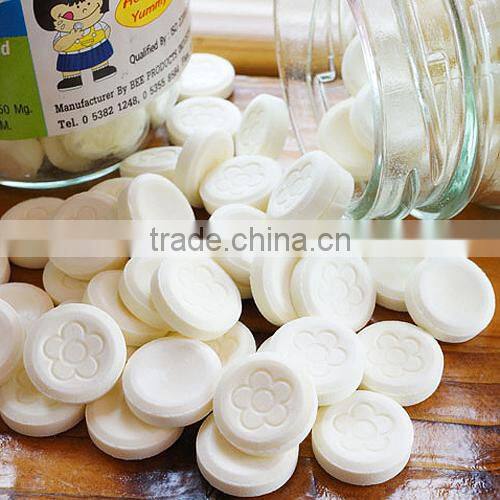

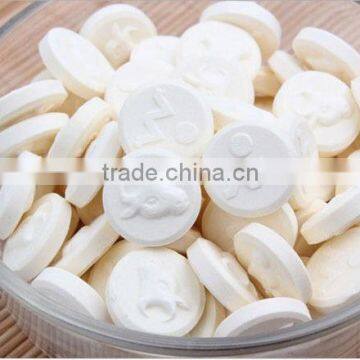

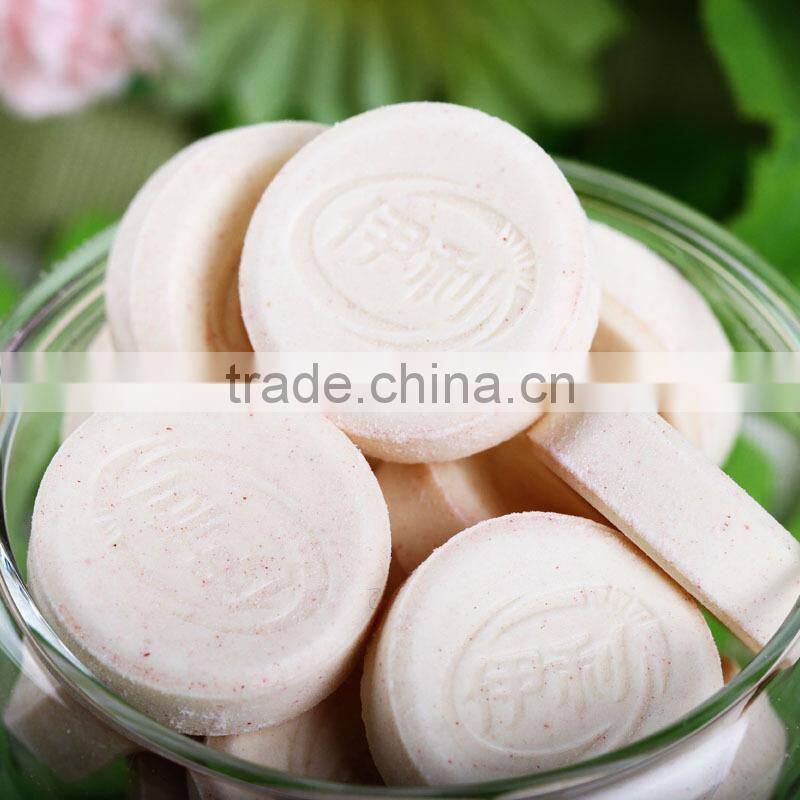

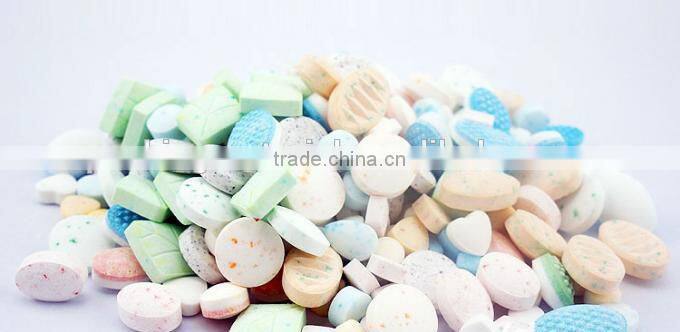

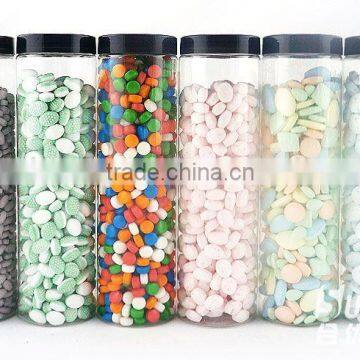

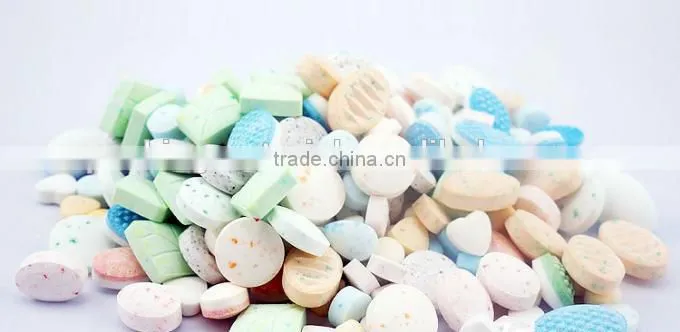

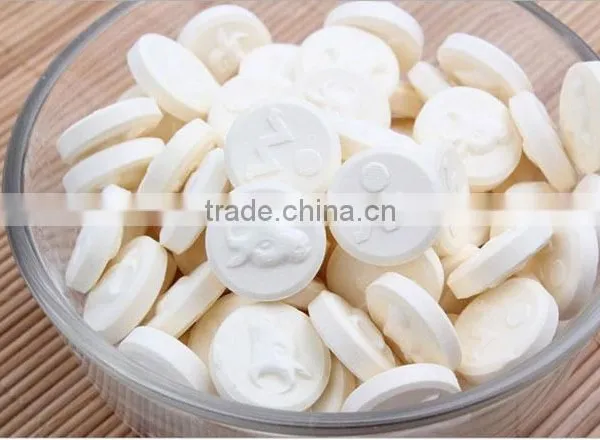

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.(Note: when manufacturing double color piece, it only need replacing components and adding power absorbing apparatus which greatly lowers the cost and raises profit.).
2. Features
A. Machine meets GMP and made in stainless steel. The inner tablet press surface already is special treated, which could keep surface luster and prevent from being polluted crossly.
B. Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.
C. Machine speed could be adjusted.
D. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
Combining machine with electricity; equipped with touching key and screen.
The first kind of it is to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
E. Transmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
F. A power suction unit is attached to take the residual power during operation, so that blockage powder can be collected and be reused.
G. Mould is generally same with ZP19, ZP35 and ZP37 Tablet press machine.
Model | ZP35D | ZP37D | ZP41D |
Dies(sets) | 35 | 37 | 41 |
ure(Kn) | 80 | 80 | 80 |
Max.Dia.of Tablet(mm) | 13 | 13 | 13 |
Max.Depth of fill(mm) | 15 | 15 | 15 |
Thickness of largest tablet(mm) | 6 | 6 | 6 |
Turret speed(r/min) | 14-37 | 14-37 | 14-37 |
Production Capacity(pc/h) | 150000 | 160000 | 170000 |
Motor(kW) | 4 | 4 | 4 |
Overall dimensions(mm) | 1230*950*1670 | 1230*950*1670 | 1230*950*1670 |
Net weight(kg) | 1700 | 1700 | 1700 |
