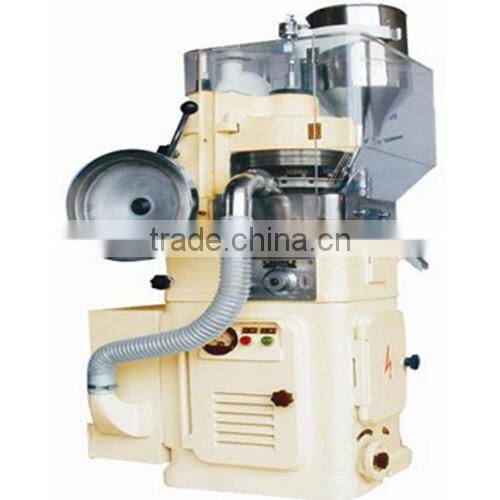

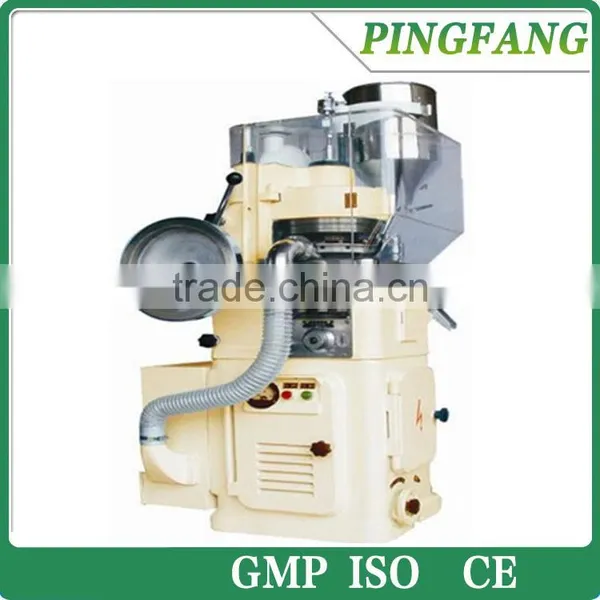

New Design Small Scale Production ZP17/ZP19 Rotary Tablet Machine, Pill Maker
This machine is not only suitable for pressing round tables from various kinds of granular materials but also different geometric shape tablets, especially for small-scale batch production. The turret carries 19(17) sets of punches and dies, so 19(17) tablets will be pressed for each revolution of the turret.
During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder during operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.
Dies |
19sets |
17sets |
Max. Pressure |
40KN |
50KN |
Max. Dia. of Tablet |
13mm |
5.5-20mm |
Max. Depth of Fill |
15mm |
15mm |
Max. Thickness of Tablet |
6mm |
6mm |
Turret Speed |
20-40r/min |
20-40r/min |
Production Capacity |
25000-45000pc/h |
25000-45000pc/h |
Motor |
2.2KW 380V 50Hz |
2.2KW 380V 50Hz |
Overall Size (L*W*H) |
880*750*1600mm |
880*750*1600mm |
Net Weight |
500kg |
500kg |
