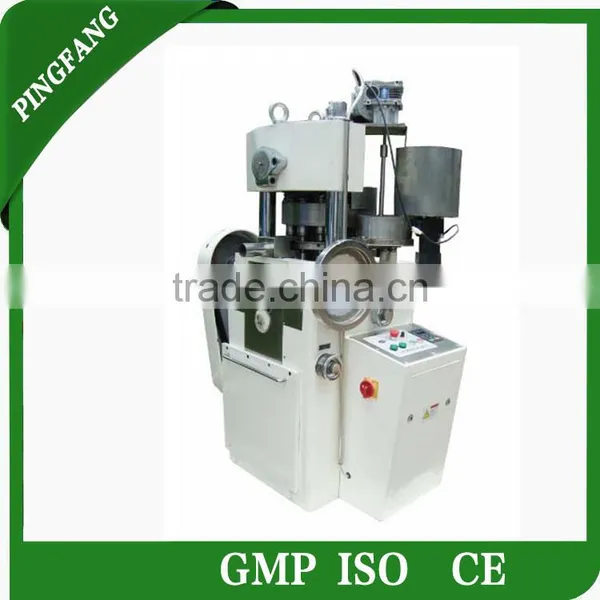

Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press

Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press photo-1
Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press photo-2
Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press photo-3
Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press photo-4
Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press photo-5
Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name PF
Model Number ZP13 15 17 19 21
Type Rotary Tablet Press
Production Capacity 7800-28500 pcs/h
Max. Pressure(KN) 80-150KN
Max. Tablet Thickness(mm) 18-15mm
Max. Tablet Diameter(mm) 30-50mm
Voltage 220V/380V
Power(W) 3kw-7.5kw
Weight 1500kg
Dimension(L*W*H) 900*800*1640mm
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Factory Price ZP13 15 17 19 21A Automatic Rotary Tablet Press for Big Tablet, Vitamin Tablet Press



Applications

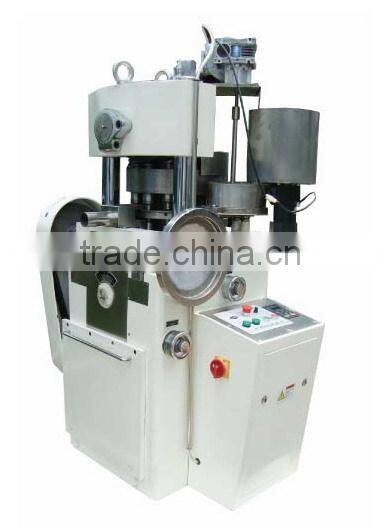

This is the Multi-functional Rotary Tablet Press with a wide scope of application. It is applicable not only to the pharmaceutical and foodstuff industry but also the chemical, ceramic, electronic and battery industry for pressing the various kinds of granular materials into tablets.



Features



A.    Easy-clean and maintenance, it’s easy read how the machine work thought the transparent window.

B.      The speed adjustable

C.    Machine could press round tablet or other special tablet

D.     The machine could enclosed with the organic glass and stainless steel

E.      The mechanical buffer unit will prevent punches and apparatus from overload damage

F.      The machine pressure is over than 10T. Machine could press big tablet



Technical parameters



Dies(sets)

13

15

17

19

21

ure (KN)

150

150

120

120

80

Max.dia.of tablet(mm)

50

45

40

30

30

Max.Depth of fill(mm)

18-25

18-25

18-25

18-25

18

Thickness of largest table(mm)

8-15

8-15

8-15

8-15

9

Turret speed(r/min)

10-25

10-25

10-25

10-5

10-36

Length of the upper shank(mm)

175mm

175mm

175mm

175mm

175mm

Length of the lower shank (mm)

180mm

180mm

180mm

180mm

185mm

Production capacity(pc/h)

7800-19500

9000-23000

10200-25500

11400-28500

45000

Motor(kW)

7.5kw

7.5kw

7.5kw

7.5kw

3kw

Overall dimensions(mm)

900*800*1640

Net weight(kg)

1500

1500

1500

1500

1500
