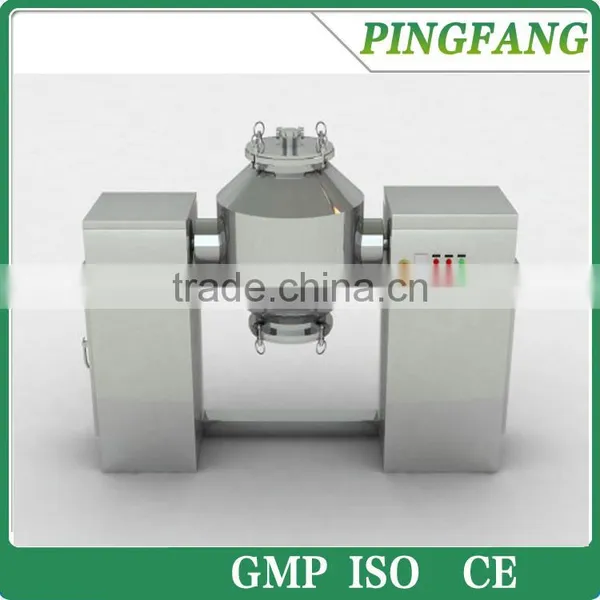

SZG Series Double Cone Rotary Vacuum Drying machine, herb/food drying machine
1. Application:
It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
2. Working principles:
Let heat source (for example, low pressure steam or thermal oil) pass through the sealed jacket. The heat will be transmitted to raw material to be dried through inner shell;
Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can be realized;
The raw material is under vacuum. The drop of steam pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump and recovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
3. Technical Parameters:
| Model | Total volume | Speed | Power | Loading coefficeient | Heating media | Working pressure | Working temperature | ||
|---|---|---|---|---|---|---|---|---|---|
| Innertank | Jacket | Innertank | Jacket | ||||||
| SZG-30 | 30L | 10r/min | 0.8kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-50 | 50L | 10r/min | 0.8kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-100 | 100L | 6.5r/min | 1.1kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-350 | 350L | 6.5r/min | 1.5kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-500 | 500L | 6.5r/min | 1.5kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-750 | 750L | 6.5r/min | 1.51kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-1000 | 1000L | 6.5r/min | 3kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-1500 | 1500L | 6.5r/min | 3kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-2000 | 2000L | 6r/min | 4kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-3000 | 3000L | 5r/min | 5.5kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |
| SZG-4000 | 4000L | 4r/min | 7.5kw | ≤50% | Steam,hot water | 0.8-0.1Mpa | 0.25-0.3Mpa | ≤80℃ | ≤140℃ |

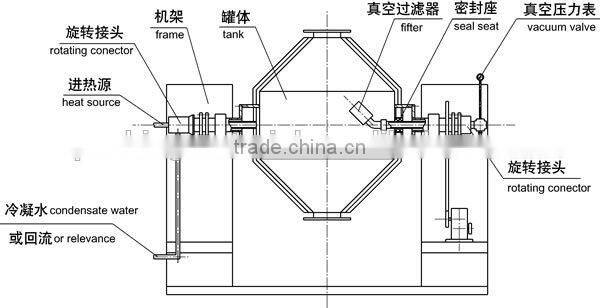

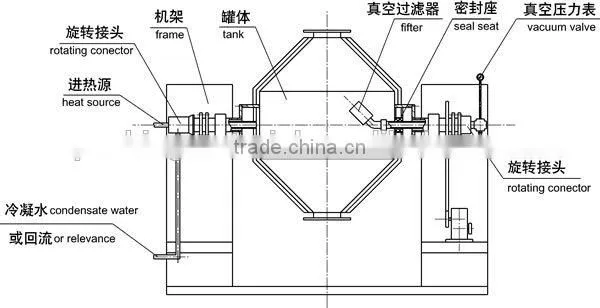

4. Schematic of structure:

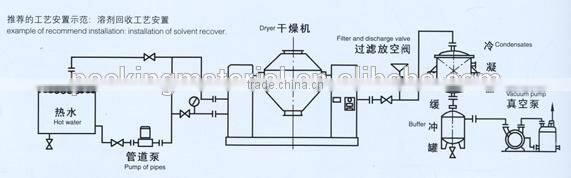

5. Installation diagram:
6.Factory shows:
7. Other drying machines:
8. Our customers:
9. Certificates:
