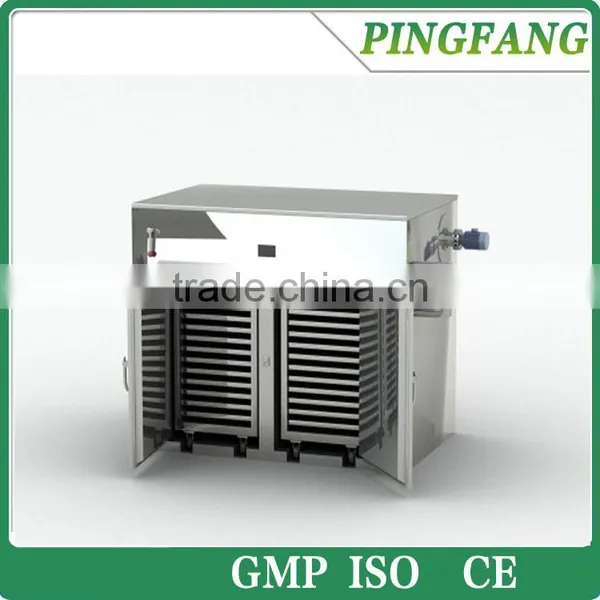

Model RXH Series Hot Air Circulating Oven Style Dryer, onion/tomato drying machine
1. Application:
It's applied for drying and dehumidification of material in such trades as pharmaceutical, chemical foodstuff, light industry, heavy industry etc., as well as heating and dehumidification of product, including raw medicines, original medicines, doses, traditional Chinese medicine tablet, powder, granulate, electuary, ball packing bottle, pigment, dyestuff, dried vegetable, food, plastic resin, electric clement and baking finish etc..
2. Features:
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
3. Technical Parameters:
| Model | RXH-B-O | RXH-B-I | RXH-B-Ⅱ | RXH-B-Ⅲ | RXH-B-IV |
|---|---|---|---|---|---|
| Drying capacity | 60kg | 120kg | 240kg | 360kg | 480kg |
| Power | 0.45kw | 0.45kw | 0.9kw | 1.35kw | 1.8kw |
| Steam consumption | 10kg/h | 20kg/h | 45kg/h | 71kg/h | 90kg/h |
| Radiation area | 5m | 20m | 40m | 80m | 100m |
| Blast | 3450mh | 3450mh | 6900mh | 10350mh | 13800mh |
| Temperature deviation | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
| Baking disc | 24 | 48 | 96 | 144 | 192 |
| Baking cart | 1 | 2 | 4 | 6 | 8 |
| Overall dimention | 1400*1200*2300mm | 2300*1200*2300mm | 2300*2200*2300mm | 2300*2200*2300mm | 4460*3200*2000mm |
4.Factory shows:
5. Other drying machines:
6. Product samples:
7.Our customers:
8. Certificates:
