LPG High-Speed Centrifugal Spray Dryer (Atomizer), Milk Spray Drying Machnie

LPG High-Speed Centrifugal Spray Dryer (Atomizer), Milk Spray Drying Machnie thumbnail-1
LPG High-Speed Centrifugal Spray Dryer (Atomizer), Milk Spray Drying Machnie photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Spray Drying Equipment
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Huizhou Pingfang Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Spray Drying Equipment
Place of Origin Shanghai, China
Brand Name PF
Model Number LPG
Voltage 220v/380v
Power(W) 63kw
Dimension(L*W*H) 3.7*3.2 *5.1m
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas







               LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie







1.  Application:

Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.



2. Features:

Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.



3. Technical Parameters:



itemparameterspec LPG
5 25 50 100 150 200-2000
inlet temperature ℃ 140-350 automatically controlled
outlet temerature ℃ ~80-90
Max.water evaporation capacity 5 25 50 100 150 200-2000
centrifugal spraying nozzle transmission mode compressed air transmission Mechanical transmission
Rotation speed rpm 25000 18000 18000 18000 15000 8000-15000
sprayingdesc diameter mm 50 100 120 140 150 180-340
Heat supply Electricity Electricity+steam Electricity+steam,fuel oil and gas Settled by users themselves
Max.Electric heating power kw 9 36 63 81 99
overall dimensions m 1.8×0.93
×2.2		 3×2.7
×4.26		 3.7×3.2
×5.1		 4.6×4.2
×6		 5.5×4.5
×7		 Depends on the concrete conditions
Dried powder restoring tate % ≥95 ≥95 ≥95 ≥95 ≥95 ≥95

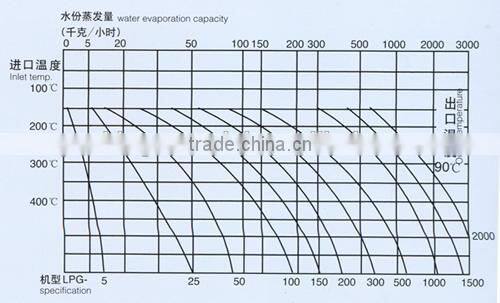

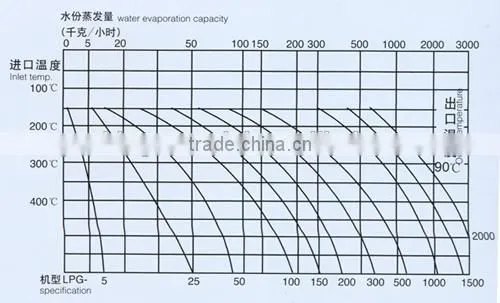

Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for reference.

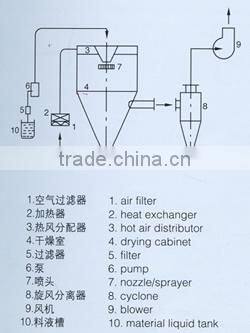

4. Flow chart:



LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie

LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie

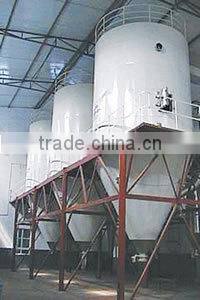

5.Factory shows:



LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie





6. Other drying machines:





LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie







7. Product samples:

LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie





8.Our customers:

LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie







9. Certificates:



LPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnieLPG High-Speed Centrifugal Spray Dryer (Atomizer), milk spray drying machnie
