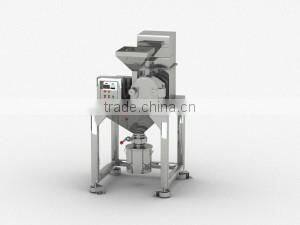

JCFJ series inner-grading mechanical crusher, hot sale crusher of plastic
1. Application:
JCFJ Series inner-grading mechanical crusher is the latest-developed super-fine mechanical grinding machine by combining the domestic and overseas advanced technology. A worm grading device is installed in the machine, which will release the satisfied particle from the grinding chamber to avoid over-grinding. In this way we not only make super fine powder, but also we make the particles uniform and even. This machine can carry out dry-grinding and grading operation for all kinds of organic substance and mineral substance, so the powder made by this machine is widely used in the chemicals, metallurgy, mine, energy, electronics, medicine pesticide, plastic, paper-making, pigment, painting, dyestuff, grinding-stuff, food and cosmetics industries.
2. Working principle:
The main unit of JCFJ series inner-grading mechanical crusher, the grinding unit, which is composed by the hitting block and blade around the rotating disk, is installed on the frame of the machine by connecting the conveying belt with the driving motor, with inlet air pipe installed in the grinding chamber, grading unit consisting of worm grading device and exhaust pipe on the top of the grinding chamber, airsealed separation at the grading unit and the beginning of the exhaust pipe to avoid the coarse powder mixing with the fine powder, and air-sealed protection before the roll bearing of the rotor to prevent the fine powder entering into the roll bearing. The structure of the machine appears to be easy and compact. When switching on the machine, the material is conveyed into the grading unit by the feeding devices. The material is separated into fine particle and coarse particle here, the qualified fine particle is released directly from the air pipe; the coarse particle enters the grinding chamber, grinded under high speed strike of the hitting block and then is transferred by the air pipe to the worm grading device. The satisfied particle is released with the exhaust air from the exhaust pipe and is collected as final product. The coarse particle returns to the grinding chamber again. The powder collecting unit is composed by cyclone and impulse dust-evacuator.
3. Technical Parameters:
Model | Feeding size | Grinding granularity (mesh) | Motor power | Spindle speed (r/min) | Rotating speed of grading wheel (r/min) | Production Capacity (kg/h) | Blast of fan | Press of fan | Weight (kg) | Overall dimension (mm) | |||
200-1000 | crush | grade | draught | discharge | |||||||||
JCFJ-400 | <5mm | 11 | 7.5 | 15 | 0.75 | 5600 | 6000 | 100-500 | 1200 | ≈1300 | 1200 | 5000×1200×2400 | |
JCFJ-600 | <10mm | 30 | 11 | 30 | 1.5 | 3550 | 4000 | 200-1000 | 2400 | ≈1300 | 2000 | 6000×1200×2400 | |
JCFJ-1000 | <15mm | 75 | 15 | 45 | 2.2 | 2250 | 2400 | 500-3000 | 6000 | ≈1200 | 5700 | 8000×1500×2400 | |
4. Factory and exhibition photos:

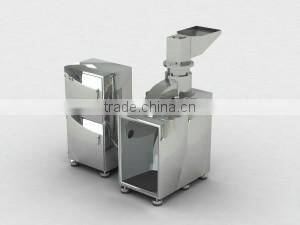

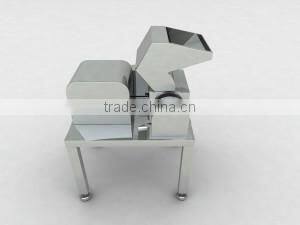

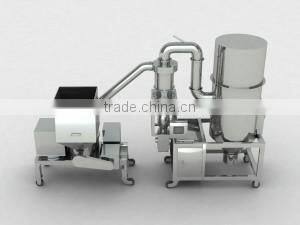

5. Other machines:
6. Powder samples:
7. Our customers:
8. Certificates:
