Home > Products > Injection liquid/powder filling production line > KGF Series Injection Vial Liquid Filling-Stoppling Machine

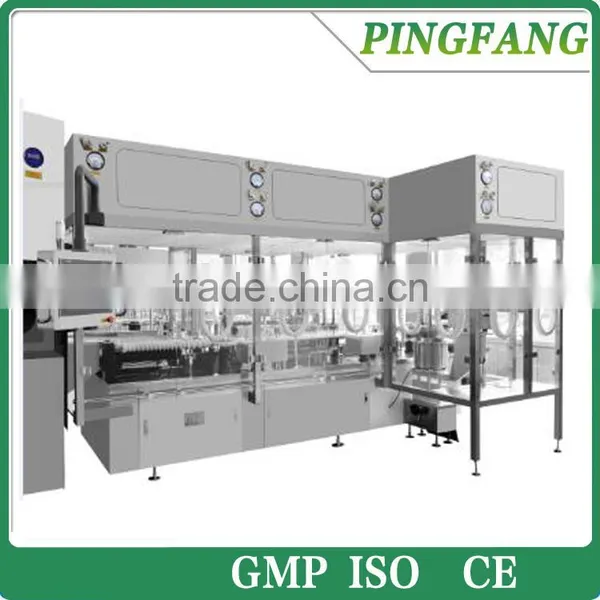

KGF Series Injection Vial Liquid Filling-Stoppling Machine
- 10 Unit / Units per Month
- Shanghai port China(Mainland)
- T/T Credit Card
You May Like
-
KFJ-300 High-Speed Screw Filling Machine for glass vials and bottles
-
KGL Series Automatic Vial Sealing Capping Machine Price for hot selling
-
AAG Series Ampoule multi-needle Wire Drawing Filling Machine
-
TLJ-B Automatic Adhesive Labeling Machine for bottles
-
TWJ (Horizontal) Adhesive Automatic Labeling Machine for plastic bottles
-
KCQ30 Vertical Ultrasonic Automatic Bottle Washing Machine Price for Sale
Product Details
Condition | New | Application | Chemical, Food, Medical, Other, Chemical, Food, Medical, filling machine | |
Packaging Type | Case | Packaging Material | Wood | |
Automatic Grade | Automatic | Driven Type | Electric | |
Voltage | 380V | Power | 5kw | |
Place of Origin | Shanghai, China | Brand Name | PF | |
Model Number | KGF | Dimension(L*W*H) | 3220*2540*2430 | |
Weight | 2300kg | Certification | CE ISO | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
KAGF Series Ampoule And Vial Filling-Sealing-Stoppling Machine
I. Introduction:
The KGF series vial liquid filling-stoppling machine adopts 10-needle linear tracking filling. The rotary table vacuum stoppling and stopple pressing are carried out. The new type ceramic plunger metering pump is featured by high precision, high efficiency and high speed.
The machine adopts the PLC control with mechanical and electrical integration, provided with the functions of no filling in case of no bottle and no stoppling in case of no bottle. The surfaces are made of high quality stainless steel, conforming to GMP requirements.
II. Features:
1. The machine integrates advanced intelligent electric control technology and simple and visual man-machine interface, realizing the perfect design of mechanical and electrical integration.
2. In the main transmission system, remote segments adopt the high strength PU synchronous belt and near segments adopt the large pushing wheel to enhance the safety factor and prolong equipment service life.
3. The servo motor is adopted for tracking. The tracking speed is identical to the bottle conveying speed so as to effectively avoid needle contact with the bottle inner wall. The return travel adopts the quadratic polynomial curve. There is no sudden change in the speed and acceleration, and mechanical impact is almost zero, so the machine works stably.
4. In the aspect of filling, as a breakthrough to the traditional cam swinging rod structure, the servo motor of high precision and small step angle and the stable and reliable servo drive are adopted. The motor shaft rotation movement is converted by the pre-pressing ball screw nuts into linear movement required by the ceramic pump plunger, so as to form a high-precision servo filling structure. Through the main machine interface, different pulse values are set for the servo motor to meet different filling volume requirements. Fine adjustment of a certain pump can be carried out.
5. The stainless steel laminar flow frame is installed outside the main machine. The frame is mainly round. With beautiful appearance and no sanitation dead zone, it ensures that the machine works in the clean area.
III.Technical Parameters:
Product Model | KGF4 | KGF6 | KGF8 | KGF10 | KGF12 | KGF20 | KGF24 |
---|---|---|---|---|---|---|---|
Applicable specifications(ml) | 2-25 | ||||||
Number of filling heads | 4 | 6 | 8 | 10 | 12 | 20 | 24 |
Production capacity(pcs/min) | 120(2ml) | 180(2ml) | 200(2ml) | 300(2ml) | 400(2ml) | 500(2ml) | 650(2ml) |
Filling accuracy(%) | ≤ ±2.5 | ||||||
Qualified rate of stoppering | ≥ 99 | ||||||
Cleanness of laminar air (Class) | 100 | ||||||
Speed of vacuum pumping (m3/h) | 10 | 30 | 50 | 60 | 60 | 100 | 120 |
Power(kw) | 5 | 10 | |||||
Power supply | 380V 50Hz | ||||||
Weight(kg) | 2300 | 2300 | 2500 | 2500 | 2500 | 2500 | 4800 |
Overall dimensions(L × W × H)(mm) | 3220×2540×2430 | 3220×2540×2430 | 3220×2540×2430 | 3220×2540×2430 | 3399×3133×2430 | 3950×2600×2430 | 3300×5700×2430 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What should I do to choose the best machine for us?
A: Tell me the size and shape of the tablet you need to press, and the capacity of the machine you need. We will suggest you the most suitable and economical one.
Q2: Does molds customized accepted,
A: Yes. Please send us your mould design, and the diameter you need, then we'll offer you the best price according to your requirement.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes. We'll send you the manual and operation video after you asking from us.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. We always attach great importance to quality control from raw material to the very end.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
