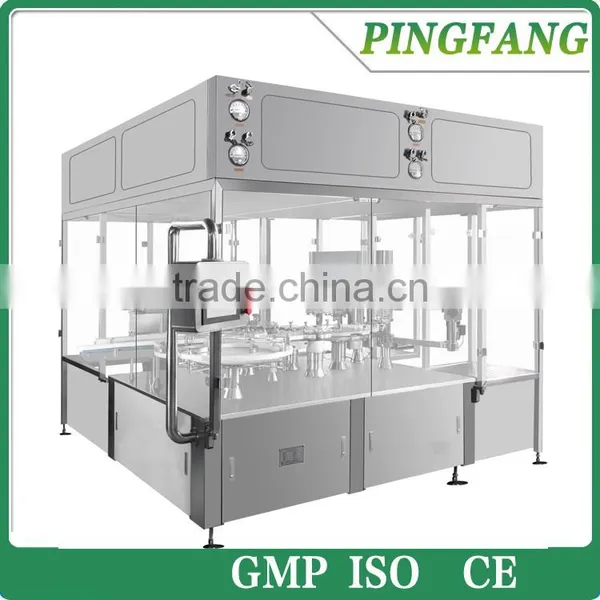

KFJ-300 High-Speed Screw Filling Machine for glass vials and bottles
I. Introduction:
The KFJ-300 high-speed screw filling machine is a latest product researched and developed by our company. It is used for quantitative filling of molded or glass vials with diameter of φ18~φ43mm and height of 40~73 mm for crystallized powders, spray dried powders and lyophilized powders.
It can carry out quantitative filling of aseptic powder medicines into sterilized and dried antibiotic bottles, which are sealed by stopples.
It is one of the main equipment used for producing aseptic powders, powders for injection and preparations in pharmaceutical plants.
II. Features:
1. The filling machine is a piece of intermittent screw powder aseptic filling equipment. The whole machine adopts full servo motor driving, PLC control and touch screen man-machine interface operation.
2. The sector pushing disc is adopted to combine the continuous bottle feeding and discharging movement with the intermittent filling movement, featured by high speed and stable running.
3. The vial is filled with aseptic medicine powders in one step without secondary pollution.
4. It is provided with various photoelectric sensor protectors and features such as machine stopping in case of no bottle, machine stopping in case of no stopple, no stoppling in case of no bottle, automatic sampling, and etc.
5. It can be equipped with the online nitrogen charging device and online analog filling device.
6. It adopts RABS protection and protective enclosure for starting and stopping the machine. It can be equipped with the online monitoring device for microbes, dust particles and wind speed. The stopples and pharmaceutical materials adopt aseptic connection to shift.
III.Technical Parameters:
| Model | KFJ-300 |
|---|---|
| Production capacity(pcs/min) | 300 |
| Loading range(g) | 0.1~4.0 |
| Applicable specifications | crystalline powder, spray powder, freeze dry powder |
| Loading accuracy | The loading error is 2% less than GMP standards |
| Qualified rate(%) | >99.0 |
| Power supply | Three-phase five-line 380V 50Hz |
| Power(kw) | 3.5 |
| Overal dimensions (L × W × H)(mm) | 2200 × 2400 × 2350 |
| Weight(kg) | 1500 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What should I do to choose the best machine for us?
A: Tell me the size and shape of the tablet you need to press, and the capacity of the machine you need. We will suggest you the most suitable and economical one.
Q2: Does molds customized accepted,
A: Yes. Please send us your mould design, and the diameter you need, then we'll offer you the best price according to your requirement.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes. We'll send you the manual and operation video after you asking from us.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. We always attach great importance to quality control from raw material to the very end.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
