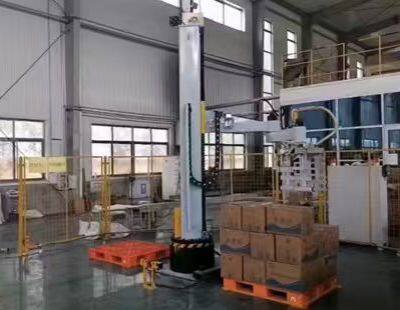

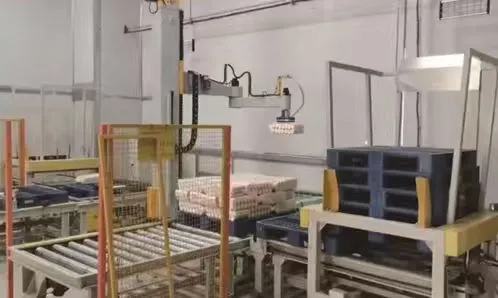

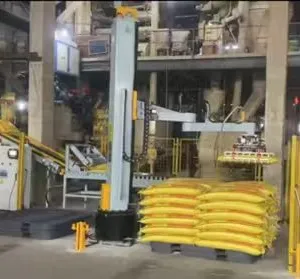

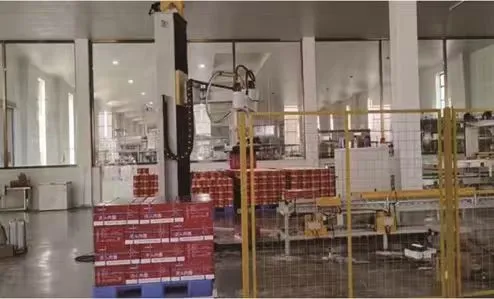

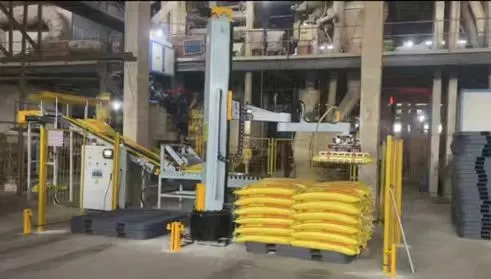

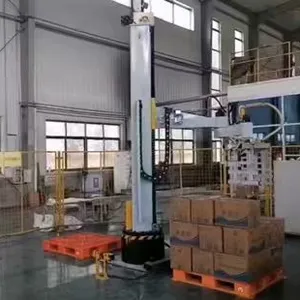

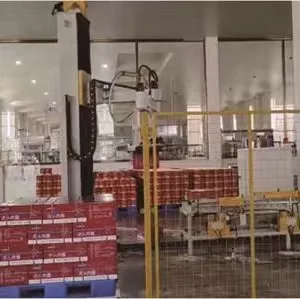

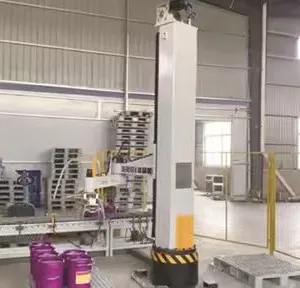

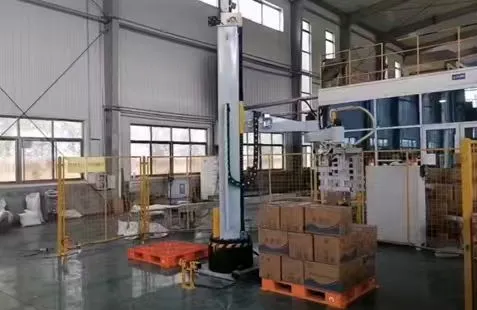

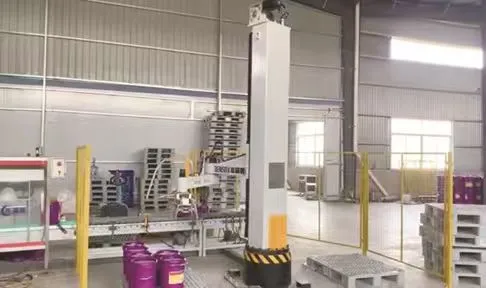

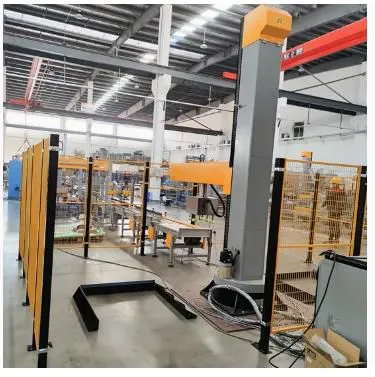

Column Palletizer for 70kg Carton Stacking Palletizing Machine Automatic Robot Palletizer
The single column palletizer is mainly used in the palletizing and material handling processes of production lines in various industries. Its main structure consists of a vertical lifting shaft and three horizontal rotating shafts; The column lifting axis and three rotating axes form a cylindrical spatial coordinate system, which can create a larger cubic space within a smaller arm span and is suitable for palletizing and narrow space material handling.
Model |
TS-1800-100 |
Palletizing Speed |
7-9 times/min(Actual production capacity depends on the product) 450 bags per hour |
Loading Capability |
70-150KG |
Applicable Product |
Carton,Film Bags, Woven Bags, Large Barrels |
Pallet Supply Way |
Manual Placement/Automatic Placement |
Palletizing Gripper |
Suction Cup/Splint/Gripper |
Palletizing Height |
1600-1800mm off the ground (determined by the height of the gripper and carton |
Total Height |
2924.5mm |
Applicable Power Supply |
380v 50HZ |
Air Supply |
0.5-0.6kg/m³, 1.5M3 /min |
Power |
7.85KW |
Weight |
820KG |
Essence Material |
Carbon Steel Baking Paint |
Color |
Standard Color RAL7035+RAL1018 |
Pallet palletizer products are widely used in granules, powders, blocks, flakes, boxes, etc. , packaging and palletizing production line for solid and liquid materials such as boxes, bottles, bags, barrels, etc. The utility model is composed of a vertical column and a horizontal arm installed on the vertical column. The vertical column is installed on the rotary base, and the horizontal arm can be freely retracted and moved up and down along the vertical column. This type of robot has one axis of rotation and two axes of translation.
It includes a machine base, a first slewing device, a vertical guide rail, a vertical sliding mechanism, a first hydraulic cylinder, two second hydraulic cylinders, etc., and is characterized in that: the vertical guide rail is fixedly installed on the top of the first slewing device, Rollers are evenly installed on the left and right sides of the two uprights of the sliding frame, and are respectively located at the bottom and the middle of the sliding frame. Action; the manipulator is slidably installed on the right side of the manipulator slide rail through the trapezoidal guide rail and the dovetail slot, and drives the entire body to rotate through the first rotary device, which is convenient for the manipulator to grasp, and the material is erected by the second rotary device. The vertical sliding mechanism and the horizontal sliding mechanism can stably and accurately place the material at the target position, which is accurate and efficient, saving manpower and material resources.
This set of equipment has the characteristics of small footprint, high economical and practical, easy installation and convenient movement. For large and medium-sized enterprises, the demand is high and it is more suitable for the market.
Rotary stacking is mainly used in beer, beverage, medicine and other industries production line back end stacking, with more than
180 degrees of rotation function, can be applied to multiple pallets stacking at the same time, flexible rotation, small area,
there are many dimensions, performance can be compared to robot stackingIntegrated solution packaging solution, cost effective reduction
The compact arrangement is simpler than the bus-type wiring.
Close to the control core, the communication is faster than the bus type.
Faster connection, more accurate dynamic compensation.
With rich palletizing scenarios, it can be quickly replicated.
Design a guided palletizing process setting interface, which is easy to use.
Provide palletizing instruction library, support customized development, easy to match with interface equipment, and high flexibility.
Support USB clone function, easy to adjust.
Conventional boxes can be stacked up to 9 layers, and the average stacking cycle is about 8 seconds, which can meet the needs of a few extreme high-rises and has high stacking efficiencyAdopts foreign advanced rotary column stacking robot , the appearance is exquisile and beautiful ,the adjustment of stacking method is convenient and simple, which can be carried out on the man-machine interface, and also can be controlled by teach pendant ,which is easy to operate and change.

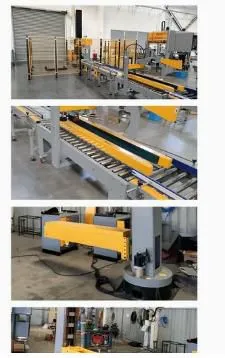

The rotate palletizer consists of the main system of the full servo palletizer by lifting Z axis, translation Y axis, rotating X
axis and gripper. At the same time, it can be combined with the pallet store station, the palletizing area conveyor line, the
feeding conveyor line, etc. to form a set Palletizing system. The palletizer puts the cartons on the pallet in a certain
arrangement for automatic stacking. It can stack multiple layers and then output, which is convenient for forklifts to transport to the warehouse for storage. This equipment adopts motion controller + teach 3 / 94 / 9 pendant control to realize intelligent operation management, simple and easy to master. Can greatly reduce labor and reduce labor intensity. System Components: This system is composed of the rotate palletizer, the gripper, the pallet store station, the case conveyors, the pallet conveyors, the safety fence and the control system.
Main technical Parameter
| Power Supply | AC380V/50HZ 20A -1p. |
| Power | 5.5KW |
| Weight | 950Kg |
| Working capacity | 2~6 movements/min |
| Speed | 0%-100% adjustable |
| Air pressure | 0.8MPa |
| Air consumption | 1000ml/min |
Be sure to use a separate fixed power supply. It is strictly forbidden to use a temporary line or use a power supply with other equipment. The voltage should not be lower than 360V or higher than 410V. When wiring, please check the live wire, neutral wire and ground wire (electrical damage and other damage caused by incorrect power supply). not included in the repair package).
Scheme structureDebug machinePalletizing process
| Palletizing Speed(bag/h) | 500-1500 | Place of Origin | China |
| Packaging Details | According to customer requirements | Product Name | Organic Fertilizer Palletizing Machine |
| Model Number | SLD-500 | Supply Ability | 100 units per month |
| Certification | CE,ISO | Brand Name | SLD |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Palletizing Station (bag) | 4-8 |
| Lifting Height | 0-10M | Delivery Time | 5-10 days |
| Capacity | 0-100KG | Minimum Order Quantity | 1 |
| Gas Supply Pressure (Mpa) | 0.6-0.8 |
Product Description
