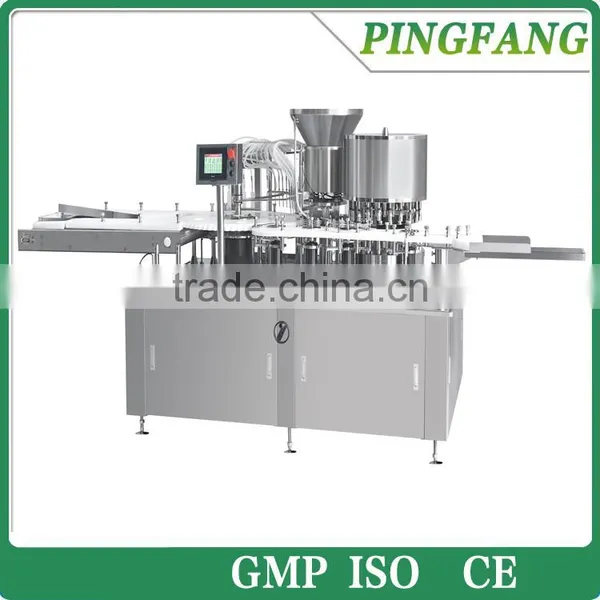

YGZ Oral Liquid Filling And Capping Machine for vial bottles
I. Introduction:
Suitable for molded or glass oral liquid bottles of 5ml-25ml, the YGZ series oral liquid filling-capping machine is a piece of equipment specially used for pharmacy, health care, food and other industries. It can be used individually, and can also work with the QCL series vertical ultrasonic bottle washing machine, ASMR series tunnel sterilizing dryer and other equipment to form a compact production line that integrates functions of washing, drying, filling and capping so as to realize automatic oral liquid filling and capping production. The machine can automatically complete the procedures of bottle feeding, bottle sorting, bottle conveying, filling, cap falling, capping, bottle discharging, and etc.
II. Features:
1. With features such as simple structure, reasonable layout, easy repair, stable production, convenient operation and cleaning, and so on, the machine can be used singly or for linked production. It is an ideal piece of equipment especially for packaging of oral liquids.
2. It adopts the bottle feeding mesh belt enlarged rotary table structure, avoiding bottle shortage and bottle falling during high speed production.
3. It adopts the synchronous tracking technology with long filling time and high filling precision.
4. The machines uses the glass pump to carry out quantitative filling with high precision. It is suitable for oral liquids and other liquids of certain viscosity.
5. The filling needle adopts individual clamping technology and each filling needle can be adjusted independently.
6. It has features of single-needle type quantitative filling, no air bubble, long shelf life, and etc.
7. During normal running, the machine is provided with the functions of no filling in case of no bottle, machine stopping in case of no cap, while the rate of finished products is high.
8. The driving part of the machine adopts the cam principle and round disc type positioning, so that the positioning is correct during filling and capping.
9. The control part adopts variable frequency speed adjustment which realizes stepless speed adjustment.
10. The capping part adopts the built-in single-pole structure, featured by stable running, reliability, high- quality capping and so on.
III. Technical Parameters:
| Product Model | YGZ16 |
|---|---|
| Applicable specifications(ml) | 5-25 |
| Production capacity | 250-400 |
| Number of filling heads | 16 |
| Number of capping heads | 20 |
| Power(kw) | 1.5 |
| Filling accuracy(%) | ≤ ± 2.5 |
| Qualified rate of capping(%) | 99.0 |
| Overall dimensions(L × W × &H)(mm) | 3700x1350x1545 |
| Weight(kg) | 1500 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
Our Customers:
Our Certificates:
Q1: What should I do to choose the best machine for us?
A: Tell me the size and shape of the tablet you need to press, and the capacity of the machine you need. We will suggest you the most suitable and economical one.
Q2: Does molds customized accepted,
A: Yes. Please send us your mould design, and the diameter you need, then we'll offer you the best price according to your requirement.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes. We'll send you the manual and operation video after you asking from us.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. We always attach great importance to quality control from raw material to the very end.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
