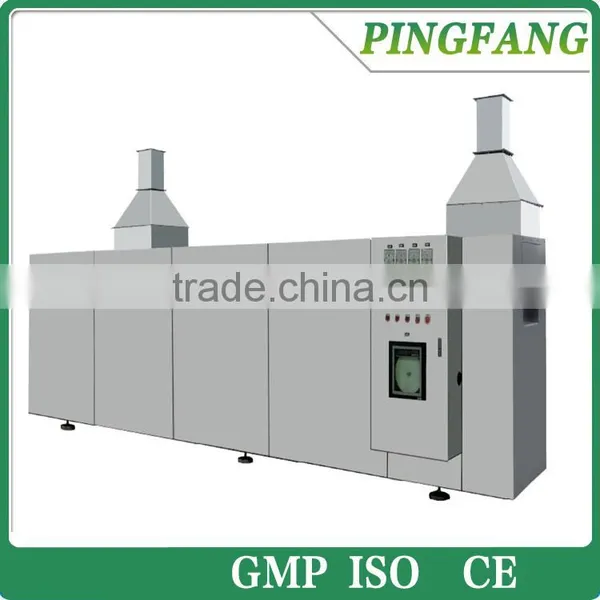

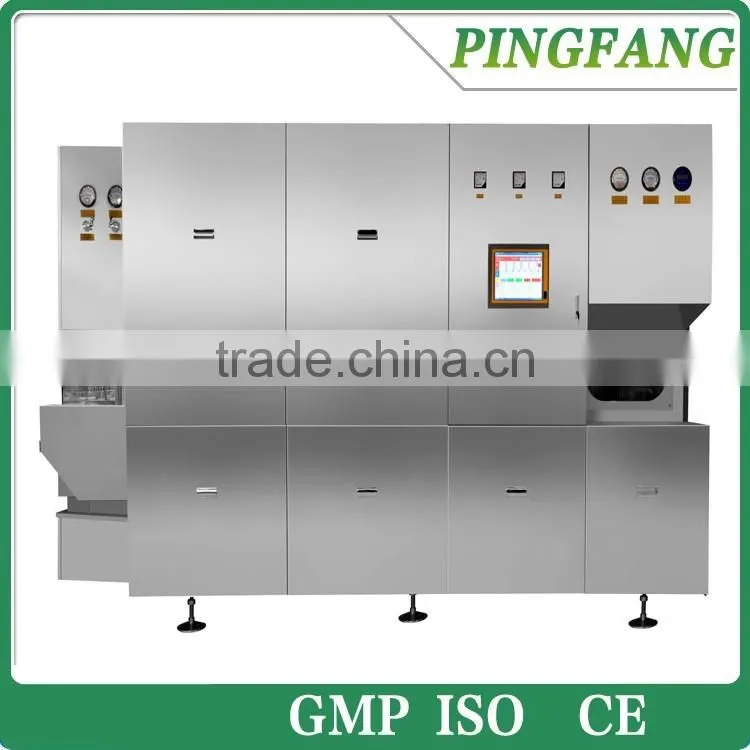

HDA Series Far Infrared Tunnel hot air Sterilizing Oven
I.Application:
With an integral tunnel structure, the machine includes three parts: the preheating area, high temperature sterilizing area and cooling area. It adopts the hot air laminar flow disinfection principle to carry out instant high temperature sterilization of the vessel. It is suitable for drying and sterilization of ampoules, antibiotic bottles, oral liquid bottles and other medicinal glass bottles.
II. Features:
1. The oven is welded by high quality stainless steel sheets.
2. The oven includes two parts which are the heating section and cooling section. The heating section is provided with heat insulation layers of certain thickness, and is filled with high quality aluminum silicate fiber to achieve good heat insulation effect.
3. Humidity removing ports are installed at the top of the heating section in the oven to accelerate the drying of materials and to enhance the sterilization effect.
4. The electrothermal quartz tube is adopted as the heating element, which is installed at the upper heating part of the work room, featured by high efficiency, energy saving, and etc.
5. The transmission system adopts the stainless steel mesh belt for driving and is featured by the electromagnetic stepless speed adjustment.
6. The high-efficiency air filter is set at the cooling air inlet of the oven to purify cold air from the blower. The fan is mounted at the air outlet to adjust the wind volume in according with the requirements.
7. The far infrared tunnel oven is provided with a control cabinet. Temperature control is realized by using the digital controller with the temperature range of 0-400℃. The meter has features such as strong anti-vibration and anti-disturbance ability, small volume and convenient operation.
III. Technical diameters:
| Heating power(kw) | 43 |
|---|---|
| Maximum temperature (° C) | 350 |
| Driving motor power(kw) | 0.25 |
| Fan power(kw) | 0.75 |
| Overall dimensions (L × W × H)(mm) | 5000 × 1320 × 2300 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
