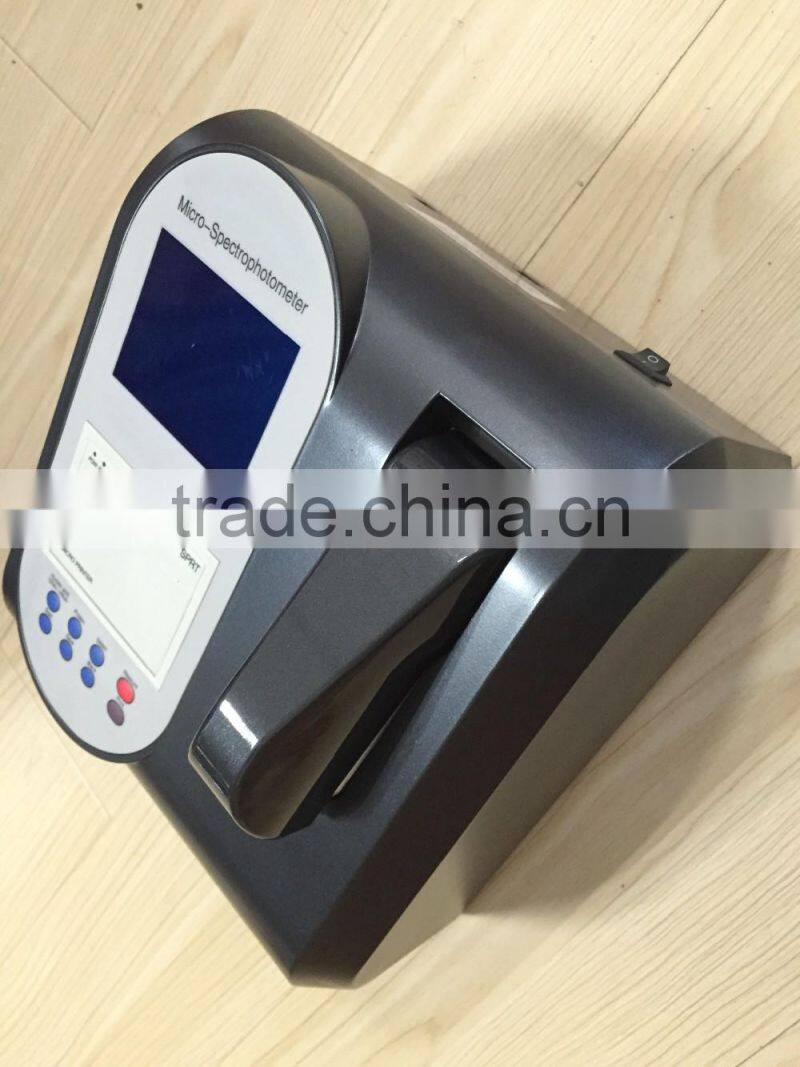

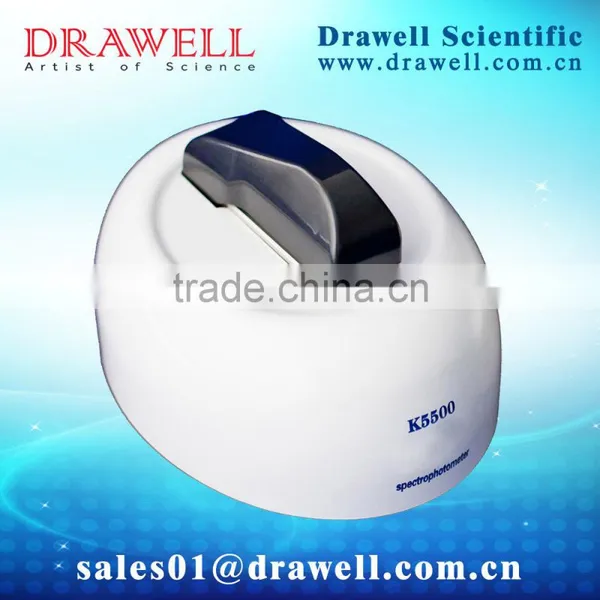

DW-K5500 micro-spectrophotometer

DW-K5500 is a new type full - spectrum ( 200~ 850nm) spectrophotometer, can measure nucleic acids, proteins, cell cultures, microarray samples, and UV-VIS full spectrum absorbance scan with high accuracy and reproducibility.

Features

0.3~2µL sample size!

No cells, no cuvettes!

No warm-up!Rapid measure speed!

Display the concentration directly!

UV-VIS full spectrum absorbance analysis (200-850nm)!

No dilutions for samples, can measure samples with high concentration!Easy to use!

Performance index

Path length: 1mm, 0.2mm, (0.1mm, 0.05mm optional)  Sample size: 0.3~2µL  Light source: Xenon flash lamp  Detector: 2048-element linear silicon CCD  Wavelength range: 200~850nm  Wavelength accuracy: ±1nm  Wavelength resolution: 2nm (FWHM at Hg 546nm)  Absorbance precision: 0.002 Abs  Absorbance accuracy: 1% (0.76 absorbance at 350nm)  Absorbance range: 0.02~75(150, 300 optional, 10mm equivalent absorbance)  Detects Nucleic acid up to: 2~3750ng/μL(7500,15000 optional, dsDNA)  Detects Protein up to: 0.1mg/ml~100mg/ml(200,400 optional, BSA)  Measurement time: <5s  Outline size: 21cm×17cm×11cm  Net weight: 1.35kg

Application

There are 5 measurement modules provided by K5500 software: Nucleic acid, Protein, Cell culture, Microarray and UV-VIS.

Nucleic Acid: Concentration and purity of DS-DNA, SS-DNA and RNA

Protein:    Concentration of the protein A280(1Abs = 1mg/mL), BSA, IgG and lysozyme            Concentration of protein with protein assay kit (Lowry, BCA and Bradford)

Cell Culture:Concentration of suspended cell cultures

UV-VIS:     UV/VIS full-spectrum (200~850nm) absorbance scan

Microarray:Concentration of fluorescent dye labeled nucleic acid (microarray),  for it can measure the concentration of the nucleic acid and the dye at the same time

General operation

1 Drop directly 0.3~2µL sample onto the test platform with a pipette.

2 Close the sampling arm.

3 Click the “Measure” button, and the result(values and graph) of the sample will appear in seconds.

4 Wipe the sample from the test platform with clear absorbent paper.

5 Click the “Save Graphic” button after measured a sample if you want to save the graph.

6 Click the “Show Report” button after the samples measured to output the result data of the samples by excel.
