Lab Equipment of Flame Spectrophotometer

FOB Price

US$ 440 - 5,000 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	DRAWELL
Model Number	DW-FP6431

Product Description

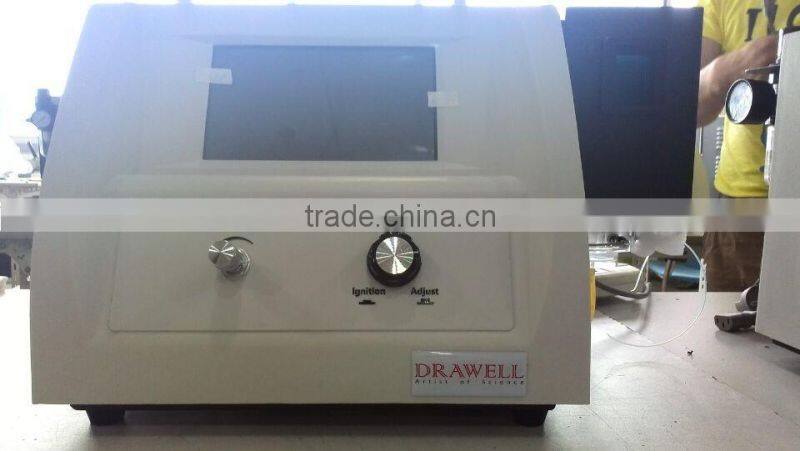

DW-FP6431 Flame Spectrophotometer

Application Areas
A lot of new technology and new materials are adopted. Such features as LCD display, menu-type instruction operation, curve storage, flameout protector and outside printout are enabled by the application of top grade embedded mono-chip computer circuit.

Feature :

Direct concentration read-out	Automatic Calculation of correlation coefficient
Pre-selection of flame sizes	Flameout protection device
Measuring range changing	LPG burning gas
Air compressor including

Specifications

RangeK:0~999.9;Na:0~999.9;Li:0~999.9
Sensitivity:K:0.2μg/mL;Na:0.2μg/mL
Linearity:K:0.2μg/mL;Na:0.7μg/mL
Drift:less than 3% within 15s
Reproducibility:3%
Aspiration rate:<6mL/min
Fuel supply:L.P.G.

Working conditions

Environmental Temperature: 10 oC~35oC
Relative humidity:≤85%
The instrument should be placed horizontally, avoiding direct sunshine radiation. There is no disturbance of strong electromagnetic field or vibration.
Fire extinguishing device should be equipped in the application field and good aeration should be guaranteed. Power supply: AC220V±22V, frequency 50Hz±1Hz,with good grounding.

Standard configuration:

Main Instrument 1
Power Cable 1
Chimney 1
Clearing rod 2
Air compressor 1
Printer SP-T 2425SK 1

Optional accessories:

Printer SP-T 2425SK
Air compressor
Lithium filter

		DW-FP640	DW-FP6410	DW-FP6430	DW-FP6431	DW-FP6432	DW-FP6440	DW-FP6450
Sensitivity	K	0.156ppm		0.156ppm			0.156ppm
	Na	0.184ppm		0.184ppm			0.184ppm
	Li	------	optional	0.1ppm	------	------	0.1ppm
	Ca	------	------	------	2ppm	------	2ppm
	Ba	------	------	------	------	6ppm	------	6ppm
Range	K	0-100ppm		0-100ppm			0-100ppm
	Na	0-160ppm		0-160ppm			0-160ppm
	Li	------	optional	0-100ppm	------	------	0-100ppm
	Ca	------	------	------	0-1000ppm	------	0-1000ppm
	Ba	------	------	------	------	0-3000ppm	------	0-3000ppm
Linearity	K	0.195ppm(0.39-3.12)ppm		0.195ppm(0.39-3.12)ppm			0.195ppm(0.39-3.12)ppm
	Na	0.69ppm(1.15-9.2)ppm		0.69ppm(1.15-9.2)ppm			0.69ppm(1.15-9.2)ppm
	Li	------	optional	0.15ppm(0.25-5)ppm	------	------	0.15ppm(0.25-5)ppm
	Ca	------	------	------	3ppm(5-100)ppm	-------	3ppm(5-100)ppm
	Ba	------	------	-------	------	9ppm	------	9ppm
Repeatability		1 % CV for 20 consecutive samples		1 % CV for 20 consecutive samples			1 % CV for 20 consecutive samples
Respond time		<8s		<8s			<8s
Sample uptake		<6L/min		<6L/min			<6L/min
Package		N.W : 18kg G.W. 22kg 770 x 560 x 390mm 0.168M3
