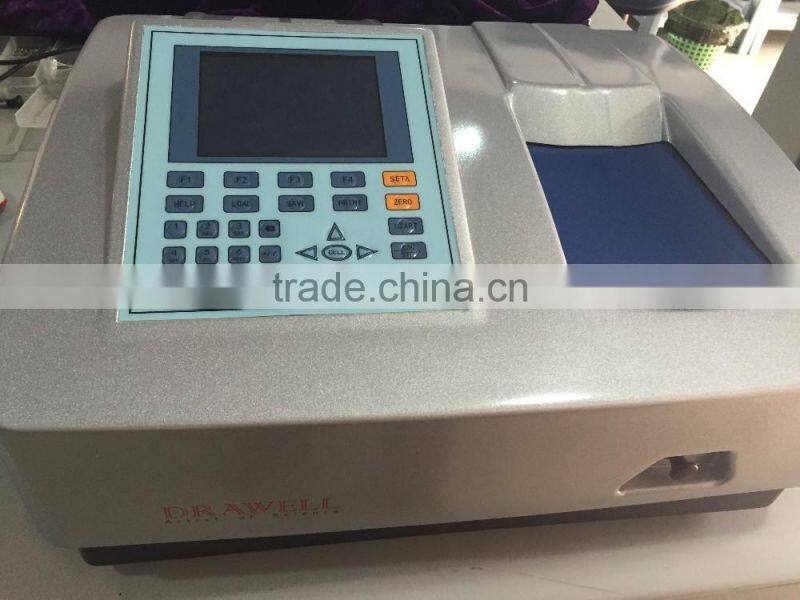

DU-8800R/ DU-8800RS Split Beam UV/VIS Spectrophotometer
DU8800R/DU8800RS spectrophotometer are advanced split beam ratio monitoring optical system. DU8800R with 1.8nm fixed bandwidth, DU8800RS with optional bandwidth. They are suitable for biochemical, pharmaceutical and clinical lab applications.
Features:
Split beam ensure low drift, low noise and Low stray light
High speed MCU, high precision AD, large storage capacity
Large LCD display (320*240 Dots)
1.8nm or variable Bandwidth meet Pharmacopoei
Data and Curve can be stored in real-tim
Online software upgrade capability
Lamps can be turned on/off individually
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assures durability
Function:
Photometric
Quantitative(Standard Curve)
WL Scan(Spectrum Scan)
Time Scan(Kinetics)
DNA/Protein Test
Multi-WL Test
System Utility
Specifications:
Model | DU-8800R | DU-8800RS | |
Wavelength Range | 190-1100nm | ||
Spectral Bandwidth | 1.8nm | 0.5/1/2/4/5nm Variable | |
Optical System | Split Beam Ratio Monitoring, Blazed Holographic Grating (1200 lines/mm) | ||
Wavelength Accuracy | ±0.3nm | ||
Wavelength Repeatability | ≤0.2nm | ||
Wavelength Setting | Auto, Resolution 0.1nm | ||
Photometric Range | 0~200%T, -0.3~3A, 0~9999C | ||
Photometric Accuracy | ±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T) | ||
Photometric Repeatability | ≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) | ||
Stray Light | ≤0.05%T(220/360nm) | ||
Scan Speed | High, Medium, Low. Max.2000nm/minute | ||
Baseline Flatness | ±0.0015A | ||
Stability | ±0.002A/h (500nm,0A) | ||
Noise | ≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T) | ||

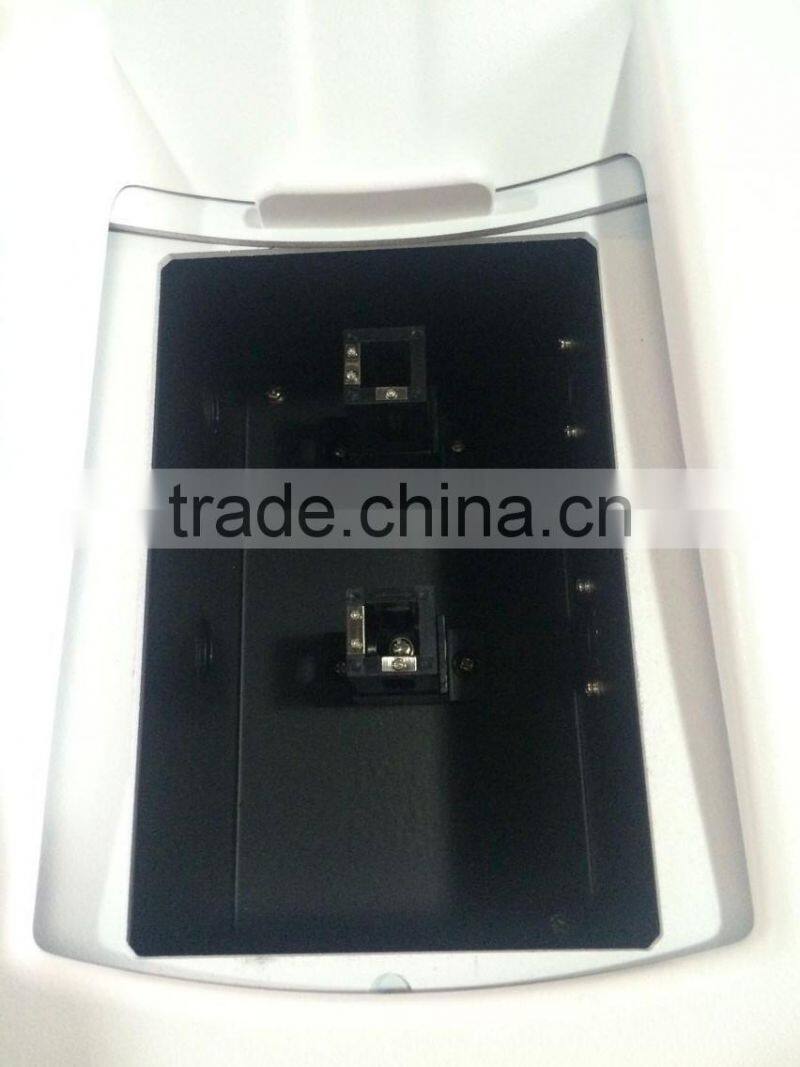

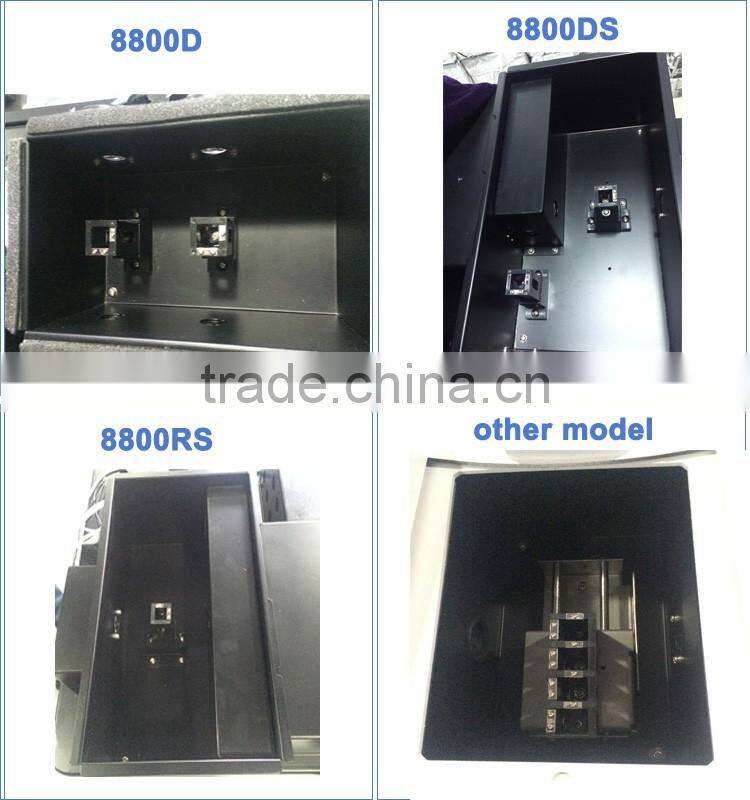

Sample Compartment | Accommodate 5-100mm Pathlength Cuvette | ||
Detector | Silicon Photodiode | ||
Lamps | Tungsten Lamp & Deuterium Lamp (Pre-aligned) | ||
Display | Graphic LCD (128x64 Dots) | ||
Keypad | 30-key Alphanumeric Membrance Keypad | ||
Output Port | USB Port & RS232 Port | ||
Printer | Mini Serial Printer; PC Printer | ||
PC Software | PC Scanning Software | ||
Power Requirements | AC 90-250V,50/60Hz | ||
Dimension | 545x468x245mm | 635x515x255mm | |
Net Weight / Gross Weight | 19kgs / 24kgs | 19kgs / 24kgs
| |
