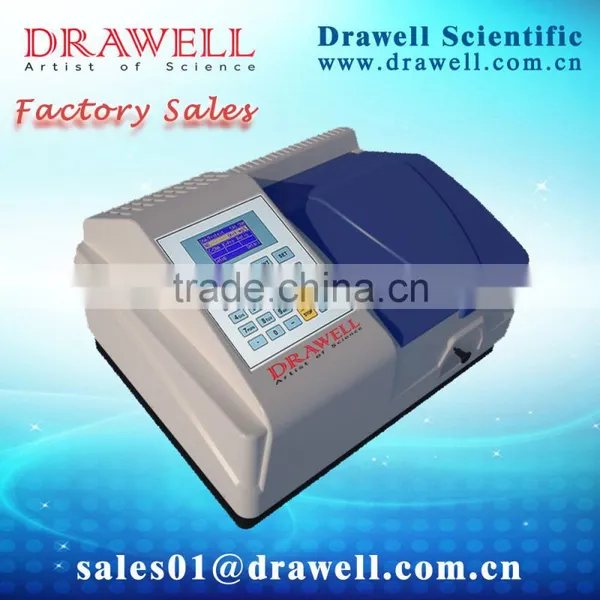

DU-8600R Split Beam UV/VIS Spectrophotometer
DU8600R spectrophotometers is split beam ratio monitoring optical system can restrain drift, Suitable for long time test. It is simple to fit a curve by using your standard with single or dual WL. It also have wavelength scanning function using PC software. It is widely used in colleges and QC labs.
Features:
Split beam ratio monitoring optical system
Low noise and Low stray light
Large LCD display (128*64 Dots), can display curve
High quality grating, detector and lamps
Data and Curve can be stored in real-time
Auto setting WL, auto Blank
Lamps can be turned on/off individually
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assures durability
Function:
Photometric: T%, Abs
Quantitative: Standard Curv
System Utility
* WL Scan (Spectrum Scan) (PC)
* Time Scan (Kinetics) (PC)
* DNA/Protein Test (PC)
* Multi-WL Test (PC)
Specifications:
Model |
DU-8600R |
Wavelength Range |
190-1100nm |
Spectral Bandwidth |
2.0nm |
Optical System |
Split Beam Ratio Monitoring, Blazed Holographic Grating (1200 lines/mm) |
Wavelength Accuracy |
±0.5nm |
Wavelength Repeatability |
≤0.2nm |
Wavelength Setting |
Auto, Resolution 0.1nm |
Photometric Range |
0~200%T, -0.3~3A, 0~9999C |
Photometric Accuracy |
±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T) |
Photometric Repeatability |
≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) |
Stray Light |
≤0.05%T(220/360nm) |
Scan Speed |
High, Medium, Low. Max.2000nm/minute |
Baseline Flatness |
±0.0015A |
Stability |
±0.002A/h (500nm,0A) |
Noise |
≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T) |

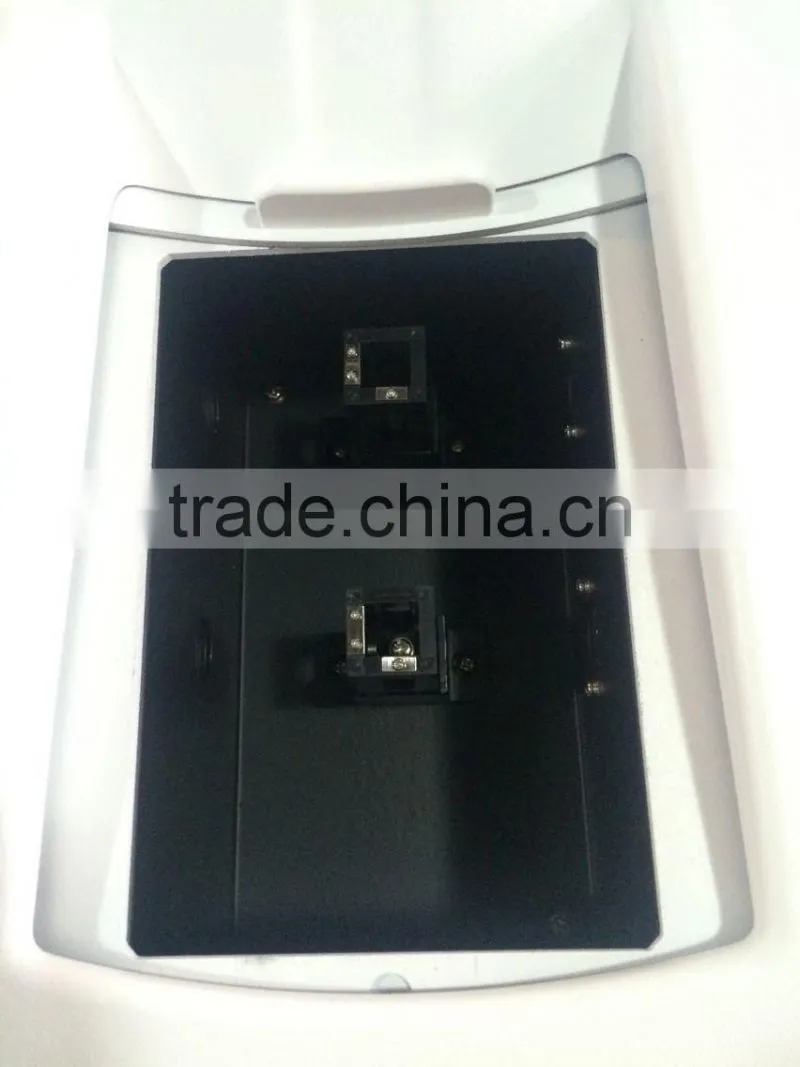

Sample Compartment |
Accommodate 5-100mm Pathlength Cuvette |
Detector |
Silicon Photodiode |
Lamps |
Tungsten Lamp & Deuterium Lamp (Pre-aligned) |
Display |
Graphic LCD (128x64 Dots) |
Keypad |
30-key Numeric Membrance Keypad |
Output Port |
USB Port & RS232 Port |
Printer |
Mini Serial Printer; PC Printer |
PC Software |
Optional PC Scanning Software |
Power Requirements |
AC 90-250V,50/60Hz |
Dimension |
545x468x245mm |
Net Weight / Gross Weight |
16kgs / 20kgs |
