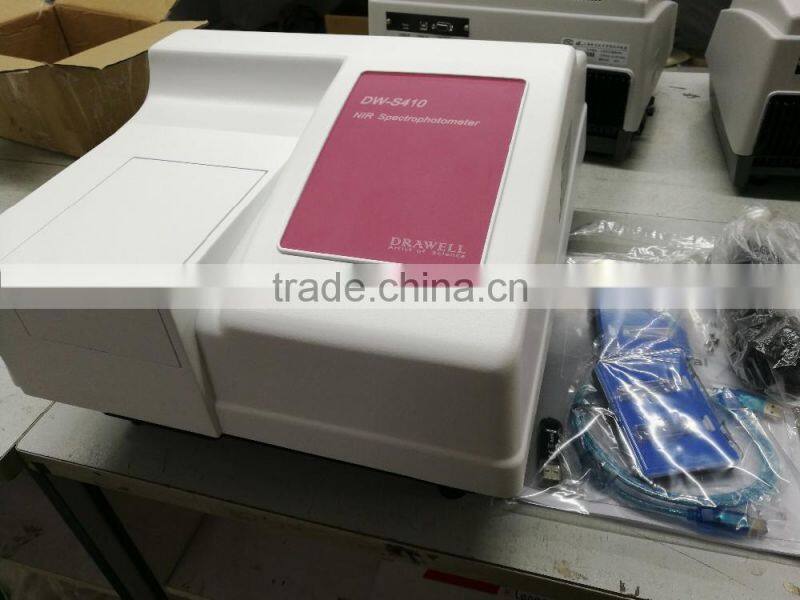

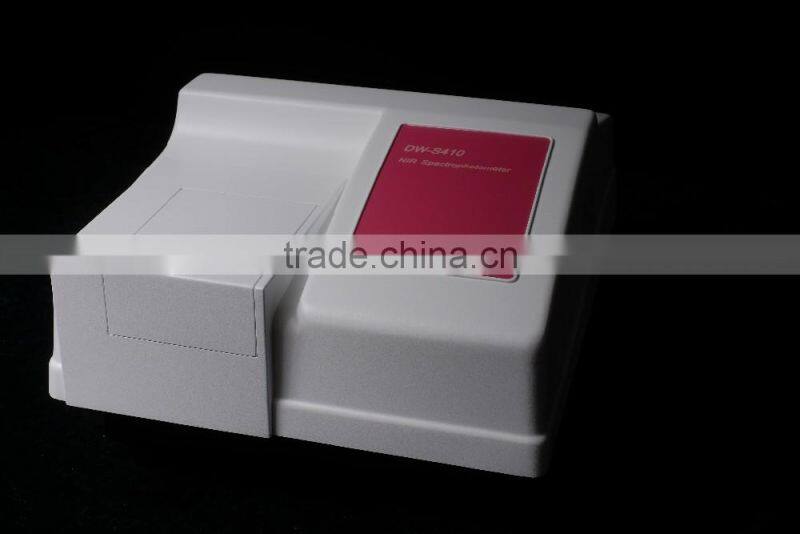

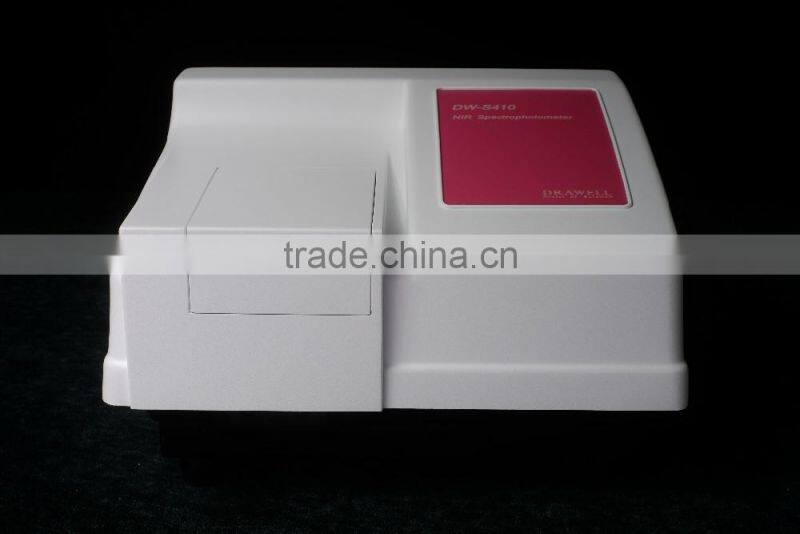

DW-S410 Near Infrared Spectroscopy Spectrophotometer

DW-S410 NIR Spectrophotometer

COMMON FEATURES

Transmission NIR, mainly used for liquid samples qualitative and quantitative analysis, applies to gasoline, drinks, milk and other areas of nutrients, water chemistry and other physical properties of the rapid non-destruc- tive analysis determination.

Single-channel whole spectrum scanning.

CAUNIR NIR analysis software with laptop, full automation, many regular function, spectrum pre-process, model test and distract, self-test correction, sample analysis, scanning curve storage/ display/comparison, print

Quantitive analysis process of gasoline octane value/ antiknock Coefficient /EP value

is very short, gasoline Ron model correlation coefficient≥0.97.

Easily updated. Fast scan, wavelength calibrate time from 900nm to 1700nm less than 2 minutes. Built in SCM technology, auto 0% and auto background subtraction.

SPECIFICATIONS                                               900-1700nm

WL Range                                                            ±1nm

WL Accuracy                                                         ≤1nm

WL Reproducibility WL                                      1nm,4nm,8nm,16 nm

Scanning Interval Absorbance                         0.002A (at 0.4A)

Reproducibility S/N                                             ≥ 103 (at 1500nm)

Scanning Time                                                    ≤2mins

Application field                                                   liquid dope samples(gasoline, drink and milk, etc)

Optical system                                                     grating monochromator

Detector                                                                InGaAs

Interface                                                                RS232 serial port

Dimensions                                                         570x370x240 mm

Weight                                                                   18Kg

CAUNIR NIR ANALYSIS SOFTWARE

Application type:              Quantitative or qualitative

Modeling: Improved PLS,Artifical Neural Networks

Model Transfer: Slope / Intercept correction,single-sample model transfer,etc

Spectrum pretreatment:Centricity,First and Second Derivative, Vector Normalization, Additional scatter correction

STANDARD ACCESSORIES

S410 spectrophotometer                              1 set Power

cable                                                 1 pc User Manual

1 pc Fuses(2A)                           2pcs

S410 Data processing software package       1 set

OPTIONAL ACCESSORIES

Fuse (2A)

Communication cable
