Ball Mill

Ball Mill thumbnail-1
Ball Mill thumbnail-2
Ball Mill thumbnail-3
Ball Mill thumbnail-4
Ball Mill thumbnail-5
Ball Mill thumbnail-6
Ball Mill photo-1
Ball Mill photo-2

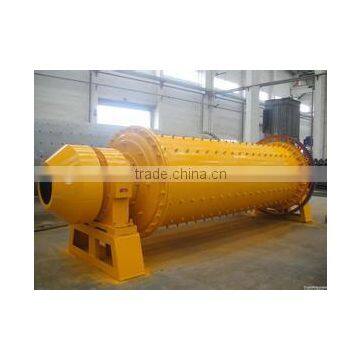

Ball Mill photo-3

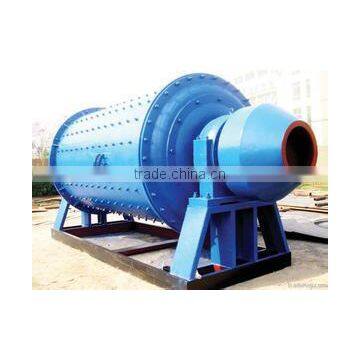

Ball Mill photo-4

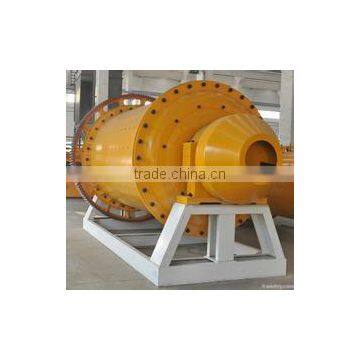

Ball Mill photo-5

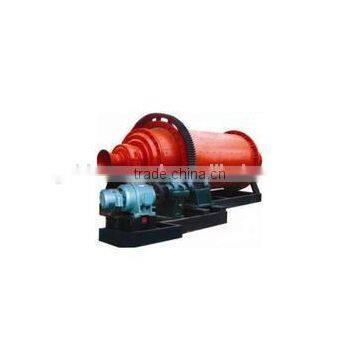

Ball Mill photo-6
US$ 6,500 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
Other
Contact Supplier Request Quote Chat Now
Fuzhou Golden Moral Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type Other
Power(W) 18.5-800kw
Capacity(t/h) Depends
Place of Origin Fujian, China
Brand Name GM
Model Number Model
Dimension(L*W*H) variety
Weight 4.6-137t
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Ball mill introduction:

Ball mill is the most commonly used grinding equipment, it is widely used in cement,silicate products, new building materials, refractory, fertilizer, non-ferrous metal, glass ceramic and other industries. It mainly grinds various ores and other grind-able materials,the type of the grinding include dry grinding and wet grinding. Ball mill is mainly composed by the components of cylinder, driving big gear ring,end cap,bearing and so on.

Structure Features of Ball mill:

The ball mill is composed by the feeding device,discharging device,rotating device, transmitting device and some other components. The hollow shaft of the ball mill is made of steel-casting, the liner is detachable, rotary gear hobbing processing with hobbing casting, and the cylinder of ball mill lining with wear-resistant plate, which decide the ball mill of good abrasion resistance. Thus, the ball mill is stable to operate and reliable to work.

Technical Parameters of Ball Mill:

Model

Shell rotation speed (r/min)

Ball load (t)

Feeding size (mm)

Discharging size (mm)

Capacity (t/h)

Power (kw)

Weight (t)

900*1800

36-38

1.5

<=20

0.075-0.89

0.65-2

18.5

4.6

900*3000

36

2.7

<=20

0.075-0.89

1.1-3.5

22

5.6

1200*2400

36

3

<=25

0.075-0.6

1.5-4.8

30

12

1200*3000

36

3.5

<=25

0.074-0.4

1.6-5

37

12.8

1200*4500

32.4

5

<=25

0.074-0.4

1.6-5.8

55

13.8

1500*3000

29.7

7.5

<=25

0.074-0.4

2-5

75

15.6

1500*4500

27

11

<=25

0.074-0.4

3-6

90

21

1500*5700

28

12

<=25

0.074-0.4

3.5-6

130

24.7

1830*3000

25.4

11

<=25

0.074-0.4

4-10

130

28

1830*4500

25.4

15

<=25

0.074-0.4

4.5-12

155

32

1830*6400

24.1

21

<=25

0.074-0.4

6.5-15

210

34

1830*7000

24.1

23

<=25

0.074-0.4

7.5-17

245

36

2100*3000

23.7

15

<=25

0.074-0.4

6.5-36

210

34

2100*4500

23.7

24

<=25

0.074-0.4

8-43

245

42

2100*7000

23.7

26

<=25

0.074-0.4

8-48

280

50

2200*4500

21.5

27

<=25

0.074-0.4

9-45

280

48.5

2200*6500

21.7

35

<=25

0.074-0.4

14-26

370

52.8

2200*7000

21.7

35

<=25

0.074-0.4

15-28

380

54

2200*7500

21.7

35

<=25

0.074-0.4

15-30

380

56

2400*4500

21

30

<=25

0.074-0.4

8.5-60

320

65

2700*4000

20.7

40

<=25

0.074-0.4

12-80

400

94

2700*4500

20.7

48

<=25

0.074-0.4

12-90

430

102

3200*4500

18

65

<=25

0.074-0.4

Upon the process

800

137

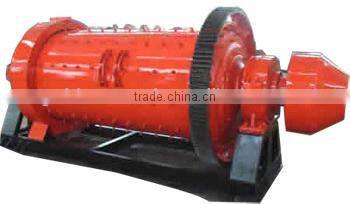

Ball Mill
