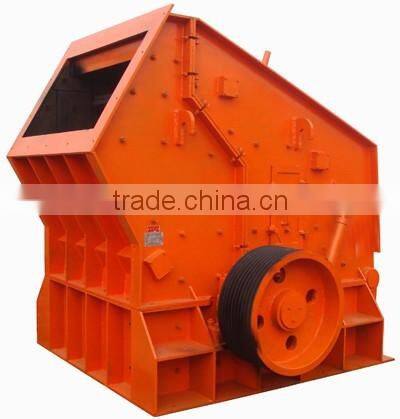

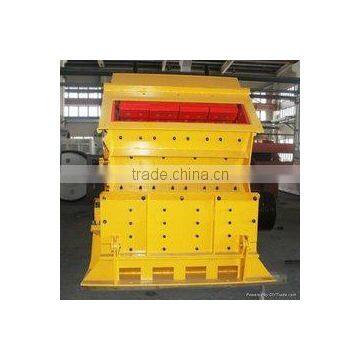

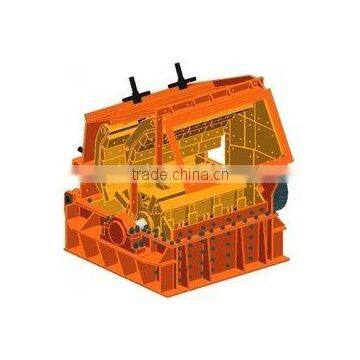

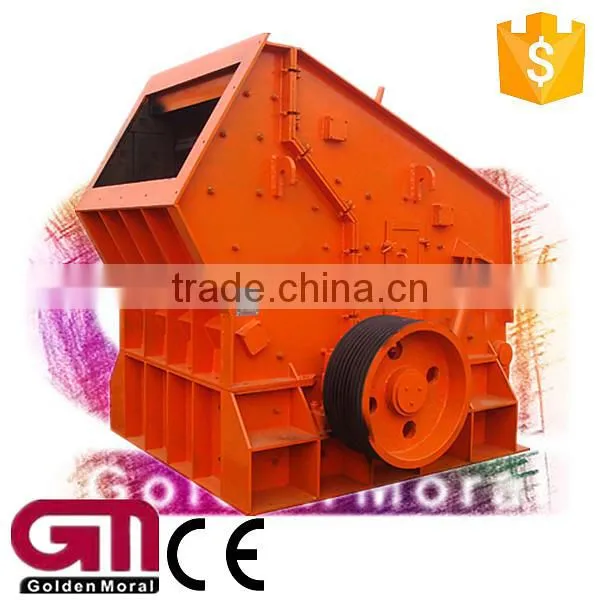

Impact Crusher :
We have the most advanced impact crusher, and thousands of Hongji PF Series impact crusher has been all over the world since Hongji Group built in 1960. As a kind of crushing machinery, impact crusher is an ideal equipment and it is widely used for the coarse, medium, fine crushing of materials with a size less than 500mm and a compressive strength no more than 350MPa such as the granite, limestone, concrete and so on in the mining, railway, high-way construction,water conservancy, cement, chemical, construction and other industries. And the size of its discharging is adjustable and the crushing specification is diversified.
Features of Impact Crusher:
1. High efficiency and energy saving;
2. No-board connection and the liner board is made of wearable materials;
3. Chrome hammer and special designed tooth impact plate;
4. Cubical final product and the discharging size is adjustable;
5. Easy to maintain,convenient to operate;
6. More suitable for crushing hard rock.
Technical Parameters of Impact Crusher:
Model |
specifications (mm) |
Feeding size(mm) |
Biggest size of material(mm) |
Capacity(t/h) |
Motor power(kw) |
PF-0607 |
Dia 644*740 |
320*770 |
100 |
10-20 |
30 |
PF-0807 |
Dia 850*700 |
400*730 |
300 |
15-30 |
30-45 |
PF-1008 |
Dia1000*800 |
400*830 |
300 |
30-50 |
37-55 |
PF-1010 |
Dia1000*1050 |
400*1080 |
350 |
50-80 |
55-75 |
PF-1210 |
Dia1250*1050 |
400*1080 |
350 |
70-120 |
110-132 |
PF-1212 |
Dia1250*1250 |
400*1300 |
350 |
100-150 |
132-160 |
PF-1214 |
Dia1250*1400 |
400*1430 |
400 |
130-180 |
160-200 |
PF-1315 |
Dia1320*1500 |
860*1520 |
500 |
160-250 |
180-260 |
PF-1320 |
Dia1320*2000 |
860*2030 |
500 |
300-350 |
300-375 |
