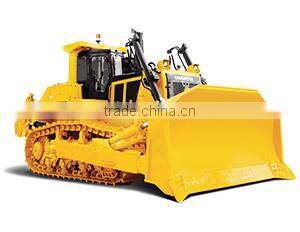

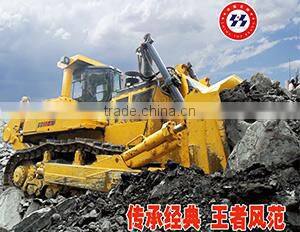

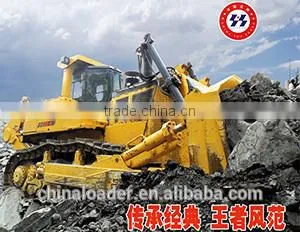

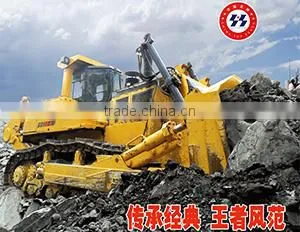

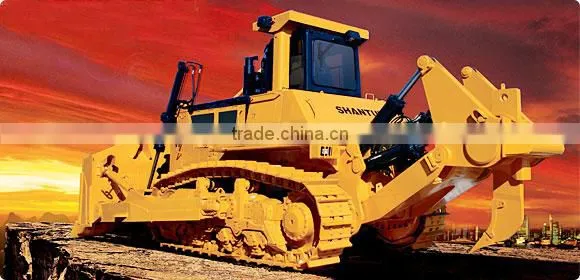

SHANTUI BULLDOZER SHANTUI 67.5T BULLDOZER SD52-5 BULLDOZER
SD52-5 crawler bulldozers, adopts modular structure, a large number of application of advanced technology such as energy saving, noise reduction, the whole machine is powerful, high reliability.This equipment can adapt to more bad work environment, is a mining, water conservancy construction and other projects in the earthwork shovel, rock stripping of large mechanical equipment.
| ITEM | UNIT | SD52-5 |
|---|---|---|
| L×W×H(Ripper not included) | mm | 10420×4680×4470 (Ripper included) |
| Operating weight(Ripper not included) | t | 67.5(Ripper included) |
| Engine | - | Cummins QSK19 |
| Engine Emission standard | - | Euro III |
| Rated power | kW/rpm | 392/1800 |
| Gradeability | ° | 30 |
| Blade type | - | Semi-U blade |
| Blade width | mm | 4695×2265 |
| Dozing capacity | m3 | 18.5 |
| Ma× drop below ground of blade | mm | 720 |
| Lift height of blade | mm | 1660 |
| Ripper type | - | Single ripper |
| Ripping depthof ripper | mm | 1435 |
| Lifting height of ripper | mm | 1105 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 40 |
| Width of track shoe | mm | 610 |
| Track gauge | mm | 2500 |
| Ground length and ground pressure | mm/MPa | 3940-0.138 |
| Pitch | mm | 280 |
| Forward speed | km/h | 0–3.8 |
| 0–6.8 | ||
| 0–11.8 | ||
| Reverse speed | km/h | 0–5.1 |
| 0–9.2 | ||
| 0–15.8 |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
We, Shandong Senxin Construction Machinery Group Company is the top professional supplier of the heavy equipment and the related spare parts, including wheel loader, excavator, bulldozer, road roller, backhoe loader, crane etc., cover the brands of SDLG,XCMG,SHANTUI,CHANGLIN,LIUGONG,ZF,HANGCHI,ADVANCE,WEICHAI,DEUTZ,YUCHAI,SHANGCHAI,CUMMING etc.
As one-stop professional service supplier, SENXIN is committed to offer high quality, reliable products and service on time, on delivery and on budget, to keep your project running smoothly. Since year 2006, our well-coordinated and expertly managed operation system and professional team make us turn orders into final products and delivery them to 30 countries and regions globally.
Welcome to visit SENXIN.
