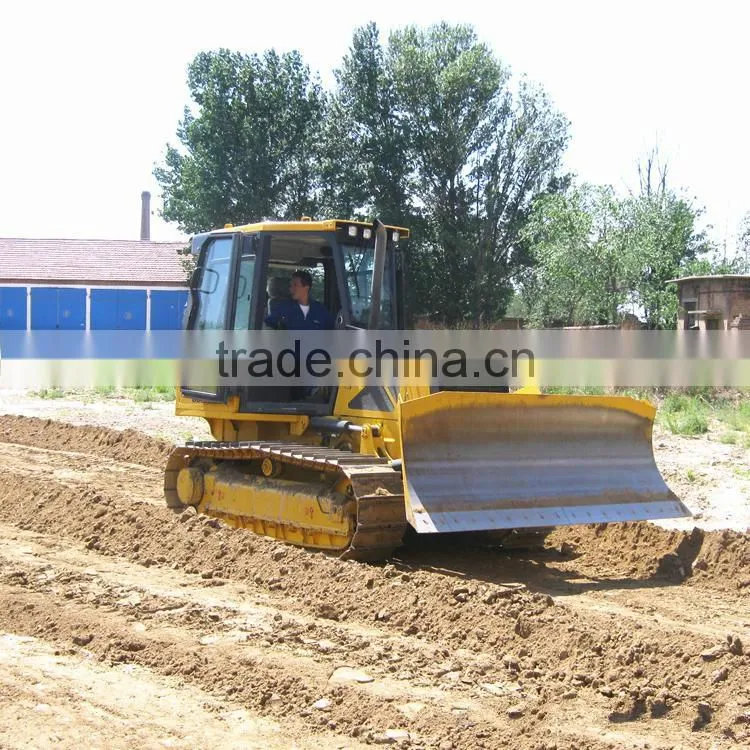

Help CenterChina Bulldozer Shantui Sd08-3 Bulldozer With Good Brand
Related Products
-
Good Brand Shantui 100HP Bulldozer SD10YE for Hot SellUS$ 110,000 - 130,000MOQ: 1 Unit -
The Hot Sell SHANTUI SD13 Bulldozer and PartsUS$ 30,000 - 100,000MOQ: 1 Unit
-
SHANTUI Bulldozer SD16US$ 40,000 - 50,000MOQ: 1 Unit
-
SHANTUI Bulldozer SD16 for SaleUS$ 40,000 - 50,000MOQ: 1 Unit
-
SHANTUI Bulldozer SD16 and Spare PartsUS$ 40,000 - 50,000MOQ: 1 Unit
The turbo charged engine features strong power, high efficiency and energy saving capabilities, and has a large torque reserve coefficient;
The extended track ensures low ground pressure, high reliability and strong traction;
The planetary power shift transmission features a compact structure, smooth gear shifting, high efficiency and a long service life;
Forward and reverse motion, gear shifting and steering are all controlled by a single PPC lever;
Integrated dashboard design makes observation of machine processes more logical;
The hexahedron cab has a beautiful appearance, wide visibility and is very comfortable;
Equipped with a straight angle blade, which is used for excavating, transporting, and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.
| ITEM | UNIT | SD08-3 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 3973×2553×2785 |
| Operating weight (Ripper not included) | t | 7.65 |
| Engine | - | Weichai WP4G90E235 |
| Rated power | kW/rpm | 63/2350 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade |
| Blade width | mm | 2553×890 |
| Dozing capacity | m3 | 2.02 |
| Ma× drop below ground of blade | mm | 383 |
| Lift height of blade | mm | 850 |
| Ripper type | - | - |
| Ripping depth of ripper | mm | - |
| Lifting height of ripper | mm | - |
| Number of carriers (each side) | - | 1 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 460 |
| Track gauge | mm | 1450 |
| Ground length and ground pressure | mm/MPa | 2185-0.038 |
| Pitch | mm | 154.25 |
| Forward speed | km/h | 0–2.53 |
| 0–4.55 | ||
| 0–7.57 | ||
| Reverse speed | km/h | 0–2.76 |
| 0–4.95 |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
Shandong Senxin Group & Hydraulic Co., Ltd. is a professional manufacturer, has been engaging in producing a wide range of replacements parts for hydraulic pumps and motors for various heavy construction equipments and industry machinery .
We sincerely hope this brochure will be helpful for you to understand our scope of products and we will put top priority on the quality assurance to meet your needs at the right time with competitive price and prompt delivery.
