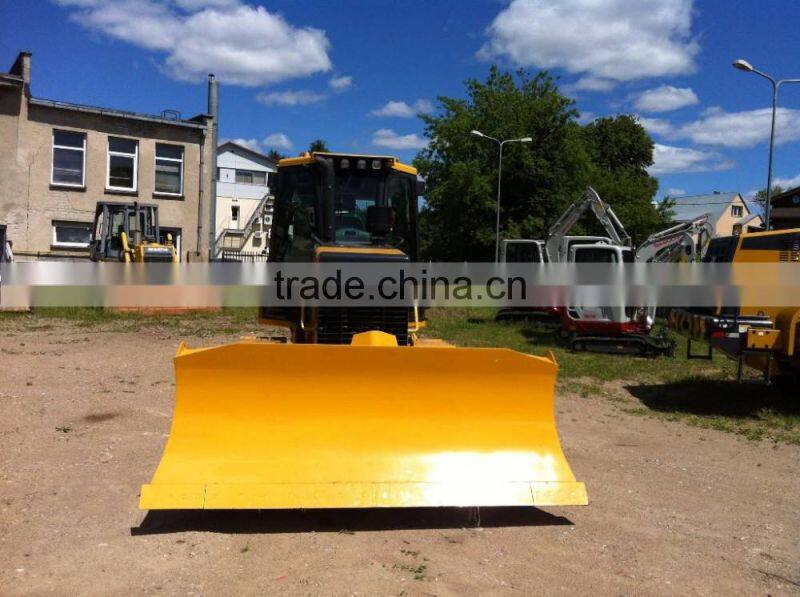

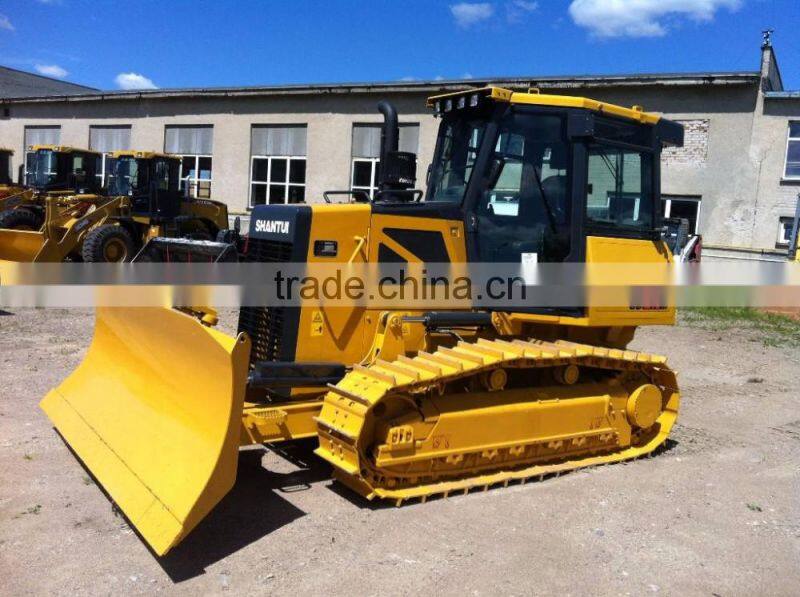

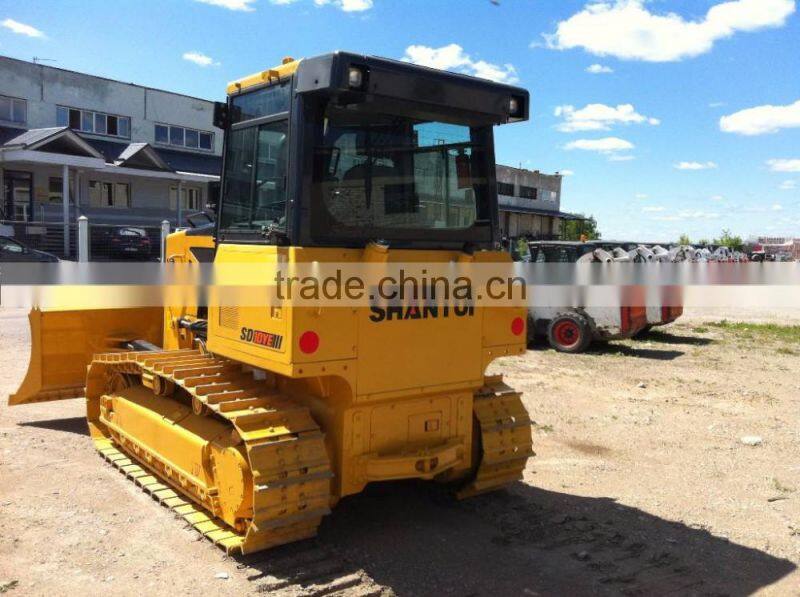

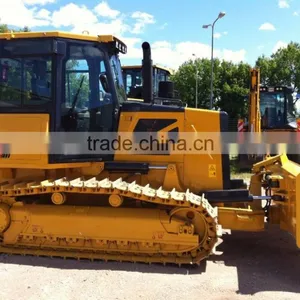

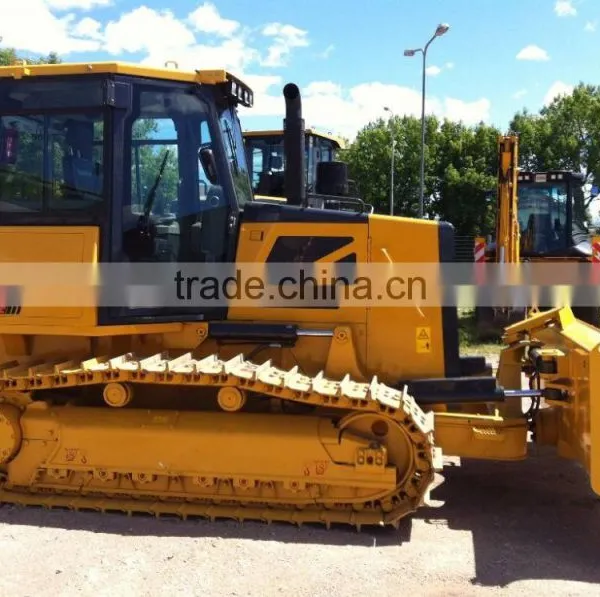

Help CenterGood Brand Shantui 100HP Bulldozer SD10YE for Hot Sell
Related Products
-
The Hot Sell SHANTUI SD13 Bulldozer and PartsUS$ 30,000 - 100,000MOQ: 1 Unit -
SHANTUI Bulldozer SD16US$ 40,000 - 50,000MOQ: 1 Unit
-
SHANTUI Bulldozer SD16 for SaleUS$ 40,000 - 50,000MOQ: 1 Unit
-
SHANTUI Bulldozer SD16 and Spare PartsUS$ 40,000 - 50,000MOQ: 1 Unit
-
SHANTUI SD42-3 53T BulldozerUS$ 300,000 - 500,000MOQ: 1 Unit
SD10YE crawler hydraulic bulldozer, integrates with independent intellectual property rights of hydrostatic driving integrated control, low emission engine control, thermal management, fault automatic analysis technology, implementation of efficient, intelligent machine.
The machine to fill the domestic blank, reached the international advanced level, through the eu CE certification, and North America.
Optional SD10YS wetland type bulldozer.
Technical features:
Low turbocharged inter-cooled electronic control diesel engine, is empty, emissions in accordance with EPA Tier 3 / EU Stage IIIA standards, excellent performance, fuel economy and durability.
Double circuit electronic control hydrostatic drive system, automatically adjust the power output and speed to adapt to changes in load; To independent drive on both sides of the track, ensure the full power of output, can be realized on both sides of the track of reverse rotation; A complete "stepless speed change characteristics of different working conditions, provide the best speed.
Palm instruction electronic control system, on the left side of the handle control machine driving direction and speed; The action on the right side of the handle control device; Accurate operation, flexible, convenient and comfortable.
Low chassis structure, high strength meets the demand of working condition of overloading, strong and durable.
Intelligent integrated thermal management system, realize the optimum temperature control, noise reduction and energy saving.
Intelligent service system, with functions of the automatic detection, automatic fault diagnosis, provide remote technical support.
Prevent roll/prevent falling object suspension bridge, suspension seat, large capacity air conditioning, to provide a safe, comfortable and spacious operating environment; Quiet, eye shot is open.
Modular round edge reduction system, high intensity, long service life, convenient maintenance.
Low mass, high strength, multi-function, adjustable power shovel, can be used for excavation, backfilling, fine or overloading operations such as form, smooth, strong and durable, high production efficiency.
| ITEM | UNIT | SD10YE |
| L×W×H (Ripper not included) | mm | 4285×2740×2777 |
| Operating weight (Ripper not included) | t | 9.1 |
| Engine | - | CUMMINS QSB4.5 |
| Rated power | kW/rpm | 74/2200 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade |
| Blade width | mm | 2740×890 |
| Dozing capacity | m3 | 2.2 |
| Ma× drop below ground of blade | mm | 440 |
| Lift height of blade | mm | 890 |
| Ripper type | - | - |
| Ripping depth of ripper | mm | - |
| Lifting height of ripper | mm | - |
| Number of carriers (each side) | - | 1 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 39 |
| Width of track shoe | mm | 460 |
| Track gauge | mm | 1650 |
| Ground length and ground pressure | mm/MPa | 2360-0.04 |
| Pitch | mm | 171.45 |
| Forward speed | km/h | 0–4.3 |
| 0–6.5 | ||
| 0–8.5 | ||
| Reverse speed | km/h | 0–4.3 |
| 0–6.5 |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
Shandong Senxin Group & Hydraulic Co., Ltd. is a professional manufacturer, has been engaging in producing a wide range of replacements parts for hydraulic pumps and motors for various heavy construction equipments and industry machinery .
We sincerely hope this brochure will be helpful for you to understand our scope of products and we will put top priority on the quality assurance to meet your needs at the right time with competitive price and prompt delivery.
