The Hot Sell SHANTUI SD13 Bulldozer And Parts
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SHANTUI | |
| Model Number | SD13 | Condition | New | |
| Moving Type | Crawler Bulldozer | Machine Weight | 13.7 Ton | |
| Dimension(Long * Breadth * High) | 4492*3185*2950mm | After-sales Service Provided | Overseas third-party support available |
Product Description
1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2.The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4.The single control lever can control all blade actions;
5.The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6.The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7.The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8.The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9.Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient
| ITEM | UNIT | SD13 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 4492×3185×2950 |
| Operating weight (Ripper not included) | t | 13.7 |
| Engine | - | Shangchai SC8D143G2B1 |
| Rated power | kW/rpm | 95.5/1900 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade Angle blade |
| Blade width | mm | Straight tilt blade 3185×1090 Angle blade 3475×915 |
| Dozing capacity | m3 | Straight tilt blade 3.7 Angle blade 3.4 |
| Ma× drop below ground of blade | mm | 590 |
| Lift height of blade | mm | 930 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 467 |
| Lifting height of ripper | mm | 559 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 38 |
| Width of track shoe | mm | 460 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2365-0.063 |
| Pitch | mm | 190 |
| Forward speed | km/h | 0–3.2 |
| 0–5.9 | ||
| 0–9.8 | ||
| Reverse speed | km/h | 0–3.9 |
| 0–7.1 |

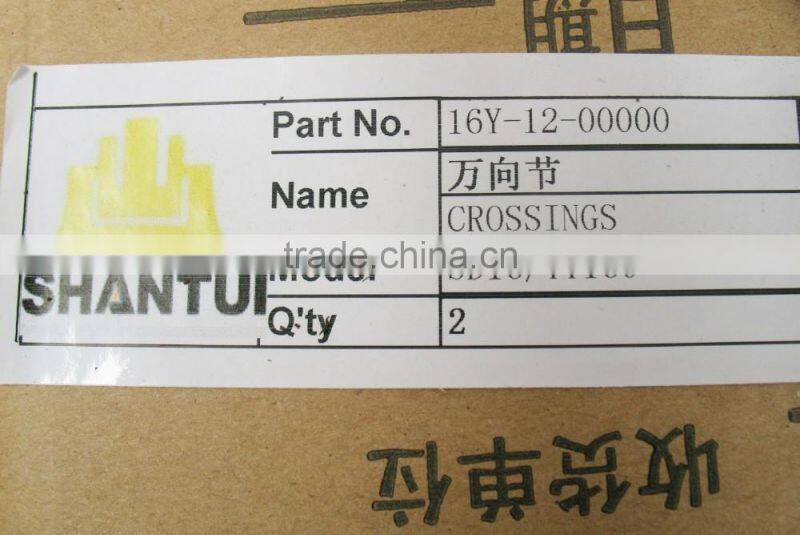

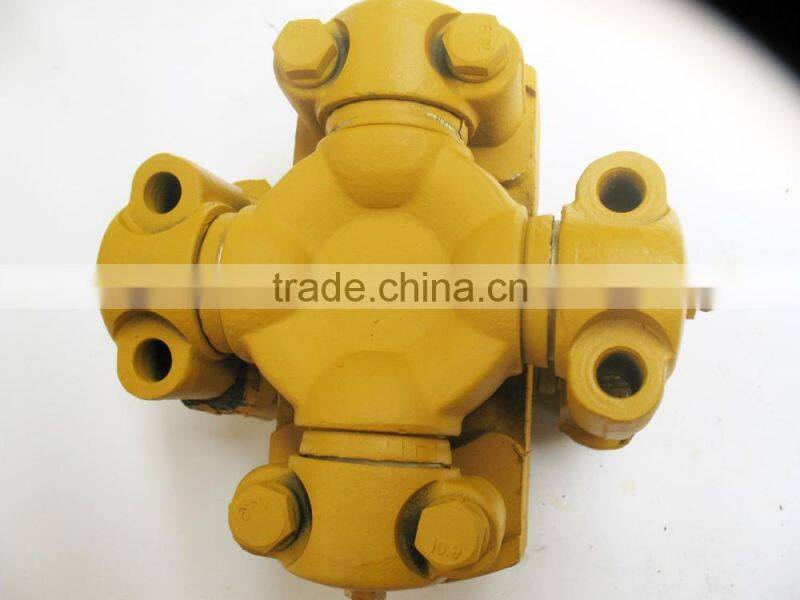

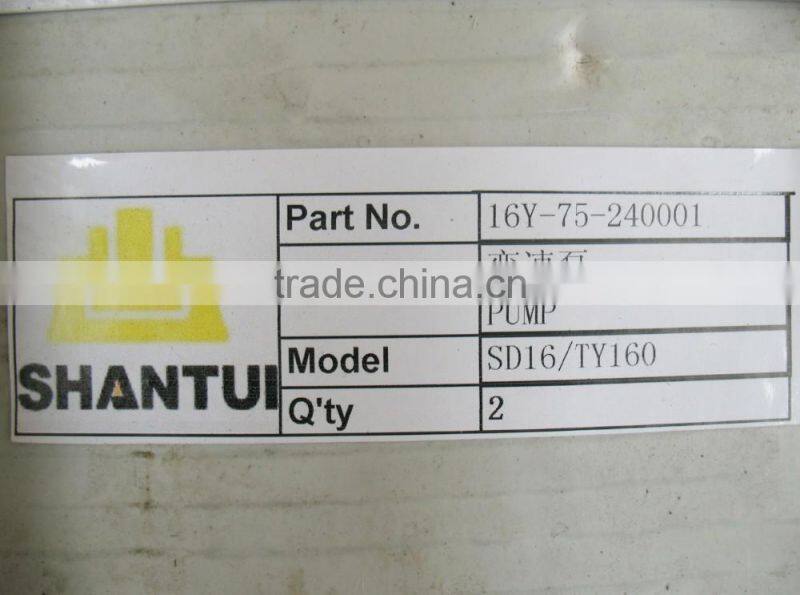

SHANTUI BULLDOZER SD13/SD16/SD22/SD23/SD32/SD42 PARTS:
Our Services
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
Shandong Senxin Group & Hydraulic Co., Ltd. is a professional manufacturer, has been engaging in producing a wide range of replacements parts for hydraulic pumps and motors for various heavy construction equipments and industry machinery .
We sincerely hope this brochure will be helpful for you to understand our scope of products and we will put top priority on the quality assurance to meet your needs at the right time with competitive price and prompt delivery.
