XY series Water Well Rig Drilling Machine for Sale Introduction
XY series Water Well Rig Drilling Machine for Sale
XY series Water Well Rig Drilling Machine for Sale is newly designed deep hole drilling equipment with large inner diameter of spindle. It can make small hole drilling with diamond bits, as well as large hole drilling with carbide with bits. It is mainly used for exploration of solid metal and nonmetal deposits. It can also used for exploration of hydrology, oil and gas, engineering drilling. This machine can make vertical and inclined drilling.
XY series Water Well Rig Drilling Machine for Sale
Powerful output design, large spindle torque.
Large inner diameter of spindle, Double feeding cylinders and long stoke.
Great clamping force of chuck.
Hoist in horizontal arrangement, high lifting capacity and convenient operations.
XY series Water Well Rig Drilling Machine for Sale Main Parameter
XY-8 | |
Drilling Depth(m) | 1000-3000 |
Drilling Rod(mm) | 50.5, 60, 71, 73,89,114 |
Drilling Angle | 90-80 |
Spindle Speed(r/min) | Forwards 79,137,213,223,366,384,604,1024 Reverse 51,144 |
Pulling Capacity(kN) | 300 |
Feeding Capacity(kN) | 142 |
Feeding Stroke(mm) | 1000 |
Max Single-line Hoisting Force(kN) | 130 |
Lifting Speed(m/s) | 0.57-7.58 |
Steel Wire(mm) | 21.5 |
Rope Capacity(m) | 160 |
Skidding Cylinder Stroke(mm) | 690 |
Motor Engine | 90kW Y2280M-4 |
Diesel Engine | 132kW 6BTA5.9-C180 |
Weight(t) | 7.8 |
Dimensions(L*W*H)(mm) | 4049*1754*2593 |

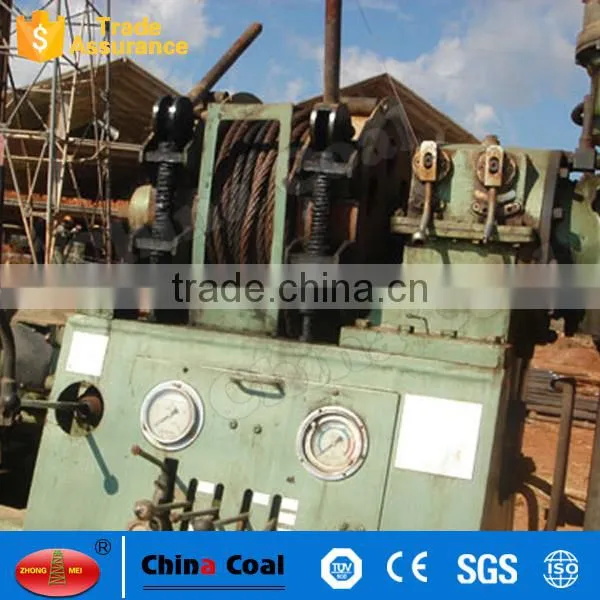

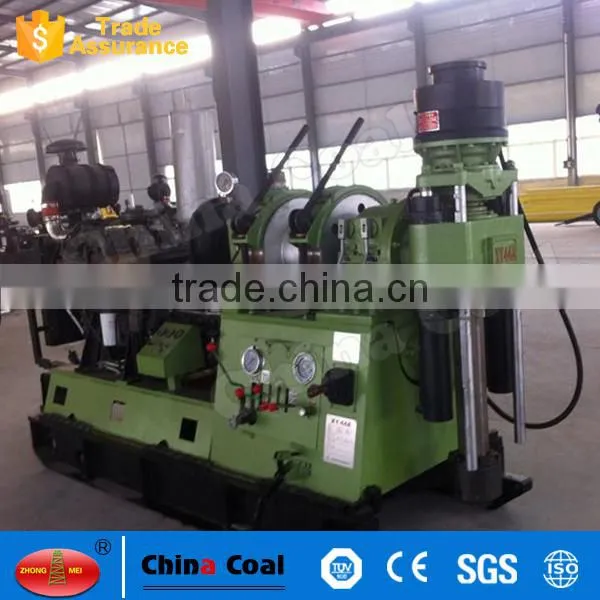

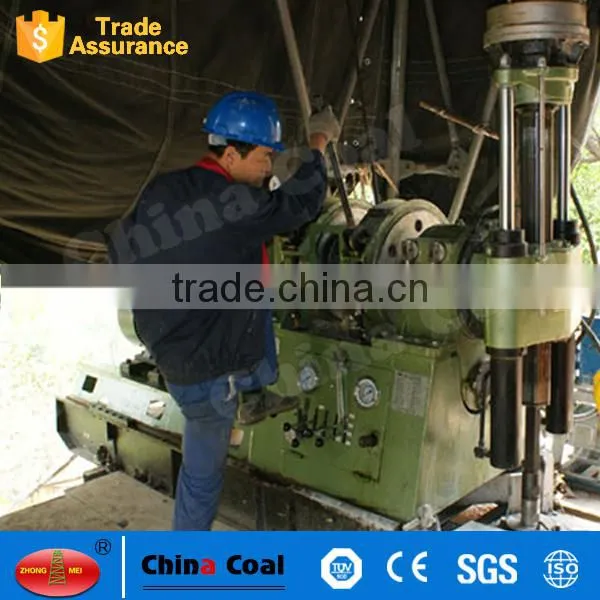

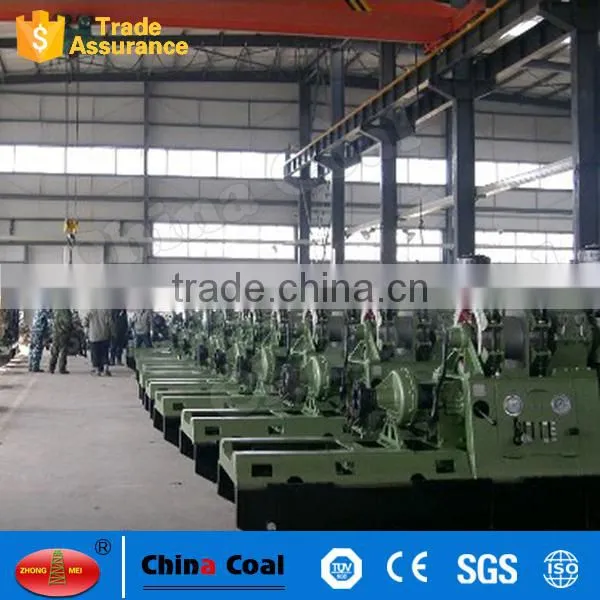

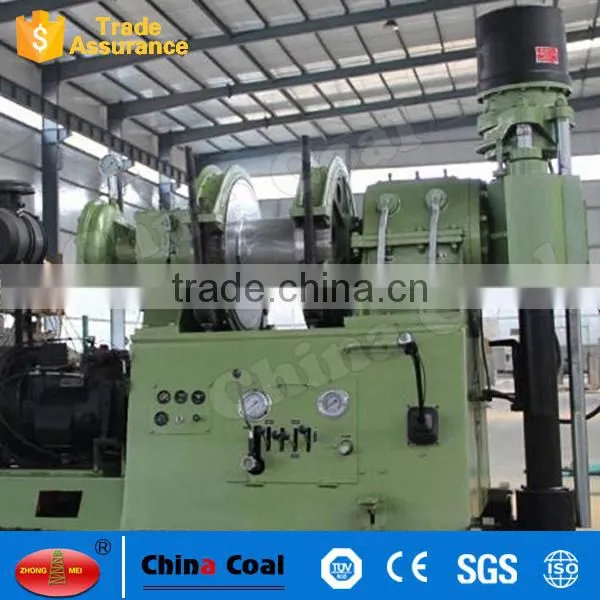

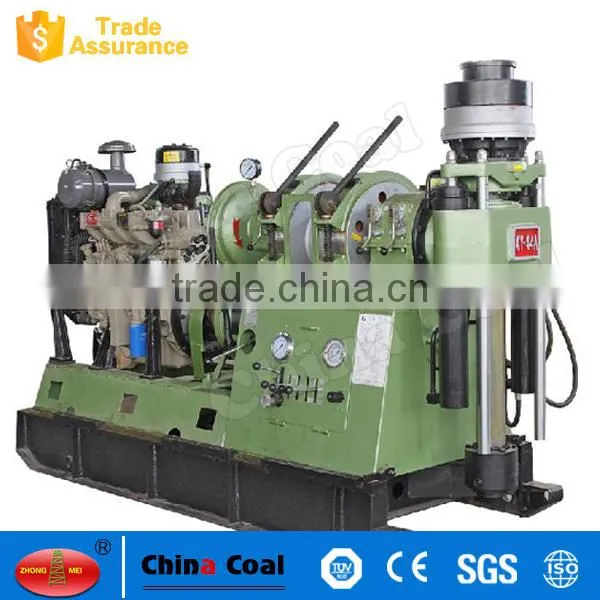

XY series Water Well Rig Drilling Machine for Sale Photos
