Cheap Price Water Well Drilling Machinery for 1000-3000m Depth
- Qingdao Shanghai Ningbo Shenzhen
- Credit Card
You May Like
-
XY- 8 Portable Water Well Rig Drilling Machine for Sale
-
Factory Price XY 2 Water Bore Well Drilling Rig Machine for Sale
-
XY 3 Portable Water Well Drilling Rig Machine for Sale
-
3000m Depth Portable Water Well Rig Drilling Machine for Sale
-
150m China Manufacturer Water Well Borehole Drilling Rig For Sale
-
Used Water Drilling Machine,Deep Rock Well Drilling Machine
Product Details
| Condition | New | Type | Other, Water Well Rig Drilling Machine | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | China Coal | Model Number | XY-8 | |
| Usage | Water Well | Voltage | 380V | |
| Power(W) | 90kW | Dimension(L*W*H) | 4049*1754*2593mm | |
| Weight | 7.8t | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
XY- 8 Portable Water Well Rig Drilling Machine Introduction
XY- 8 Portable Water Well Rig Drilling Machine
XY- 8 Portable Water Well Rig Drilling Machine is newly designed deep hole drilling equipment with large inner diameter of spindle. It can make small hole drilling with diamond bits, as well as large hole drilling with carbide with bits. It is mainly used for exploration of solid metal and nonmetal deposits. It can also used for exploration of hydrology, oil and gas, engineering drilling. This machine can make vertical and inclined drilling.
XY- 8 Portable Water Well Rig Drilling Machine
Powerful output design, large spindle torque.
Large inner diameter of spindle, Double feeding cylinders and long stoke.
Great clamping force of chuck.
Hoist in horizontal arrangement, high lifting capacity and convenient operations.
XY- 8 Portable Water Well Rig Drilling Machine Main Parameter
XY-8 | |
Drilling Depth(m) | 1000-3000 |
Drilling Rod(mm) | 50.5, 60, 71, 73,89,114 |
Drilling Angle | 90-80 |
Spindle Speed(r/min) | Forwards 79,137,213,223,366,384,604,1024 Reverse 51,144 |
Pulling Capacity(kN) | 300 |
Feeding Capacity(kN) | 142 |
Feeding Stroke(mm) | 1000 |
Max Single-line Hoisting Force(kN) | 130 |
Lifting Speed(m/s) | 0.57-7.58 |
Steel Wire(mm) | 21.5 |
Rope Capacity(m) | 160 |
Skidding Cylinder Stroke(mm) | 690 |
Motor Engine | 90kW Y2280M-4 |
Diesel Engine | 132kW 6BTA5.9-C180 |
Weight(t) | 7.8 |
Dimensions(L*W*H)(mm) | 4049*1754*2593 |

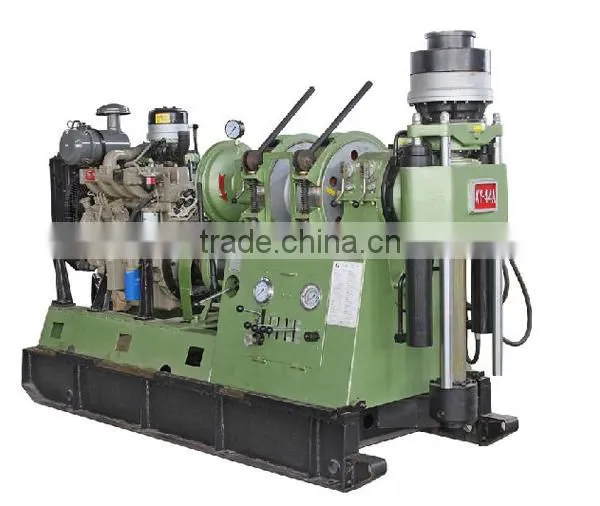

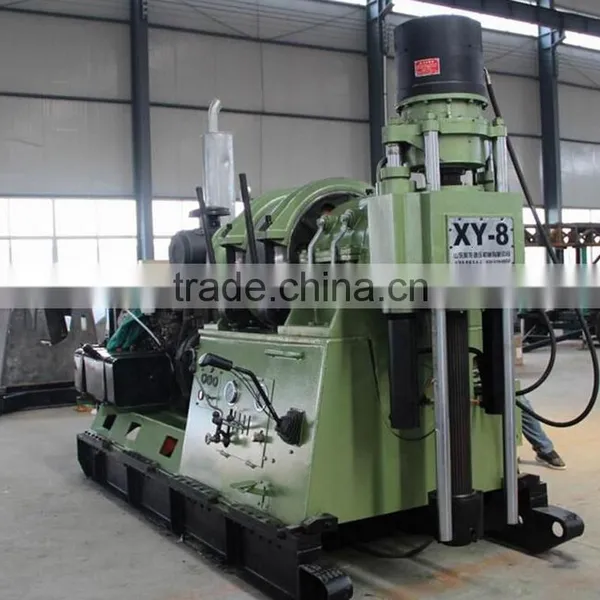

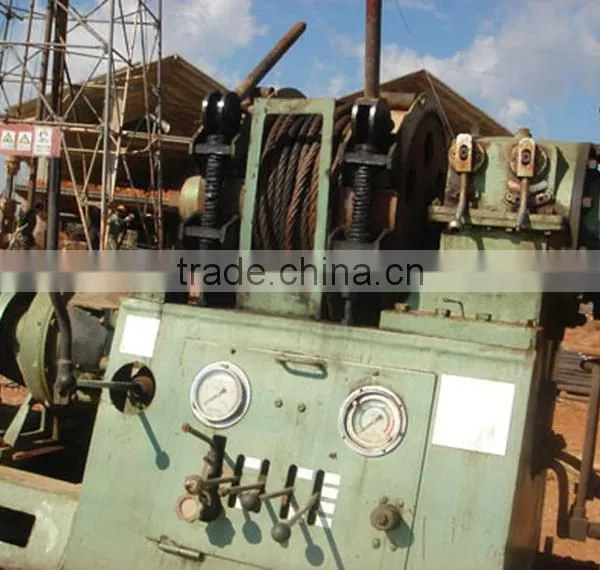

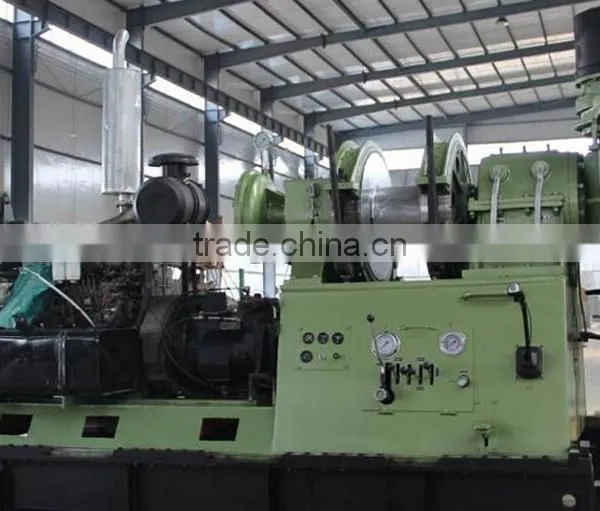

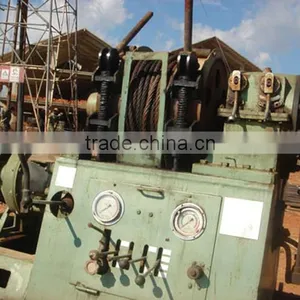

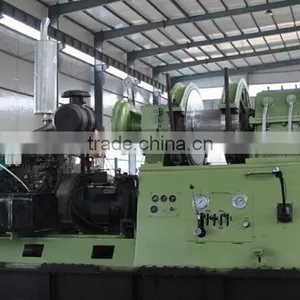

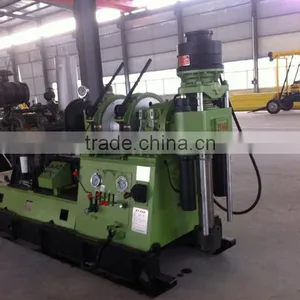

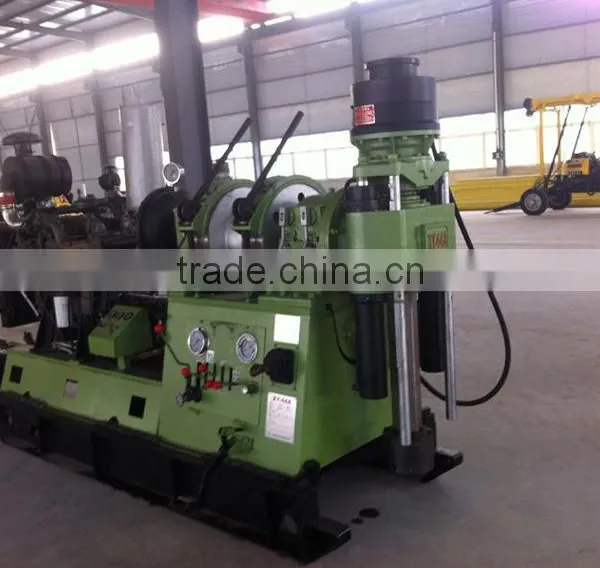

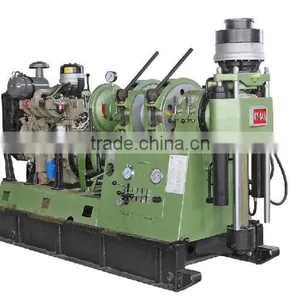

XY- 8 Portable Water Well Rig Drilling Machine Photos
