XY 3 Portable Water Well Drilling Rig Machine for Sale
- 1000 Set / Sets per Month
- Qingdao Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
3000m Depth Portable Water Well Rig Drilling Machine for Sale
-
150m China Manufacturer Water Well Borehole Drilling Rig For Sale
-
Used Water Drilling Machine,Deep Rock Well Drilling Machine
-
Made by Shandong ChinaCoal Group XY-3B Horizontal Drilling Machine Water Well Drilling Rig
-
Tractor Borehole Exploration Water Well Drilling Rig Machine for Sale UK
-
ZGYX-421 Crawler mounted drill vehicle
Product Details
| Condition | New | Type | Other, Water Well Drilling Rig Machine | |
| Power Type | Electric | Place of Origin | Shandong, China | |
| Brand Name | China Coal | Model Number | XY-3 | |
| Usage | Other, Water Well Drilling Rig Machine | Voltage | 220V/380V | |
| Power(W) | 11kw | Dimension(L*W*H) | 2220x900x1800mm | |
| Weight | 1750kg | Certification | CE SGS BV TUV ISO MA | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
What is XY 3 Portable Water Well Drilling Rig Machine for Sale
XY 3 Portable Water Well Drilling Rig Machine for Sale
Have 8 postive rotation gear,high speed,strong torque,widely scope of application.
Equip hydraulic chuck,it can complete no-stopping rotating.
Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to
working conditions in plain and mountain areas.
Sprcifications of XY 3 Portable Water Well Drilling Rig Machine for Sale
Unity machine parameter | ||
Drilling depth | 600m | |
Open hole caliber | 300mm | |
End hole caliber | 75mm | |
Drilling angle | 90°~65° | |
Drill weight (No include power) | 1750kg(Electric Machinery) 1830kg(Diesel Engine) | |
Unity machine dimensions | 2220×900×1800mm | |
Distance away from hole | 280mm | |
Spindle | ||
Speed | ||
Forward | 57 99 157 270 470 742 1024 | |
Reverse | 45 212 | |
Stroke | 560mm | |
Spindle inner diameter | 96mm | |
Spindle lifting capacity | 6000kg | |
hoist | ||
Reel caliber | 200mm | |
Hug floodgate belt width | 90mm | |
Tightrope caliber | 12.5mm or 14mm | |
Rell cubic measure | 30m | |
Single line lifting speed | 0.515 0.894 1.421 1.948m/s | |
Max single line hoisting capacity | 3000kg | |
Oil pump | ||
F532/F314 | Duplex gear oil pump | |
Displacement | front 32L/min pressure 20Mpa | |
behind | 14L/min pressure 20Mpa | |
Power | ||
Diesel engine | 395Kz 27HP | |
Electric motor | Y180L-4 22kw | |
Suit scope | ||
Geological exploration,water and electricity engineering ,road and railroad construction, build engineering and big diameter water well construction project etc. | ||

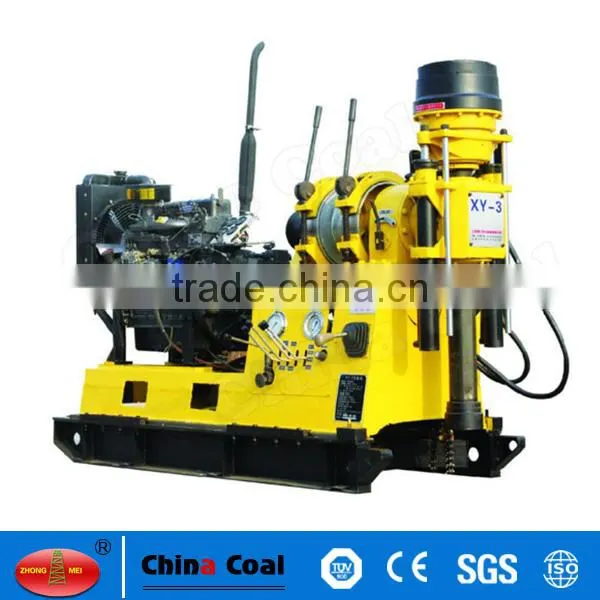

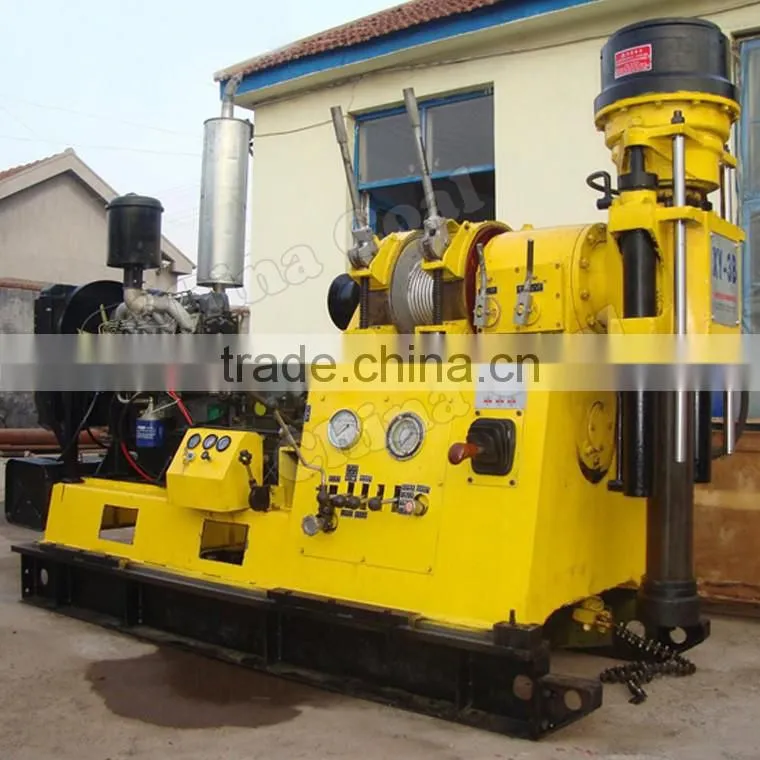

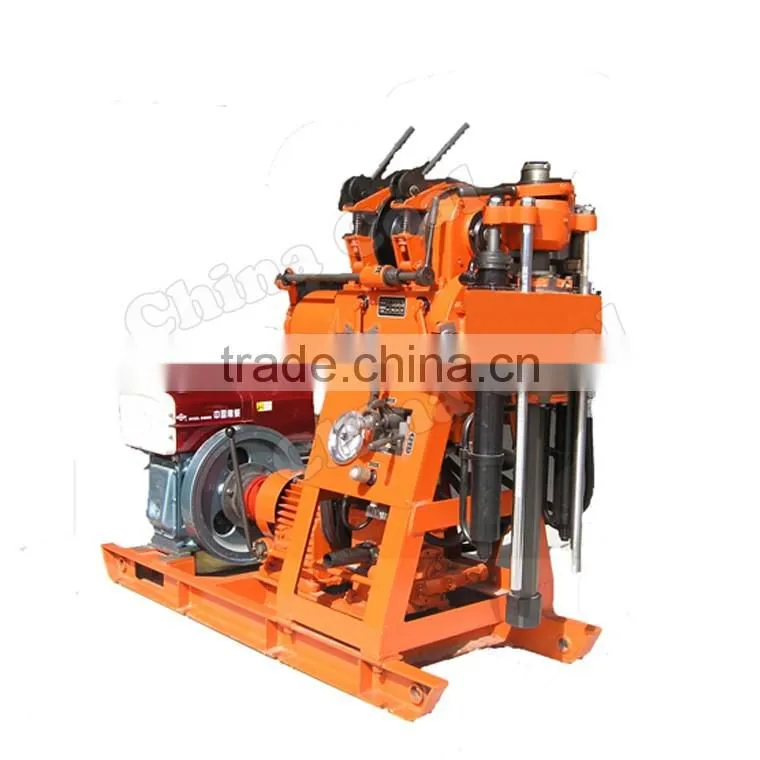

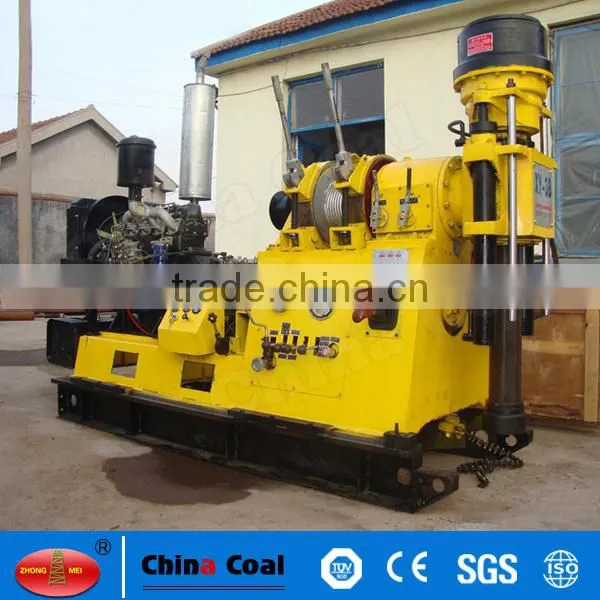

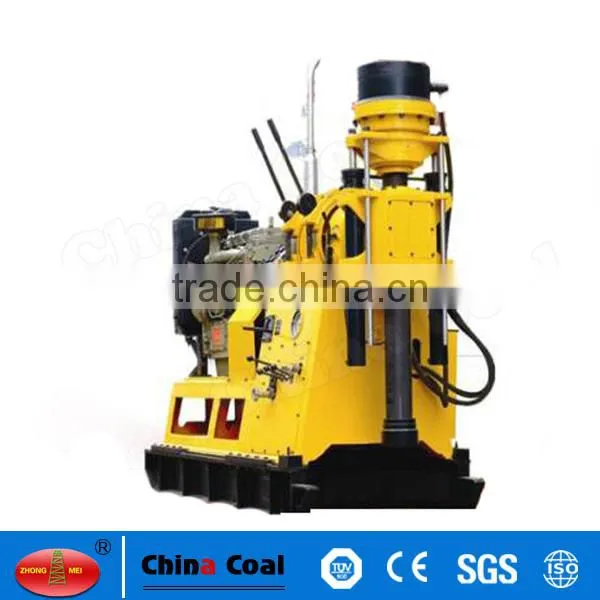

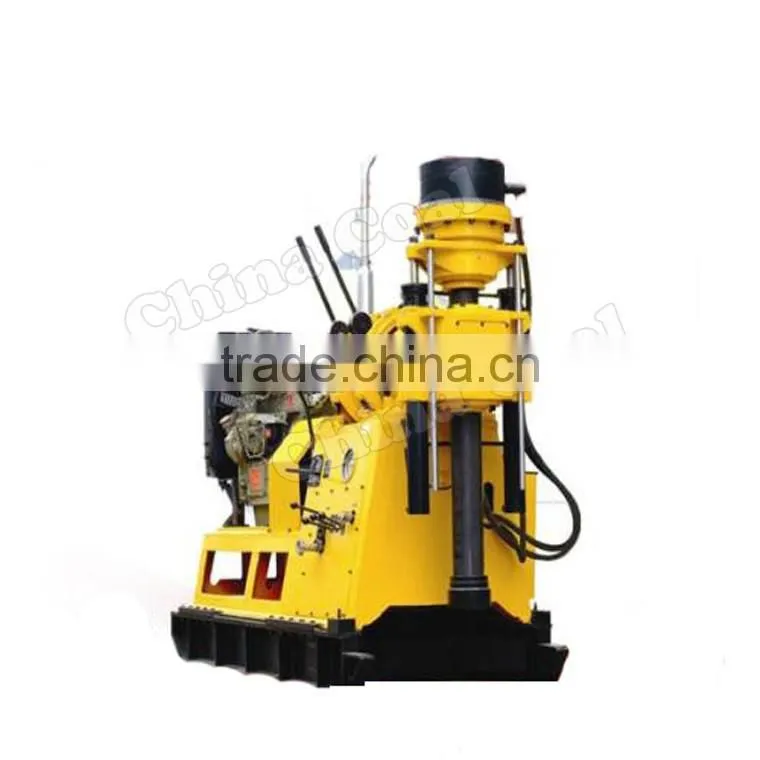

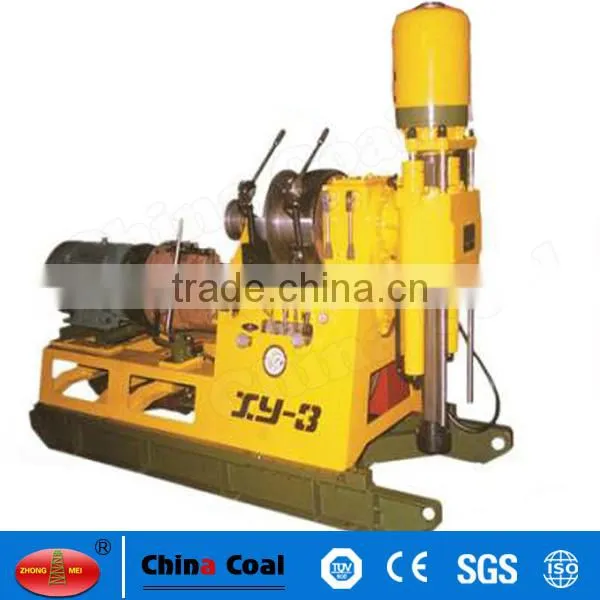

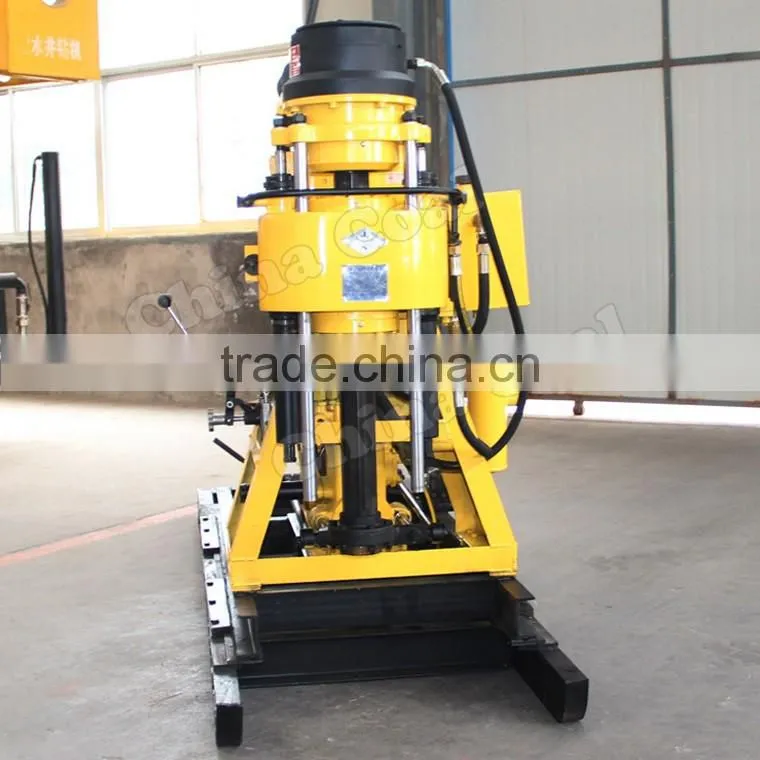

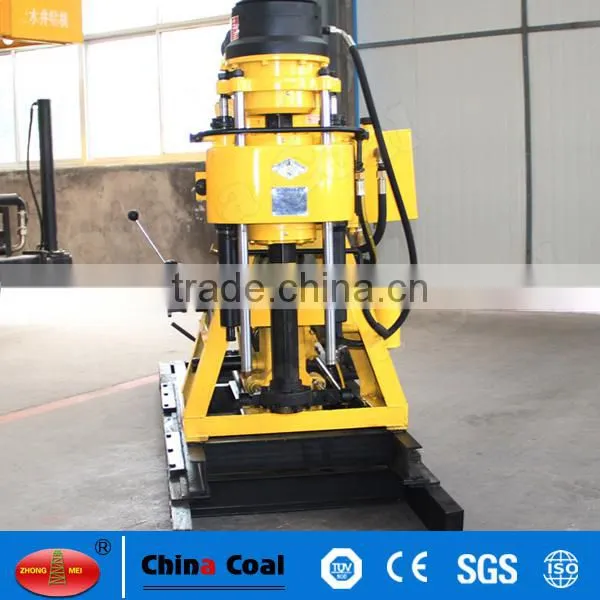

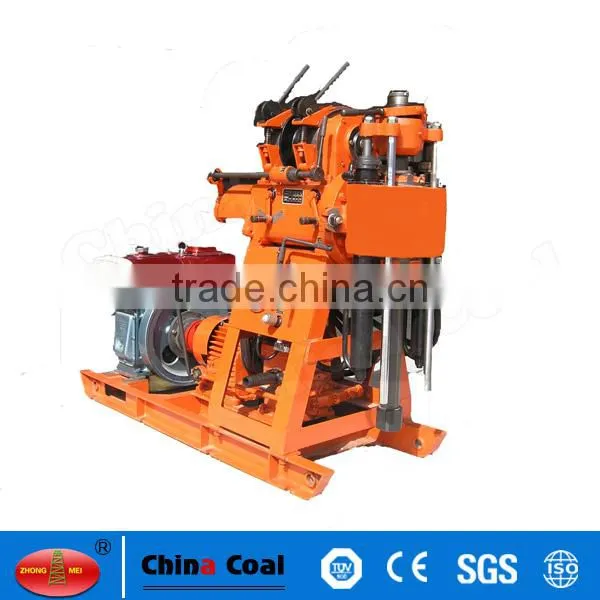

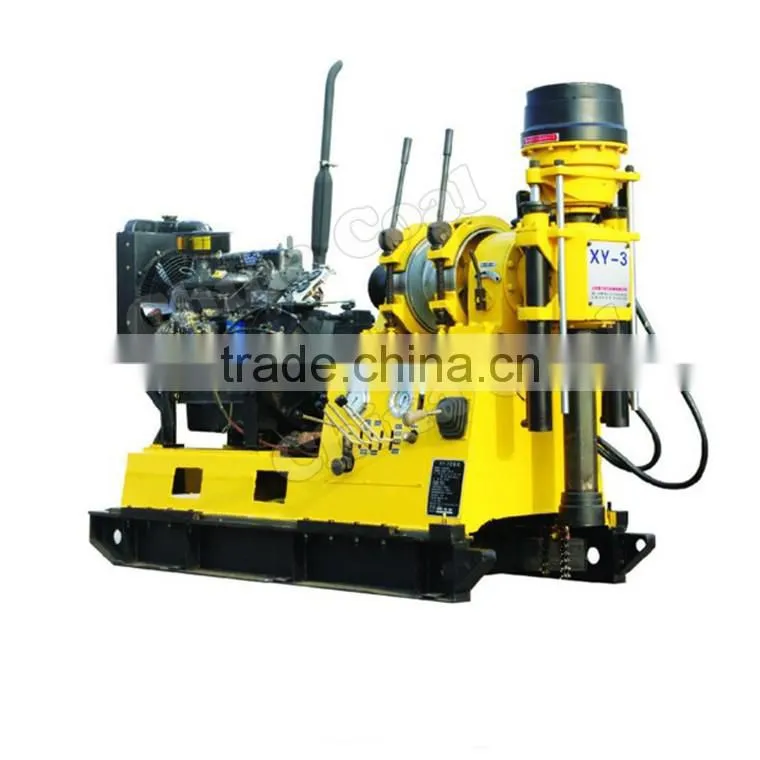

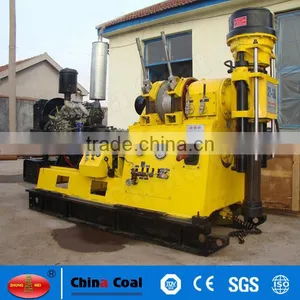

Pictures of XY 3 Portable Water Well Drilling Rig Machine for Sale
