Product Introduction
1) HAT-100 breathing air compressor,
which is commonly known as breathing air inflator, Germany advanced technology
and key components of domestic assembly from the compression and filling of
fresh air to the breathing cylinders. Compressor unit can of compressed air through
the second,three oil-water separator and filter, purify, output oil-free, no impurities,
nontoxic and tasteless high pressure breathing air hygiene. Provided to disaster relief,
firefighting, respiratory protective diving operations.
2) HAT -100 breathing air compressor is a compressed cylinder filling
the entire device to a pressure of 225 bar or 330 bar. Compressor three-cylinder,
3 compression, air-cooled, reciprocating piston compressor.
The drive device using a three-phase or single-phase motor.
Main Parameter
Major Components of breathing air compressor:
1. compressor
2. driving device
3. filter components
4. Filling components
5. backplane and chassis.
Main Technical Parameters:
Model | HAT-100 |
Air Displacement | 100 L/ min |
Safety Valve Pressure | 330 bar |
Sound Pressure | 86dB(A) |
Noise | 99 dB(A) |
Cylinder No. | 3 |
First Phase Cylinder Diameter | 60mm |
Second Phase Cylinder Diameter | 28mm |
Third Phase Cylinder Diameter | 12mm |
Piston Stroke | 24mm |
Compressor Oil Quantity | 360cm3 |
Outside Temperature | +5~45°C |
Compressor Allow Maximum Angle of Inclination | 10° |
Driving Device | Three Phase Alternator |
Working Pressure | 50Hz ,380V or 220V |
Power | 2.2KW |
Rotating Speed | 2850 r/ min |
Structure | B3 |
Protection Class | IP54 |

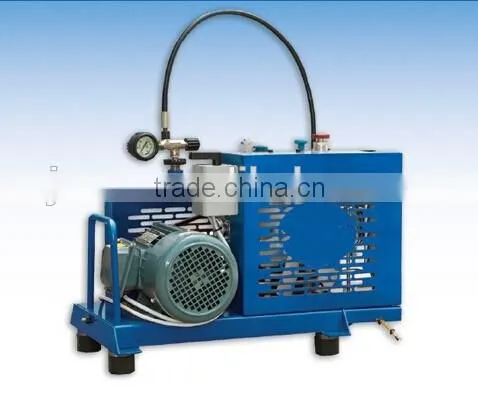

Figure Photos
Packaging
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s,registered capital is 138million yuan. The group total has 1100 employees,3 wholly owned subsidiaries and 18 professional branches.Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.
