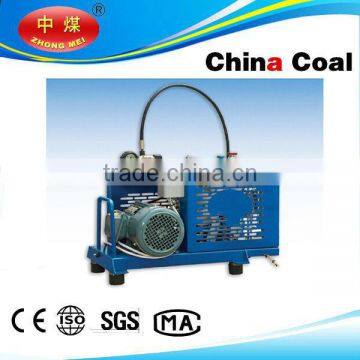

Product Name: Air breathing apparatus compressor
Company Name: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Appliance:
1) HAT-100 breathing air compressor, which is commonly known as breathing air inflator, Germany advanced technology and key components of domestic assembly from the compression and filling of fresh air to the breathing cylinders. Compressor unit can of compressed air through the second, three oil-water separator and filter, purify, output oil-free, no impurities, non-toxic and tasteless high pressure breathing air hygiene. Provided to disaster relief, firefighting, respiratory protective diving operations.
2) HAT -100 breathing air compressor is a compressed cylinder filling the entire device to a pressure of 225 bar or 330 bar. Compressor three-cylinder, 3 compression, air-cooled, reciprocating piston compressor. The drive device using a three-phase or single-phase motor.
Major Components of breathing air compressor:
1. compressor
2. driving device
3. filter components
4. Filling components
5. backplane and chassis.
Main Technical Parameters OF Air breathing apparatus compressor
Model | HAT-100 |
Air Displacement | 100 L/ min |
Safety Valve Pressure | 330 bar |
Sound Pressure | 86dB(A) |
Noise | 99 dB(A) |
Cylinder No. | 3 |
First Phase Cylinder Diameter | 60mm |
Second Phase Cylinder Diameter | 28mm |
Third Phase Cylinder Diameter | 12mm |
Piston Stroke | 24mm |
Compressor Oil Quantity | 360cm3 |
Outside Temperature | +5~45°C |
Compressor Allow Maximum Angle of Inclination | 10° |
Driving Device | Three Phase Alternator |
Working Pressure | 380V, 50Hz |
Power | 2.2KW |
Rotating Speed | 2850 r/ min |
Structure | B3 |
Protection Class | IP54 |
Note:
If you are interested in this product, or if you are interested in our company, pls feel free to contact me. Thanks.
