MCH-6 300bar air compressor for breathing air/blue frame Introduction
Contact for more models and prices
300bar Air compressor
Charging rate: 100 L/min
Working pressure: 225 Bar - 300 Bar
Driven by: Three phase electric motor
MCH6 Compressor is the smallest, lightest portable breathing air compressor in the whole industry,
the petrol engine of MCH6 series only 37KG,can easily put in the trunk of the car,carry to use the site. It can be used in the fire, scuba diving, shooting, emergency rescue, chemical, oil field and other fields. MCH6 has high quality and its character of portable and simple design. The output of compressed air meets the criterion of EN12021.

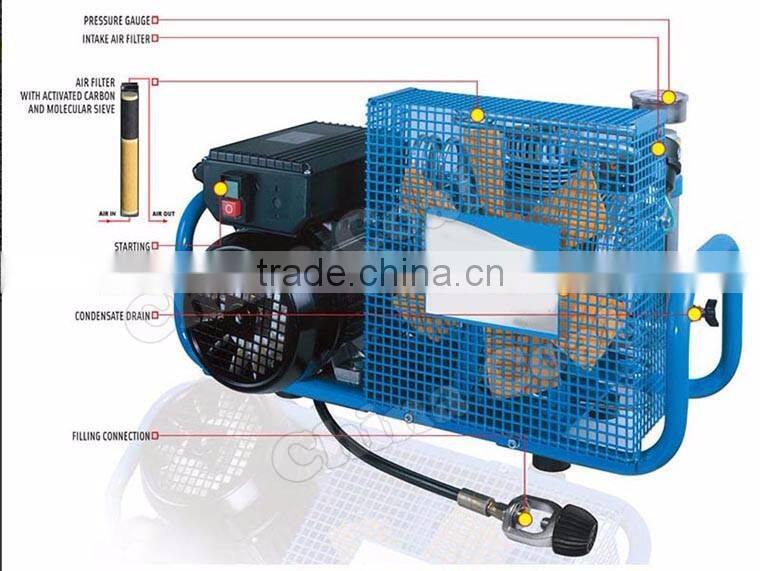

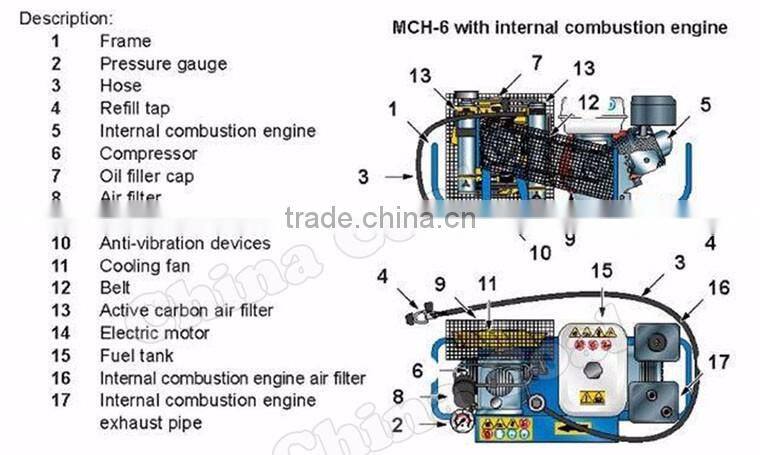

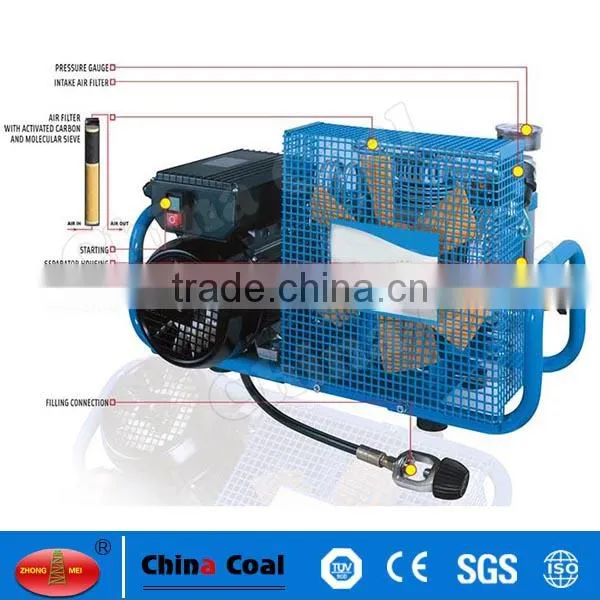

Product Structure:
Optional gasoline engine, three-phase, single-phase electric drive motor, V belt drive
Four cylinder level 4 high-pressure compressor
Stainless steel cooler between every level
Installed in the 400 bar high pressure on the compressor pressure gauge
1.2 meters high pressure air tube, joints according to the needs of you
Stainless steel fan cover
Two oil-water separator, two drain valve (optional automatic decontamination)
Activated carbon molecular sieve filtration system
To set pressure automatic stop, prevent the relief valve frequent rev. Jump, ensure safety and security
MCH-6 300bar air compressor for breathing air/blue frame Main Parameter
Charging rate: 100 L/min - 6 m³ /h - 3, 5 CFM
Filling time cylinder 10 L - 0-200 Bar: 20 min
Working pressure: 225 Bar / 3300 Psi - 300 Bar / 4300 Psi
Driven by: Three/Single-phase electric motor
Power: 3 Kw
Full load Amp: 11, 5 A (230 V - 50/60Hz) 6, 7 A (400 V - 50/60Hz)
Dimensions: Height 35cm/13.7", width 65cm/25.5", depth 39cm/15.3"
Dry weight: 39 Kg / 85 lbs
Noise pressure: 83 dB
Number of stages and cylinders: 4
Lubricating oil capacity: 300 CC (0, 3 L) / 10 FL. OZ.
Lubricant: ANDEROL 750
Frame: Powder coated steel
Oil/mosture separator: After last stage
Filtration: Filter cartridge activated carbon and molecular sieve
Safety valve: On the separator housing
Interstage coolers and after coolers: Stainless steel
Suction filter: 2 micron paper - 25 micron polyester
Breathing air: EN 12021 CGA E
MCH-6/ET STANDARD
Main Technical Parameters:
Model | MCH-6/ET STANDARD |
Charging Rate | 100L/Min-6m3/h-3.5CBM |
Filling Time Pressure
| 6.8L 0-300Bar/20Min 10L 0-200Bar/20Min |
Working Pressure | 225Bar/3200Psi 300Bar/4700Psi |
Driven By | Three-Phase Electric Motor
|
Power | 3KW |
Dimensions | Height: 35cm Width: 65cm Depth: 39cm 35*65*39cm |
Weight | 39kg |
Noise Pressure | 83 db |
No. Of Stages and Cylinders | 4
|
Lubricating Oil Capacity
| 300cc (0.3L) 300ml |
Lubricant
| Coltri Oil CE 750 Coltri Oil CE 750 |
Frame
| Powder Coated Steel
|
Oil/Moisture Separator | After Last Stage
|
Filtration | Filter Cartridge Activated Carbon and Molecule
|
Full Load Amp | 11.5A(230V-50/60 HZ) 6.7A(400V-50/60 HZ |
Interstage Coolers and After Coolers | Stainless Steel
|
Breathing Air | EN 12021 CGA E
|
Suction Filter | 2 Micro Paper--25 Micro Polyester |

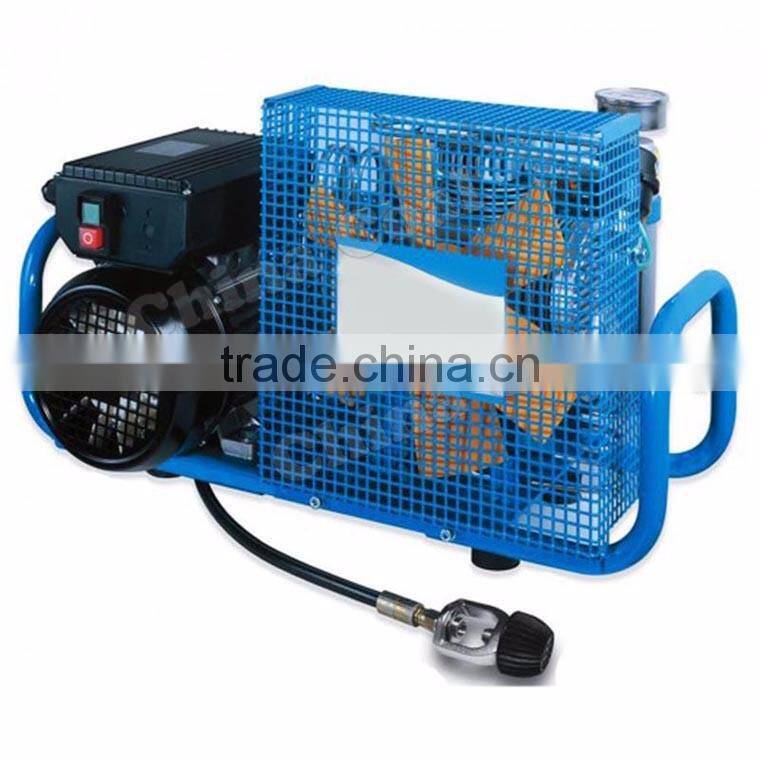

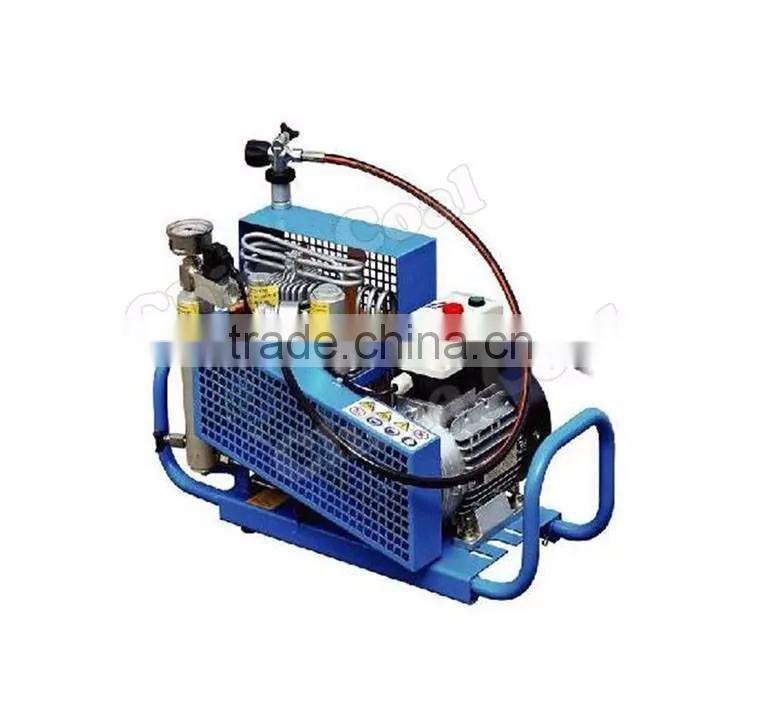

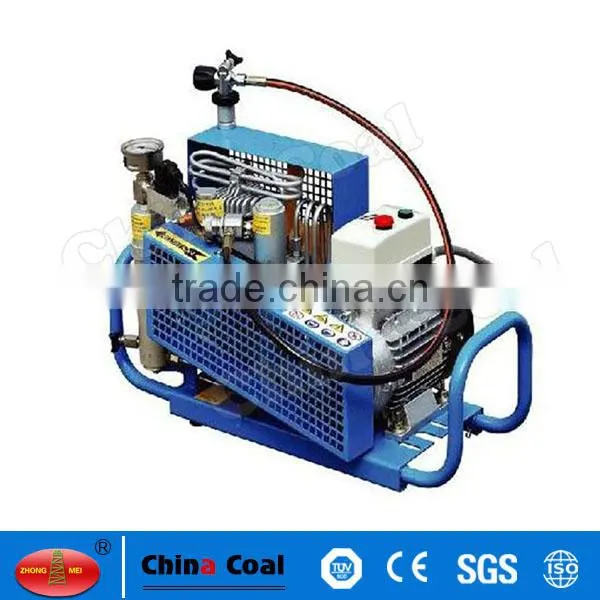

MCH-6 300bar air compressor for breathing air/blue frame Figure Photos
