Specifications
Breathing Air Compressor1) High pressure
2) Electricity saving
3) Certificate: CE
4) Low noisy
Product Introduction

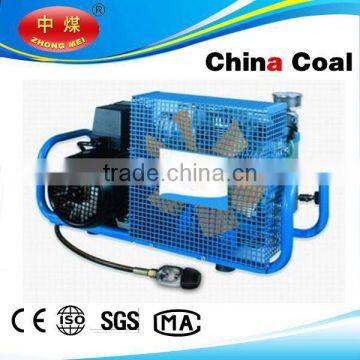

Product: MCH-6 MCH-6 High Pressure Breathing Air Compressor for fire fighting
Company: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Main Parameter
MCH6/ET
Charging rate: | 100 L/min; 6 m³/h; 3.5 CFM |
Filling time cylinder: | 6.8L 0-300bar/20.4 min 12L 0-200bar/24 min |
Working pressure: | 225 Bar / 3300 Psi; 300 Bar - 4300 Psi |
Full load Amp: | 6.7A(400V-50/60Hz) |
Driven by: | Three-phase electric motor 380V |
Power: | 3Kw |
Dimensions: | height 35 cm , width 65 cm ,depth 39 cm |
Dry weight: | 39 Kg / 85 lbs |
Noise (ISO 3746): | 83 dB |
Number of stages: | 4 |
Number of cylinders: | 4 |
Lubricating oil capacity: | 300 cc (0.3L) / 10 FL.OZ |
Lubricant: | CE 750 |
Oil/mosture separator: | After last stage |
Filtration: | Filter cartridge activated carbon and molecular sieve |
Suction filter: | 2 micron paper - 25 micron polyester |
Breathing air: | EN 12021 CGA E |
Quick Details
Condition: | New | Type: | Piston | Configuration: | Portable |
Power Source: | AC Power | Lubrication Style: | Lubricated | Mute: | No |
Place of Origin: | Shanghai China (Mainland) | Brand Name: | Haolin | Model Number: | MCH-6/ET |
Voltage: | 220V/380V | Dimension(L*W*H): | 35cm*65cm*39cm | Weight: | 39KG |
Certification: | CE,ISO | Warranty: | 1 year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Colour: | blue | Material: | stainless steel frame | Driven by: | Three-phase electric motor |
Figure Photos
