China leading manufacture direct selling mining shake table with ISO;CE;BV Approved

Specifications

1. Low power consumption
2. Guanranteed quality with CE/ISO
3. Best performance&easy operation
4. High recovery rate

Applications of shaking table:
Shaking table is one of the important equipment of beneficiation. It is widely used in the selection of tungsten, sn, molybdenum, plumbum, zinc, niobium and other rare metals and precious metal ores, but also can be used for the selection of iron, manganese ore and coal.


Performance features of shaking table:

• High recovery ratio;
• High concentration ratio;
• Easy installation;
• Simple operation;
• Deck constructed of fiber glass;
• Seven different decks to choose;
• Long working life;
• Adjustable stroke length and speed.

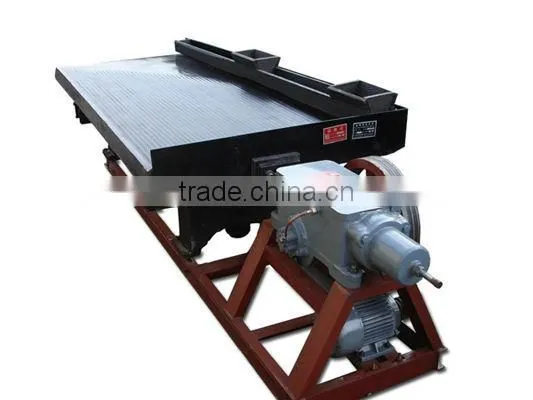

Structures of shaking table:
The device is mainly made up of the bedside, motor,adjustable slope device, bed, mine shafts, tank, reflex bar and lubrication system ,8 parts.



Technical Parameters Of shaking table

Name		Coarse Sand Bed Surface	Fine Sand Bed Surface	Slime Bed Surface
Bed Surface Size	Length (mm)	4450	4450	4450
	Drive End Width (mm)	1855	1855	1855
	Concentrate End Width(mm)	1546	1546	1546
Maximum Feed Size (mm)		2	0.5	0.15
Feed Quantity (t/h)		30-60	10-20	15-25
Feed Concentration (%)		25-30	20-25	15-25
Route (mm)		16-22	11-16	8-16
Frequency ( t/s)		45-48	48-53	50-57
Bed Surface Transverse Slope(degree)		2.5-4.5	1.5-3.5	1-2
Separation Area (m2)		7.6	7.6	7.6
Bed Surface Section Shape		rectangle	sawtooth	triangle
Electric Power (kw)		1.1	1.1	1.1
Drive Type		Eccentric connecting rod mechanism
