New national standard high efficient lab shaker table shaking table

Specifications

1.Feacture:less investment,good profit,etc
2.Quality:ISO9001:2008
3.Large handling capacity
4.Service:perfect&whole life

Application of shaking table

Shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.

Our company has long history of table concentrator production; we provide variety of table concentrators with high processing capacity, high recovery rate and high enrichment ratio.



Feactures of shaking table

· High recovery ratio;

· High concentration ratio;

· Easy installation;

· Simple operation;

· Deck constructed of fiber glass;

· Seven different decks to choose;

· Long working life;

· Adjustable stroke length and speed.

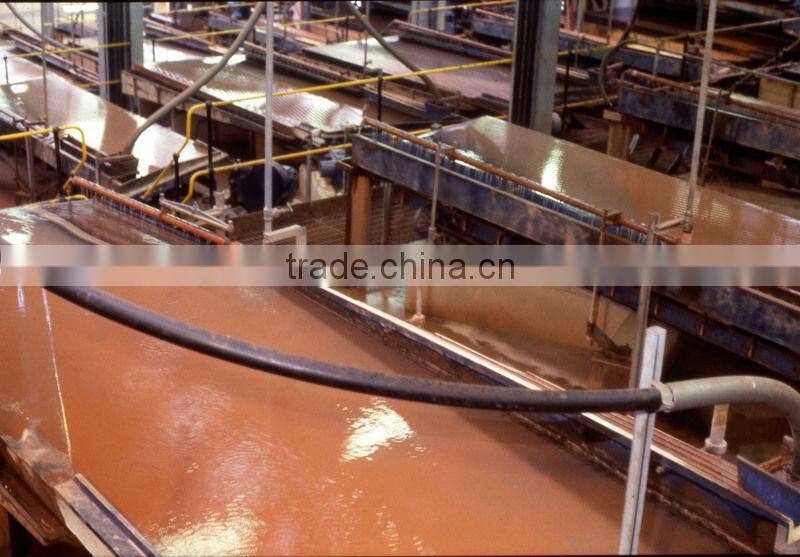

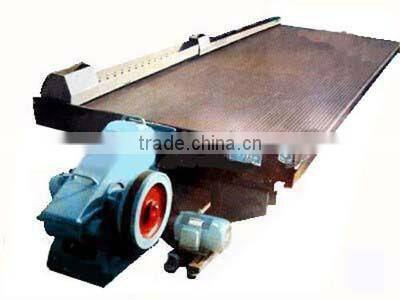

Pictures of shaking table



Technical Parameters Of shaking table

Name		Coarse Sand Bed Surface	Fine Sand Bed Surface	Slime Bed Surface
Bed Surface Size	Length (mm)	4450	4450	4450
	Drive End Width (mm)	1855	1855	1855
	Concentrate End Width(mm)	1546	1546	1546
Maximum Feed Size (mm)		2	0.5	0.15
Feed Quantity (t/h)		30-60	10-20	15-25
Feed Concentration (%)		25-30	20-25	15-25
Route (mm)		16-22	11-16	8-16
Frequency ( t/s)		45-48	48-53	50-57
Bed Surface Transverse Slope(degree)		2.5-4.5	1.5-3.5	1-2
Separation Area (m2)		7.6	7.6	7.6
Bed Surface Section Shape		rectangle	sawtooth	triangle
Electric Power (kw)		1.1	1.1	1.1
Drive Type		Eccentric connecting rod mechanism

About us

Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a state level research.Since established in 1980,We have passed ISO9001:2008 quality system authentication and CE certificate.



Before customers' purchase, we will send our engineers to customers' site to design the best flow chart; after purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
