Specifications
1. Advanced technology2. Guanranteed quality with CE/ISO
3. High enrichment ratio
4. Deck constructed of fiber glass
Application of separating shaking tables
Shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
Our company has long history of table concentrator production; we provide variety of table concentrators with high processing capacity, high recovery rate and high enrichment ratio.
Structure of separating shaking tables
Shaking table mainly by the head of a bed, the electric motor, the slope, the surface of bed, the ore trough, the water though, comes the note in reply as well as the lubrication system and so on eight parts is composed mainly by the head of a bed, the electric motor, the slope, the surface of bed, the ore trough, the water though, comes the note in reply as well as the lubrication system and so on eight parts is composed.
Feactures of separating shaking tables
· High recovery ratio;
· High concentration ratio;
· Easy installation;
· Simple operation;
· Deck constructed of fiber glass;
· Seven different decks to choose;
· Long working life;
· Adjustable stroke length and speed.

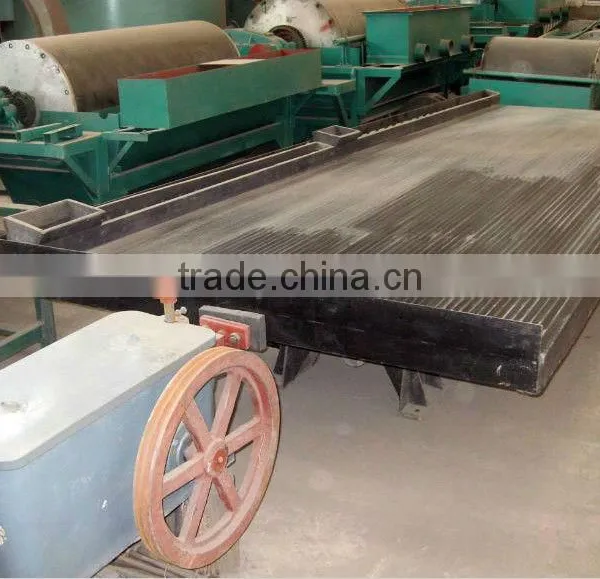

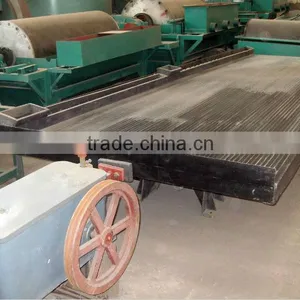

Pictures of separating shaking tables
Technical Parameters Of concentrator shaking tables
| Name | Coarse Sand Bed Surface | Fine Sand Bed Surface | Slime Bed Surface | |
| Bed Surface Size | Length (mm) | 4450 | 4450 | 4450 |
| Drive End Width (mm) | 1855 | 1855 | 1855 | |
| Concentrate End Width(mm) | 1546 | 1546 | 1546 | |
| Maximum Feed Size (mm) | 2 | 0.5 | 0.15 | |
| Feed Quantity (t/h) | 30-60 | 10-20 | 15-25 | |
| Feed Concentration (%) | 25-30 | 20-25 | 15-25 | |
| Route (mm) | 16-22 | 11-16 | 8-16 | |
| Frequency ( t/s) | 45-48 | 48-53 | 50-57 | |
| Bed Surface Transverse Slope(degree) | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| Separation Area (m2) | 7.6 | 7.6 | 7.6 | |
| Bed Surface Section Shape | rectangle | sawtooth | triangle | |
| Electric Power (kw) | 1.1 | 1.1 | 1.1 | |
| Drive Type | Eccentric connecting rod mechanism | |||
About us
Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a state level research.Since established in 1980,We have passed ISO9001:2008 quality system authentication and CE certificate.
Before customers' purchase, we will send our engineers to customers' site to design the best flow chart; after purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
