1.Application of magnetic separator
The Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force.
Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.
The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm.
Wet Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix
2.Advantages of magnetic separator
1) Short magnetic circuit,
2) little magnetic flux leakage
3) high magnetic intensity
4) low energy consumption
5) fine beneficiating results

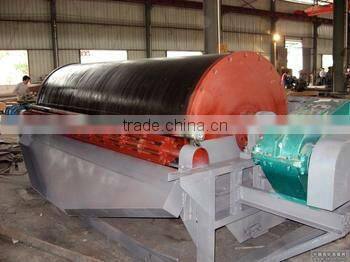

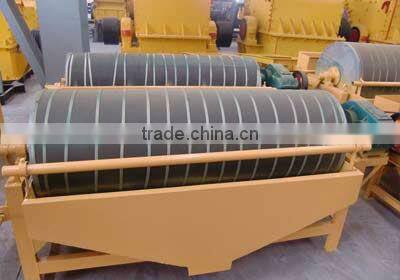

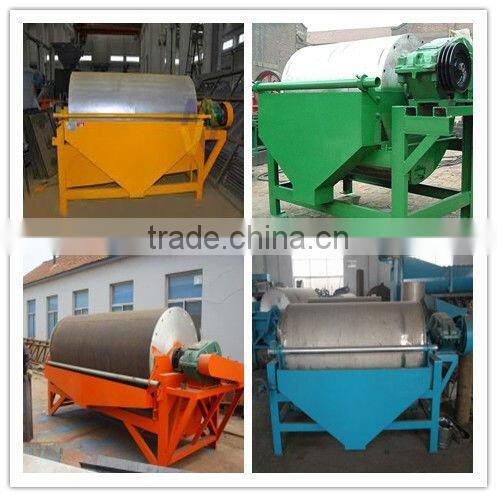

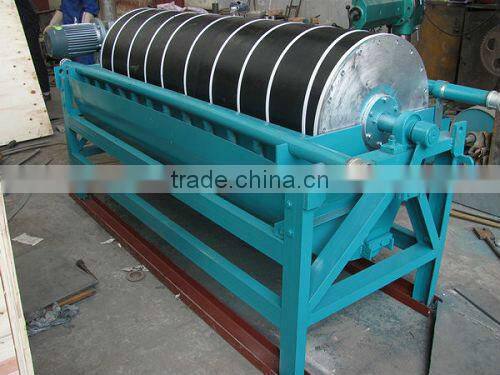

3.Magnetic separator's sketch
4.Parameters of magnetic separator
| Model | D*L(mm) | Magnetic Field Strength(mT) | Yield(m3/h) | Rotated Speed(r/min) | Motor Power(Kw) | Weight(Kg) |
| CT12/30N | 1200*3000 | 200 | 260-350 | 19 | 7.5 | 6837 |
| CT12/27N | 1200*2700 | 200 | 230-310 | 19 | 7.5 | 6750 |
| CT12/24N | 1200*2400 | 200 | 200-275 | 19 | 7.5 | 6270 |
| CT10.5/30N | 1200*3000 | 200 | 220-300 | 21 | 5.5 | 6900 |
| CT10.5/27N | 1050*3000 | 200 | 190-270 | 21 | 5.5 | 6350 |
| CT10.5/24N | 1050*2400 | 200 | 170-240 | 21 | 5.5 | 5760 |
| CT10.5/21N | 1050*2100 | 200 | 150-210 | 21 | 5.5 | 5177 |
| CT10.5/18N | 1050*2100 | 200 | 130-180 | 21 | 5.5 | 4560 |
5.About us
Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a state level research.Since established in 1980,We have passed ISO9001:2008 quality system authentication and CE certificate.
Before customers' purchase, we will send our engineers to customers' site to design the best flow chart; after purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
