Specifications
1.High efficiency2.Low energy consumption
3.ISO;CE;BV Approved
4.Fine beneficiating results
5.Competitive price
Application of magnetic separator
Wet Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix
The dry magnetic separator is a piece of mineral processing equipment used to recover ferromagnetic materials. It is fit for processing fine, feebly magnetic materials, such as magnetite, pyrrhotite, ilmenite and other materials. In recent years, dry magnetic separator can also be used in removing the magnetic minerals from coal, non-metallic minerals, building materials and more.jiangtai iron ore dry magnetic separator is a kind of permanent magnetic drum magnetic separator. Three types of tanks including concurrent flow tank, backflow tank and semi-backflow tank are available to suit different materials and process.

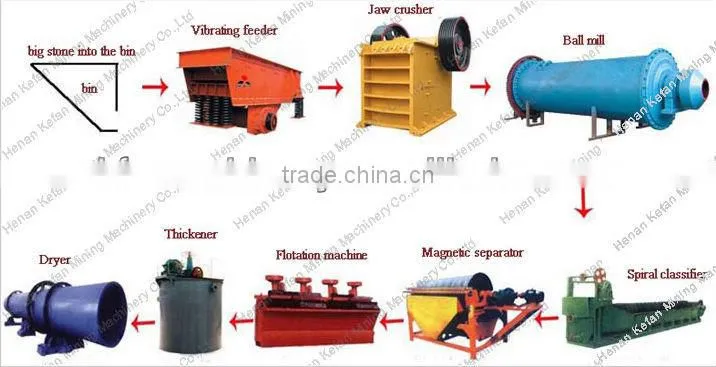

Magnetic separator sketch
Pictures of magetic separator
Parameters of wet magnetic separator
| Model | D*L(mm) | Magnetic Field Strength(mT) | Yield(m3/h) | Rotated Speed(r/min) | Motor Power(Kw) | Weight(Kg) |
| CT12/30N | 1200*3000 | 200 | 260-350 | 19 | 7.5 | 6837 |
| CT12/27N | 1200*2700 | 200 | 230-310 | 19 | 7.5 | 6750 |
| CT12/24N | 1200*2400 | 200 | 200-275 | 19 | 7.5 | 6270 |
| CT10.5/30N | 1200*3000 | 200 | 220-300 | 21 | 5.5 | 6900 |
| CT10.5/27N | 1050*3000 | 200 | 190-270 | 21 | 5.5 | 6350 |
| CT10.5/24N | 1050*2400 | 200 | 170-240 | 21 | 5.5 | 5760 |
| CT10.5/21N | 1050*2100 | 200 | 150-210 | 21 | 5.5 | 5177 |
| CT10.5/18N | 1050*2100 | 200 | 130-180 | 21 | 5.5 | 4560 |
Parameters of dry magnetic separator
| Model | Drum Diameter(mm) | Length(mm) | Cylinder Speed(r/min) | Feed Particle Size(mm) | Handling Capacity( t/h) | Power(kw) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
About us
Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a state level research.Since established in 1980,We have passed ISO9001:2008 quality system authentication and CE certificate.
Before customers' purchase, we will send our engineers to customers' site to design the best flow chart; after purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
