Specifications
1.High efficiency2.Low energy consumption
3.ISO;CE;BV Approved
4.Fine beneficiating results
5.Competitive price
Application of magnetic separator
The Magnetic Separators are available in cyclic design with vessel whose diameters are smaller than 3mm. Magnetic Separator is a kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephrite. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Magnetic separator are applied for mining, coal preparation plant and other occasions for iron, iron removal operations.The magnetic field distribution characteristics of this series devices is good for the recovery effect of fine powder, make the recovery rate of the magnetic minerals greatly improve .
Advantages of magnetic separator
1). It can improve mineral grade, reduce process under load.
2). It is able to sort the fine ore and return the inferior for re-burning.
3). It will remove impurities, thus improving the quality.
4). It is applicable in a wide range of industries.

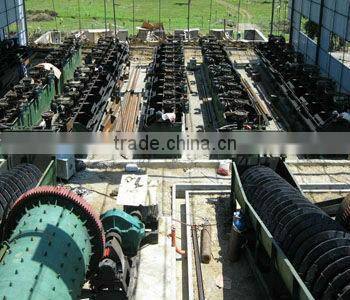

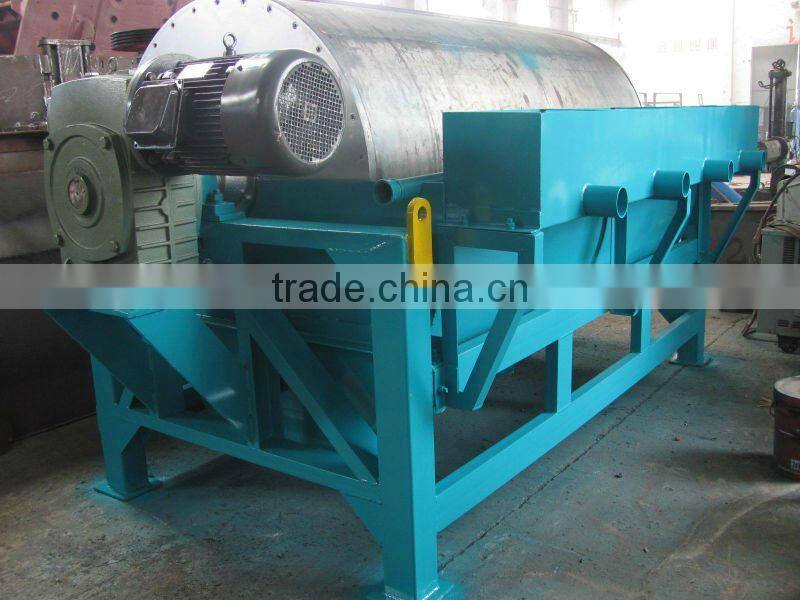

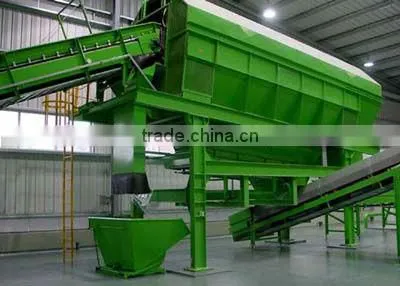

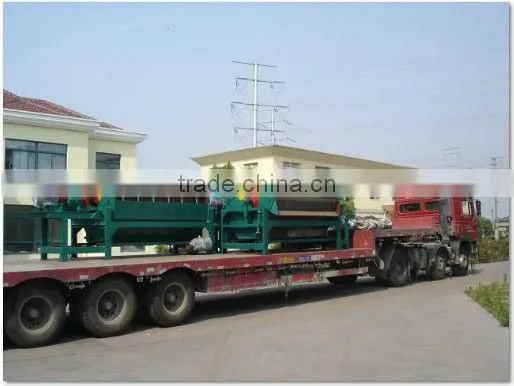

Pictures:
Parameters of magnetic separator
Model | Magnetic field strength (oe) | Capacity (t/h) | Power (kw) | Weight (kg) |
CTB600X900 | 1450 | 8-15 | 1.1 | 910 |
CTB600X1800 | 1500 | 15-25 | 2.2 | 1340 |
CTB750X1800 | 1550 | 30-45 | 3 | 2050 |
CTB900X1800 | 1650 | 35-60 | 4 | 3000 |
CTB1050X2400 | 1650 | 60-95 | 5.5 | 5020 |
CTB1200X3000 | 1650 | 80-150 | 7.5 | 7800 |
CTB1500X3000 | 1650 | 120-200 | 11 | 9600 |
About us
Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a state level research.Since established in 1980,We have passed ISO9001:2008 quality system authentication and CE certificate.
Before customers' purchase, we will send our engineers to customers' site to design the best flow chart; after purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
