Slotting Machine B5032
1.Max slotting length:320mm
2.Max dimension of work piece:600x320mm
3.Max.weight of work piece:500kgs
This machine is used to process splines, formed surfaces, for single or small batch production workshop is the most suitable for.

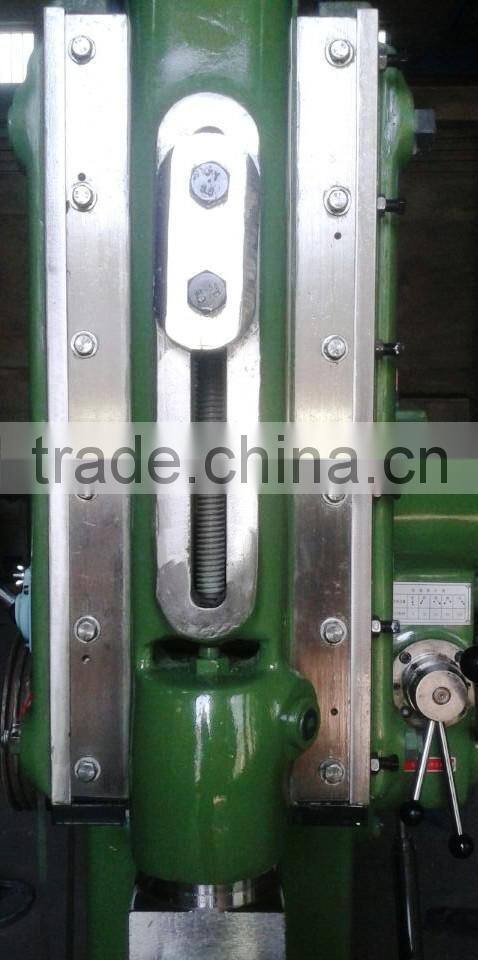

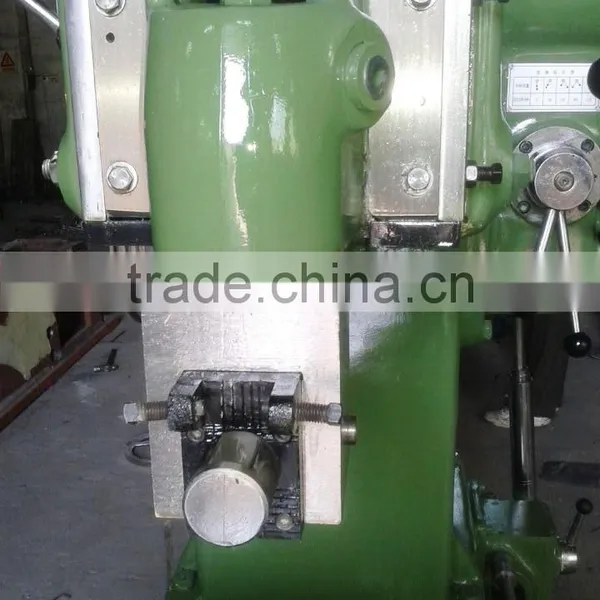

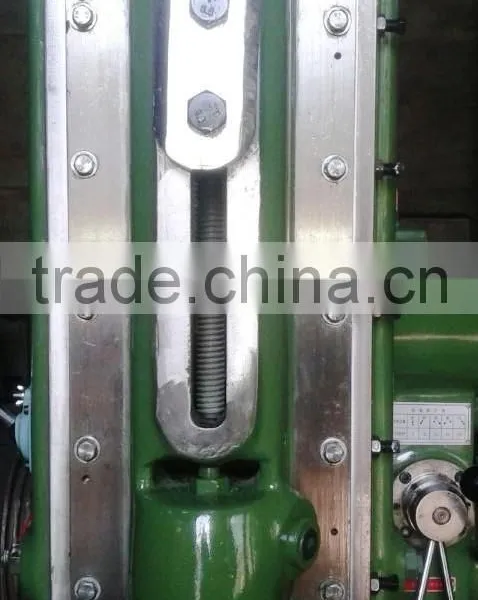

Rotating mechanism is the main variable crank gear rotary motion into the reciprocating motion of the ram, the table can be vertical, horizontal and rotary, automatic and manual feed, can realize the fast moving working table, in case of failure will automatically stop feeding.
standardization, universalization, serialization, high degree of automation, reasonable layout, compact structure, harmony. Beautiful appearance, convenient repair.
Machine using the three-phase AC power supply, a voltage of 380 volts, 50 Hz power frequency. For other conditions, the user after consultations, available on special order.
Model | B5032 |
Max.slotting length | 320mm |
Max.dimension of work piece (LXH) | 600x320mm |
Max.weight of work piece | 500kg |
Max.Cutting force | 750kg |
No.of ram strokes per minute | 20,32,50,80 |
Vertical adjustment of ram | 315m |
Inclination of ram | 0-8° |
Distance between tool holding surface and column front | 600mm |
Max.tool shank size (WXH) | 25x40mm |

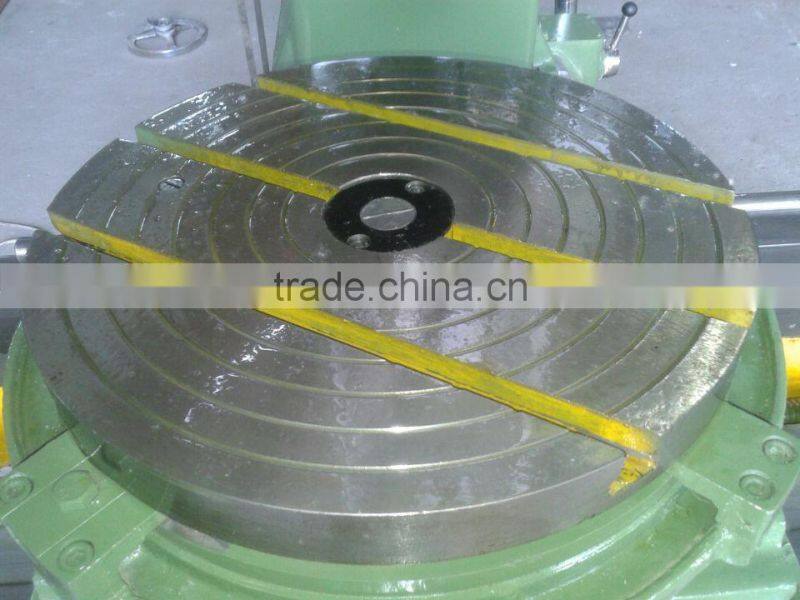

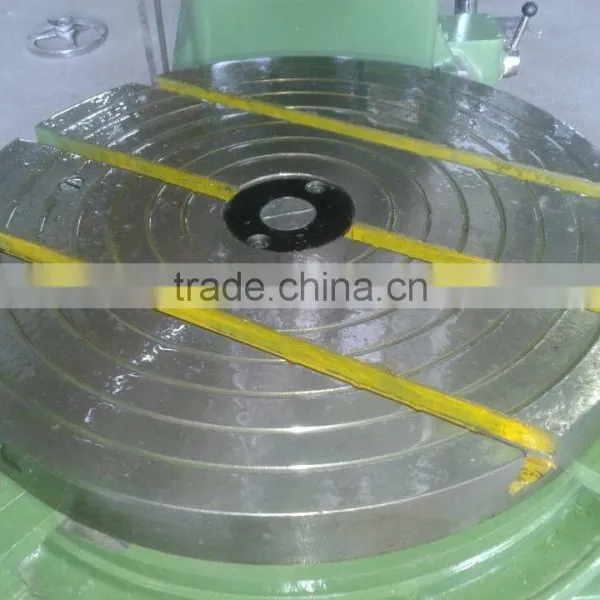

Table diameter | 630mm |
Distance between table surface and low end of ram | 490mm |
Max.longitudinal travel of table | 630mm |
Max.Cross travel of table | 560mm |
Range of of table longitudinal and cross power feeds | 0.08-1.21mm |
Range of table rotary power feeds | 0.052°-0.783° |
Power of main drive motor | 4kW /960RPM |
Over dimension | 2261x1496x2245mm |
Weight | 3000kgs |
Packing List | |||
No. | Item | Specs. | Qty |
1 | Machine | B5032 | 1 pc |
2 | inner hexagonal wrench | 5,6,8,10 | Each for 1 pc |
3 | Stay wrench | S17-19 S22-24 | 1 pc |
4 | Working lamp |
| Fix in the machine |
5 | belt |
| 1set 3 pcs |
6 | oil can |
| 1 pc |
7 | Power Distribution Cabinet |
| 1pc fix in the machine |
8 | User Manual |
| 1 |
9 | product certification |
| 1 |
10 | Packing list |
| 1 |
Optional accessories | |||
| Item Name | Usage | Price |
1 | three jaw chuck | A mechanical device used to clamp the work piece on machine tool. The use of uniform radial movement on the chuck body movable jaw, the machine tool accessories workpiece clamping and positioning. | Please advise the diameter you need. |
2 | Knife inserted rod | Mainly processing blind hole keyway, inner hole, inner six angle, and various nonstandard toothed spline teeth, etc. | Please advise the size and quantity you need. |
